C6c 2K
| Specifications | |
|---|---|
| Model | CS-C6c-R100-1H3WF |
| Camera | |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Shutter Speed | Self-adaptive shutter |
| Lens | 4mm @ F2.0, viewing angle: 100° (Horizontal), 84° (Vertical), 46° (Diagonal) |
| PT Angle | Pan: 340°, Tilt: 130° |
| Minimum Illumination | 0.51 Lux @ (F2.0, AGC ON) with IR |
| Lens Mount | M12 |
| Day & Night | IR-cut filter with auto switch |
| DNR | 3D DNR |
| WDR | Digital WDR |
| BLC | Supports |
| Night Vision | Up to 10 m |
| Video & Audio | |
| Max. Resolution | 2304 × 1296 |
| Frame Rate | Max. 25 fps; Self-Adaptive during network transmission |
| Video Compression | H.264/H.265 |
| Video Bit Rate | HD; Standard. Adaptive bit rate. |
| Audio Bit Rate | Self-Adaptive |
| Max. Bitrate | 2 Mbps |
| Network | |
| Wi-Fi Standard | IEEE 802.11 b, 802.11 g, 802.11 n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20 MHz |
| Security | 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK |
| Transmission Rate | 11b: 11 Mbps, 11g: 54 Mbps, 11n: 72 Mbps |
| Wi-Fi Pairing | AP paring |
| Protocol | EZVIZ Cloud Proprietary Protocol |
| Interface Protocol | EZVIZ Cloud Proprietary Protocol |
| Wired Network | Not Support |
| Function | |
| Smart Alarm | Human Shape Detection, Image Change Detection |
| Customized Alert Area | Supports |
| Two-Way Talk | Supports (Two Mic) |
| General Function | Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark |
| Storage | |
| Local Storage | Micro SD card slot (Max. 512G) |
| Cloud Storage | EZVIZ CloudPlay storage |
| General | |
| Operating Conditions | -10° to 45° C (14° to 113° F) Humidity 95% or less (non-condensing) |
| Power Supply | DC 5V/1A (Type-C) |
| Power Consumption | MAX. 5W |
| Product Dimensions | 100 × 100 × 96.5 mm |
| Packaging Dimensions | 115.5 × 116 × 160 mm |
| Weight | Net weight: 255 g (8.99 oz) With package: 487 g (17.18 oz) |
| In the box | |
| In the box | - Camera |
| - Power Adapter | |
| - Power Cable | |
| - Drill Template | |
| - Mounting Plate | |
| - EZVIZ Screw Kit | |
| - Regulatory Information | |
| - Quick Start Guide | |
| Certifications | |
| Certifications | CE (EMC / LVD / RED / ROHS) / UKCA / REACH SVHC / WEEE / FCC / UL |
C6c 4K
| Specifications | |
|---|---|
| Model | CS-C6c-R100-8G8WF |
| Camera | |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Shutter Speed | Self-adaptive shutter |
| Lens | 4mm @ F1.6, viewing angle: 106° (Horizontal), 90° (Vertical), 48° (Diagonal) |
| PT Angle | Pan: 340°, Tilt: 130° |
| Minimum Illumination | 0.51 Lux @ (F1.6, AGC ON) with IR |
| Lens Mount | M12 |
| Day & Night | IR-cut filter with auto switch |
| DNR | 3D DNR |
| WDR | True WDR |
| BLC | Supports |
| Night Vision | 10m & Smart Color Night Vision 6m |
| Video & Audio | |
| Max. Resolution | 3840 × 2160 |
| Frame Rate | Self-Adaptive during network transmission |
| Video Compression | H.264/H.265 |
| Video Bit Rate | HD; Standard. Adaptive bit rate. |
| Audio Bit Rate | Self-Adaptive |
| Max. Bitrate | 4 Mbps |
| Network | |
| Wi-Fi Standard | IEEE802.11a, IEEE802.11b, 802.11g, 802.11n, 802.11ac 802.11ax |
| Frequency Range | 2.4 ~ 2.4835 GHz, 5.17~5.25 GHz, 5.735~5.835 GHz |
| Channel Bandwidth | Supports 20 MHz |
| Security | WPA-PSK/WPA2-PSK/ WPA3-Personal |
| Transmission Rate | 11b: 11 Mbps, 11g: 54 Mbps, 11n: 72 Mbps |
| Wi-Fi Pairing | AP paring |
| Protocol | EZVIZ Cloud Proprietary Protocol |
| Interface Protocol | EZVIZ Cloud Proprietary Protocol |
| Wired Network | No |
| Function | |
| Smart Alarm | AI-Powered Human Shape & Pet Detection |
| Customized Alert Area | Supports |
| Two-Way Talk | Supports (Two Mic) |
| General Function | Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark |
| Storage | |
| Local Storage | Micro SD card slot (Max. 512G) |
| Cloud Storage | EZVIZ CloudPlay storage |
| General | |
| Operating Conditions | -10° to 45° C (14° to 113° F) Humidity 95% or less (non-condensing) |
| Power Supply | DC 5V/2A (Type-C) |
| Power Consumption | MAX. 8W |
| Product Dimensions | 100 × 100 × 96.5 mm |
| Packaging Dimensions | 115.5 × 116 × 160 mm |
| Weight | Product: 290g With Package: 604g |
| In the box | |
| In the box | - Camera |
| - Power Adapter | |
| - Power Cable | |
| - Drill Template | |
| - Mounting Plate | |
| - EZVIZ Screw Kit | |
| - Regulatory Information | |
| - Quick Start Guide | |
| Certifications | |
| Certifications | CE / RoHS / WEEE / REACH / UL |
C8c 4K
| Specifications | |
|---|---|
| Model | CS-C8c (4K) |
| Camera | |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Shutter Speed | Self-adaptive shutter |
| Lens | 4mm@ F1.6, viewing angle: 53° (Vertical), 87° (Horizontal), 104° (Diagonal) |
| PT Angle | Pan: 350°, Tilt: 80° |
| Minimum Illumination | 0.5 Lux @(F1.6, AGC ON), 0 Lux with IR (*data is obtained from EZVIZ laboratories) |
| Lens Mount | M12 |
| Day & Night | IR-cut filter with auto switch |
| DNR | 3D DNR |
| WDR | Digital WDR |
| Black & White Night | 30m / 98ft |
| Video & Audio | |
| Max. Resolution | 3840 × 2160 |
| Frame Rate | Self-Adaptive during network transmission |
| Video Compression | H.265 / H.264 |
| H.265 Type | Main Profile |
| Video Bit Rate | Ultra-HD; Hi-Def; Standard. Adaptive bit rate. |
| Audio Bit Rate | Self-Adaptive |
| Network | |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20 MHz |
| Security | WPA-PSK / WPA2-PSK |
| Transmission Rate | 11b: 11Mbps, 11g: 54Mbps,11n: 72Mbps |
| Wi-Fi Pairing | AP pairing |
| Protocol | EZVIZ Cloud Proprietary Protocol |
| Interface Protocol | EZVIZ Cloud Proprietary Protocol |
| Wired Network | RJ45 × 1 (10M/100M Adaptive Ethernet Port) |
| Storage | |
| Local Storage | MicroSD Card Slot (Up to 512GB) |
| Cloud Storage | EZVIZ Cloud Storage (Subscription required) |
| Function | |
| Smart Alarm | AI-Powered Human / Vehicle Shape Detection /Motion Detection |
| Auto Tracking | Supports |
| Customized Alert Area | Supports |
| Two-way Talk | Supports |
| Preset Locations | Supports |
| General Function | Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark |
| General | |
| Operating Conditions | -30°C to 50°C (-22 °F to 122 °F), humidity 95% or less (non-condensing) |
| IP Grade | IP65 |
| Power Supply | DC 12V / 1A |
| Power Consumption | MAX. 12W |
| Dimensions | 102.27 × 128.61 × 147.05 mm (4.03 × 5.06 × 5.79 inch) |
| Packaging Dimensions | 140 × 140 × 192 mm (5.51 × 5.51 × 7.56 inch) |
| Weight | Net Weight: 506 g (17.85 oz) With Package: 816 g(28.78 oz) |
| In the box | |
| In the box | - C8c 4K Camera |
| - Drill Template | |
| - Screw Kit | |
| - Waterproof Kit | |
| - Power Adapter | |
| - Regulatory Information | |
| - Quick Start Guide | |
| Certifications | |
| Certifications | CE / UL / WEEE / RoHS / REACH |
CP3 2K
| Specifications | |
|---|---|
| Model | CS-CP3-R101-2D3WPB |
| Doorbell Camera Parameters | |
| Image Sensor | 1/2.8" Progressive Scan CMOS (Supports low light sensitivity) |
| Lens | 2.3 mm @ F2.2, Viewing angle: 162° (Diagonal) |
| Day / Night Switch | IR-cut filter with auto-switching |
| Video Parameters | |
| Max. Resolution | 3MP |
| DNR | 2D/3D DNR |
| Video Compression | H.264/H.265 |
| Frame Rate | Max: 15fps; Self-Adaptive During Network Transmission |
| PIR Sensor | |
| Sensing Angle | 100° |
| Sending Distance | Max. 2m (1m/1.5m/2m Sensitivity Adjustable) |
| Sensitivity | User Adjustable (High, Medium and Low Sensitivity) |
| Interface | |
| Audio Input | Built-in high sensitivity microphone |
| Audio Output | Build-in high-power speaker |
| Reset Button | Yes |
| Network Parameters | |
| Protocol | EZVIZ cloud proprietary protocol |
| Interface Protocol | EZVIZ cloud proprietary protocol |
| Functions | |
| Intelligent Alarm | Smart Human Motion Detection + PIR Detection |
| Tamper Alarm | Sound and light Anti-Tamper Alarm (Supports sending alerts to the smartphone) |
| Video Intercom | Long-distance video two-way talk |
| Wi-Fi Parameters | |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20MHz |
| Security | 64/128-bit WEP,WPA/WPA2, WPA-PSK/WPA2-PSK, WPS |
| Transmission Rate | 11b: 11Mbps,11g: 54Mbps,11n: 150Mbps |
| Doorbell | |
| Operation Conditions | -10°C to 45°C, Humidity 95% or less (non-condensing) |
| Weight | 194 g |
| Size | 149 × 57 × 31.8 mm |
| Battery Capacity | 5,000 mAh Rechargeable Lithium Battery |
| Chime | |
| Size | 101 × 64.2 × 32 mm |
| Power Supply | AC 110 ~ 240V |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
| Audio Output | 72dB within 1 meter |
| Storage | Supports microSD card (Up to 256 GB) |
| Weight | 83.6 g |
| In the box | |
| In the box | - CP3 Video Doorbell |
| - Chime | |
| - Power Cable | |
| - Drill Template | |
| - Mounting Plate | |
| - Inclined Mounting Plate × 2 | |
| - Screwdriver and Screw Kit × 2 | |
| - Foam Sticker | |
| - Plate Foam | |
| - Pin | |
| - U-Shaped Wire and Wire Connector × 3 | |
| - Installation Guide | |
| - Regulatory Information | |
| - Quick Start Guide | |
| Certifications | |
| Certifications | CE / WEEE / ROHS / REACH |
DB2-B Pro
| Specifications | |
|---|---|
| Model | CS-DB2-A0-2C5WPFBR—B |
| Camera | |
| Image Sensor | 1/2.7" Progressive Scan CMOS (Supports low light sensitivity) |
| Lens | 2.0 mm @ F2.0, viewing angle: 176° (Diagonal) |
| Day & Night | IR-cut filter with auto-switching |
| IR Range | Up to 5 m / 16 ft |
| Video & Audio | |
| Max. Resolution | 2544 × 1888 |
| DNR | 2D/3D DNR |
| Video Compression | H.265 / H.264 |
| Frame Rate | Max: 15fps; Self-Adaptive during network transmission |
| Audio Input | Built-in high-sensitivity microphone |
| Audio Output | Built-in high-power speaker |
| Network Parameters | |
| Protocol | EZVIZ Cloud Proprietary Protocol |
| Interface Protocol | EZVIZ Cloud Proprietary Protocol |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20 MHz |
| Security | 64/128-bit WEP,WPA/WPA2, WPA-PSK/WPA2-PSK |
| Transmission Rate | 11b: 11Mbps, 11g :54Mbps, 11n :150Mbps |
| Functions | |
| Detection | PIR Motion Detection, Smart Human Motion Detection |
| PIR Angle | 100° |
| PIR Distance | Up to 5 m / 16 ft |
| Sensitivity | Adjustable (High, Medium and Low Sensitivity) |
| Tamper Alarm | Sound and light anti-dismantling alarm |
| Two-way Talk | Supports |
| Power | |
| Power Supply | DC 5V (± 10%) 2A |
| Power Consumption | Max.2W |
| Battery Capacity | 5200 mAh rechargeable lithium battery |
| General | |
| Dimensions | 150 × 58 × 32 mm (5.91 × 2.28 × 1.24 inch) |
| Net Weight | 244 g (8.61 oz) |
| Weight (With Package) | 655 g (23.10 oz) |
| IP Grade | IP65 |
| Operation Conditions | -20°C to 50°C (-4°F to 122°F), humidity 95% or less (non-condensing) |
| Reset Button | Yes |
| Chime | |
| Dimensions | 101 × 64 × 32 mm (3.98 × 2.52 × 1.26 inch) |
| Power Supply | AC 110 ~ 240V |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
| Ringtone | Supports up to 20 options with adjustable volume |
| Audio Output | Built-in high-power speaker (Up to 72 dB in 1 meter) |
| Storage | Supports microSD card (Up to 256 GB) |
| Net Weight | 87 g (3.07 oz) |
| In the box | |
| In the box | - DB2-B Pro Video Doorbell |
| - Chime | |
| - Mounting Plates | |
| - Inclined Mounting Plates (2) | |
| - Screwdriver and Screw Kits (2) | |
| - Foam Sticker | |
| - Plate Foam | |
| - Drill Template | |
| - Pin | |
| - U-shaped Wire and Wire Connectors (3) | |
| - Power Cable | |
| - Quick Start Guide | |
| - Installation Guide | |
| - Regulatory Information | |
| Certifications | |
| Certifications | UL / CE / FCC / REACH / WEEE / RoHS |
DL06 Unlock your door right at your hand
| Specifications | |
|---|---|
| Model | CS-DL06-R100-WBCP-GR |
| Material and Specification | |
| Panel Material | Aluminum alloy |
| Panel Size | 331 × 40 × 25.8 mm |
| Color | Metallic grey |
| Lock Body Type | Lift-up lock body |
| Lock Cylinder | 2885 / 3585 / 4585 |
| Weatherproof | IP55 (front panel) |
| Emergency Charging | Type-C |
| Working Power | 1,450 mAh Rechargeable Lithium Battery |
| Technical Specification | |
| Unlocking Method | Fingerprint, passcode, proximity card, mechanical key, Bluetooth remote control，Bluetooth key via EZVIZ App, temporary codes, remote unlock |
| User Capacity | 50 pcs |
| Fingerprint Capacity | 50 pcs |
| Passcode Capacity | 50 pcs |
| Card Capacity | 50 pcs |
| Communication Methods | 2.4GHz Wi-Fi, Bluetooth |
| Temporary Access Codes | Supports |
| Anti-Peeping Codes | Supports, Max. 20 digits |
| Low Battery Warning | Supports |
| Privacy Mode | Supports |
| User Management | Supports |
| Real Time Notification | Supports |
| Anti-Test Locking | Supports, enter error 5 times within 5 min, locking 3 min. |
| Anti-Tamper Alarm | Supports |
| Remote Control | Supports |
| Supported Door Thickness | 30-120 mm |
| Working Temperature | -10°C~55°C |
| Operating Humidity | 10%~95% |
| In the box | |
| In the box | - DL06 Front Panel |
| - DL06 Rear Panel | |
| - Hole Templet | |
| - Lock Body | |
| - Standard Screw Bag | |
| - Lithium Battery | |
| - Mechanical Key × 2 | |
| - Square Rod | |
| - Proximity Card × 2 | |
| - Screwdriver | |
| - Regulatory Information | |
| - Quick Start Guide | |
| Certifications | |
| Certifications | CE (EMC / LVD / RED / ROHS) / REACH SVHC / WEEE |
E6
| Specifications | |
|---|---|
| Model | CS-E6-A0-8C5WF |
| Camera | |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Shutter Speed | Self-adaptive shutter |
| Lens | 4mm @ F2.0, viewing angle: 87° (Horizontal), 48° (Vertical), 103° (Diagonal) |
| PT Angle | Pan: 350°, Tilt: 75° |
| Minimum Illumination | 0.51 Lux @ (F2.0, AGC ON), 0 Lux with IR |
| Lens Mount | M12 |
| Day & Night | IR-cut filter with auto-switching |
| DNR | 3D DNR |
| WDR | WDR 80dB |
| BLC | Supports |
| Night Vision | Up to 10 m / 32.8 ft |
| Video & Audio | |
| Max. Resolution | 2880 × 1620 |
| Frame Rate | Self-Adaptive during network transmission |
| Video Compression | H.265 / H.264 |
| Video Bit Rate | Ultra-HD; HD; Standard. Adaptive bit rate. |
| Audio Bit Rate | Self-Adaptive |
| Max. Bitrate | 5 Mbps |
| Network | |
| Wi-Fi Standard | IEEE802.11a, 802.11b, 802.11g, 802.11n, 802.11ac |
| Frequency Range | 2.4G: 2400~2483.5 MHz 5G: 5170~5250 MHz，5735~5835 MHz |
| Channel Bandwidth | Supports 40 MHz |
| Security | WPA-PSK / WPA2-PSK |
| Transmission Rate | 11b 11Mbps, 11g 54Mbps, 11nHT20 MCS7, 11nHT40 MCS7; 11a 54Mbps, 11nHT20 MCS7, 11nHT40 MCS7 |
| Wi-Fi Pairing | AP pairing |
| Protocol | EZVIZ Cloud Proprietary Protocol |
| Interface Protocol | EZVIZ Cloud Proprietary Protocol |
| Wired Network | RJ45 × 1 (10M / 100M Adaptive Ethernet Port) |
| Storage | |
| Local Storage | Supports microSD card (Up to 512 GB) |
| Cloud Storage | Supports EZVIZ CloudPlay storage (Subscription required) |
| Function | |
| Smart Alarm | AI-Powered Human Shape Detection / Pet Detection / Gesture Recognition / Voice Activity Detection / Bark and Meow Detection |
| Two-Way Talk | Supports |
| General Function | Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark |
| General | |
| Operating Conditions | -10°C to 45°C ( 14°F to 113 °F ), humidity 95% or less (non-condensing) |
| Power Supply | DC 5V/2A |
| Power Consumption | Max. 8W |
| Dimensions | 95.8 × 95.8 × 90.6 mm (3.77 × 3.77 × 3.57 inch) |
| Packaging Dimensions | 116 × 116 × 164 mm (4.57 × 4.57 × 6.46 inch) |
| Weight | Net weight: 252 g (8.89 oz) With package: 513 g (1.13 oz) |
| In the box | |
| In the box | - E6 Camera |
| - Power Adapter | |
| - Power Cable | |
| - Drill Template | |
| - Mounting Plate | |
| - Regulatory Information | |
| - Quick Start Guide | |
| - HomeKit Setup Instruction | |
| Certifications | |
| UL / CE / RoHS / WEEE / REACH / FCC / UKCA | |

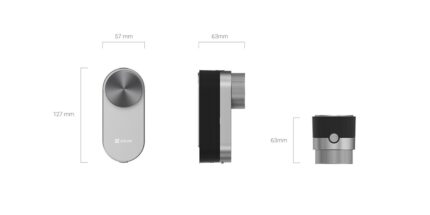

EZVIZ DL01 Pro Smart Lock
| Specifications | |
|---|---|
| Model | CS-DL01 Pro |
| Technical Specification | |
| Product Material | Aluminum |
| Dimensions | 127 × 57 × 63 mm |
| Communication | EZVIZ Connect ZigBee connection (With optional gateway A3) |
| Keyless Unlocking | Support |
| Bluetooth Key | Supports (Up to 50 groups) |
| Working Power | 4 AA Alkaline Batteries |
| Working Condition | 25℃~55℃, Humidity 10%~95% (Non-condensing) |
| APP Function | |
| Automatic Locking | Supports (With the included door sensor for debugging) |
| Lock Status Check | Supports |
| User Management | Supports |
| Message Notification | Supports |
| Door-Left-Open Alert | Supports |
| Privacy Mode | Supports (Enable via EZVIZ APP) |
| Low Battery Alert | Supports |
| Front Panel Function | |
| Fingerprint Unlock | Supports (Up to 50 groups, apply to CS-DL01BCP) |
| Password Unlock | Support (Up to 50 groups, 6-10 digits) |
| Virtual Passcode | Supports |
| Proximity Card Unlocking | Supports |
| Electric doorbell | Supports |
| Low Battery Alert | Supports |
| Anti-Tamper Alert | Supports |
| Anti-Test Alert | Supports (Enter 5 errors in 5 minutes, locked for 3 minutes) |
| With A3 Gateway (Optional) | |
| Temporary Passcode | Only supports with additional EZVIZ keypad |
| Remote Unlock | Supports |
| Real-Time Notification | Supports |
| EZVIZ Connect | Supports |
| In the box | |
| In the bo× | - Smart Lock DL01 Pro |
| - Mounting Plate ×2 | |
| - AA-sized Battery ×4 | |
| - Hexagon Wrench | |
| - Plus Driver | |
| - Screw Kit | |
| - Door Sensor | |
| - Double-sided Tape | |
| - Regulatory Information | |
| - Quick Start Guide | |
| Certifications | |
| Certifications | CE / RoHS / REACH / UL / WEEE |
EZVIZ Smart Lock DL05, 7-in-1 Keyless Door Lock, with Fingerprint Access – Secure Keyless Entry, Multiple Unlock Options, Instant Alerts, Weatherproof, Child Security, Privacy Control 5085
| Brand | EZVIZ |
| Lock type | Biometric |
| Item dimensions L x W x H | 6.7 x 2.7 x 36 centimeters |
| Recommended uses for product | Home, Residential Door |
| Style | modern |
| Colour | Grey 5085 |
| Included components | Lock body, lock cylinder, accessories, manual, batteries, RFID cards, keys |
| Control method | App |
| Connectivity protocol | Wi-Fi |
| Manufacturer | isvys |
EZVIZ Y2000 Smart Fingerprint Lock
| Specifications | |
|---|---|
| Model | CS-Y2000-R100-WBCP-BK/CS-Y2000-R101-WBCP-BK |
| Material and Specification | |
| Panel Material | Aluminum alloy |
| Panel Size | 360 × 67 × 27 mm |
| Color | Metallic grey |
| Lock Body Type | Lift-up lock body |
| Lock Cylinder | 5085 / 6068 |
| Weatherproof | IPX5 (Front Panel) |
| Emergency Charging | Type-C |
| Working Power | 1.5V AA alkaline batteries × 8 |
| Technical Specification | |
| Unlocking Method | Fingerprint, Passcode, Proximity card, Mechanical key, Bluetooth Key via the EZVIZ App, Temporary codes, Remote unlock |
| User Capacity | 50 pcs |
| Fingerprint Capacity | 50 pcs |
| Passcode Capacity | 50 pcs |
| Card Capacity | 50 pcs |
| Communication Methods | 2.4GHz Wi-Fi, Bluetooth |
| Temporary Access Codes | Supports |
| Anti-Peeping Codes | Supports, Max. 20 digits |
| Low Battery Warning | Supports |
| Security | Supports |
| User Management | Supports |
| Real Time Notification | Supports |
| Anti-Test Locking | Supports, enter error 5 times within 5 min, locking 3 min. |
| Anti-Tamper Alarm | Supports |
| Remote Control | Supports |
| Child Safety Lock | Supports |
| Voice Control | Soon Supports (Google Assistant / Alexa) |
| Supported Door Thickness | 30-110 mm |
| Working Temperature | -25°C~70°C |
| Operating Humidity | 10%~95% |
| In the box | |
| In the box | - Y2000 Smart Fingerprint Lock (Front Panel + Rear Panel + Hole Template) |
| - Lock Body | |
| - Standard Screw Bag | |
| - Lock Body Screw Bag × 2 | |
| - Locating Screw Bag | |
| - Reserving Screw × 2 | |
| - AA-Sized Battery × 8 | |
| - Mechanical Key × 2 | |
| - Square Rod | |
| - Proximity Card × 2 | |
| - Silicon Plug (For Rear Panel) | |
| - Regulatory Information | |
| - Quick Start Guide | |
| Certifications | |
| Certifications | CE (EMC / LVD / RED / ROHS) / REACH / SVHC / WEEE / UKCA |
EZVIZ Y3000FVP Plus Face Recognition & Palm Vein Smart Lock
| Specifications | |
|---|---|
| Model | CS-Y3000FVP Plus |
| Material and Specification | |
| Panel Material | Aluminum alloy |
| Panel Size | Front panel: 400 × 73.7 × 53.44 mm Rear panel: 400 × 72 × 30.5 mm |
| Color | Metallic grey |
| Lock Body Type | Automatic mechanical detection lock body 5085 / 6068 |
| Lock Cylinder | C-level cylinder |
| Emergency Charging | Type-C |
| Working Power | 5,000 mAh rechargeable lithium batteries |
| Technical Specification | |
| Unlocking Method | Face ID, Fingerprint, Passcode, Mechanical key, Bluetooth key via EZVIZ App, Temporary codes, Remote unlocking |
| User Capacity | 50 pcs |
| Face ID Capacity | 50 pcs |
| Palm Vein Capacity | 50 pcs |
| Fingerprint Capacity | 50 sets |
| Passcode Capacity | 50 pcs |
| Communication Methods | 2.4 GHz Wi-Fi, Bluetooth |
| Screen (non-touch) | IPS 4-inch (480 × 800) |
| IP Grade | IP52 |
| Front Panel Camera Resolution | 1080p (1080 × 1960) |
| Front Panel Camera Lens | View angle: 70° (Horizontal), 126° (Vertical), 150°(Diagonal) |
| IR Night Vision Distance | 2 m |
| Storage | EMMC 8G; Supports EZVIZ CloudPlay storage |
| Face Recognition | Standing distance < 1 m, height greater than 1.2 m and less than 2 m Recognition speed ≤ 1 s, supports day / night recognition Supports recognition across varying hairstyle and with glasses * EZVIZ laboratory data |
| Palm Vein Recognition | Recognition distance between the palm vein and sensor: 15 ~ 25 cm * EZVIZ laboratory data |
| Software Function | Anti-peeping code, Low battery warning, Privacy mode, User management, Real time notification, Anti-test locking, Anti-tamper alarm, Remote control, Video calling, Voice changer, Wandering detection |
| Voice Control | Supports Google Assistant and Amazon Alexa (Supports OTA updates) |
| Supported Door Thickness | 6068: 40 ~ 120 mm; 5085: 40 ~ 100 mm |
| Working Temperature | -20°C ~ 60°C |
| Operating Humidity | 10% ~ 95% |
| In the box | |
| In the box | - Front Panel |
| - Rear Panel | |
| - Hole Templet | |
| - Lock Body | |
| - Lock Body Screw Bag | |
| - Standard Screw Bag | |
| - Battery | |
| - Key Bag | |
| - Square Rod | |
| - Sticker | |
| - Regulatory Information | |
| - Quick Start Guide | |
| Certifications | |
| Certifications | CE (EMC / LVD / RED / ROHS) / REACH SVHC / WEEE |

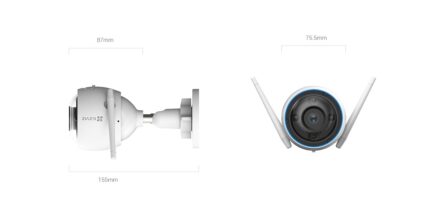

H3 2K
| Specifications | |
|---|---|
| Model | CS-H3-R100-1J3WKFL |
| General | |
| Dimensions | 75.5 × 75.5 × 155 mm (2.97 × 2.97 × 6.10 inch) |
| Package Dimensions | 227 × 100 × 92 mm (8.94 × 3.94 × 3.62 inch) |
| Weight | Net weight: 438 g (15.45 oz) With package: 676 g (23.84 oz) |
| IP Grade | IP67 |
| Operating Conditions | -30 °C ~ 60 ºC (-22 °F ~ 140 °F ) Humidity 95% or less (non-condensing) |
| Camera | |
| Image Sensor | 1/2.7”Progressive Scan CMOS |
| Shutter Speed | Self-adaptive shutter |
| Lens | 2.8mm @ F2.0, viewing angle: 122° (Diagonal), 106° (Horizontal), 56° (Vertical) 4mm @ F2.0, viewing angle:102° (Diagonal), 86° (Horizontal), 44° (Vertical) |
| Minimum Illumination | 0.01 lux @ (F2.0, AGC ON), 0 Lux with IR |
| Lens Mount | M12 |
| Day / Night Switch | IR-Cut filter with auto-switching |
| DNR | 3D DNR |
| WDR | Digital WDR |
| BLC | Supports |
| IR Night Vision Distance | Up to 98 ft / 30 m |
| Video & Audio | |
| Max. Resolution | 2304 × 1296 pixels |
| Frame Rate | Max: 30fps; Self-Adaptive during network transmission |
| Video Compression | H.265 / H.264 |
| Video Bit Rate | Quad HD; Full HD; HD; Standard. Adaptive bit rate. |
| Audio Bit Rate | Self-Adaptive |
| Max. Bitrate | 1.5 Mbps |
| Network | |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20 MHz |
| Security | 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK |
| Transmission Rate | 11b: 11 Mbps, 11g: 54 Mbps, 11n: 150 Mbps |
| Wi-Fi Pairing | AP Pairing |
| Protocol | EZVIZ Cloud Proprietary Protocol |
| Interface Protocol | EZVIZ Cloud Proprietary Protocol |
| Wired Network | RJ45 × 1 (10M / 100M Adaptive Ethernet Port) |
| Function | |
| Detection | AI-Powered Human / Vehicle Shape Detection, Motion Detection |
| Customized Alert Area | Supports |
| Integration | Works with Alexa, Google Assistant, IFTTT |
| General Function | Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark |
| Storage | |
| Local Storage | Supports microSD card (Up to 512 GB) |
| Cloud Storage | Supports EZVIZ CloudPlay storage (Subscription required) |
| Power | |
| Wiring | Hard-Wired |
| Power Supply | DC 12V / 1A |
| Power Consumption | Max. 7W |
| In the box | |
| In the box | - EZVIZ H3 2K Camera |
| - Drill Template | |
| - Screw Kit | |
| - Waterproof Kit | |
| - Power Adapter | |
| - Regulatory Information | |
| - Quick Start Quide | |
| Certifications | |
| Certifications | CE / FCC / UKCA / UL / WEEE / RoHS / REACH |
