airMAX NanoBeam M5
| Mechanical | |
|---|---|
| Dimensions | 140 x 140 x 54 mm (5.5 x 5.5 x 2.1") |
| Weight | 320 g (0.7 lb) |
| Enclosure material | Outdoor UV-stabilized plastic |
| Mounting | Pole-mount (Kit included), wall-mount |
| Wind loading | 21.4 N @ 200 km/h (4.8 lbf @ 125 mph) |
| Wind survivability | 200 km/h (125 mph) |
| Mechanical | |
| Networking interface | (1) 10/100 MbE RJ45 port |
| Power method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Power supply | 24V, 0.5A PoE adapter (Included) |
| Supported voltage range | 20–27V DC |
| Max. power consumption | 6W |
| ESD/EMP protection | Air/contact: ± 24 kV |
| LEDs | (1) Power, (1) LAN, (4) WLAN, signal srtength |
| Salt fog test | IEC 68-2-11 (ASTM B117) Equivalent: MIL-STD-810 G Method 509.5 |
| Vibration test | IEC 68-2-6 |
| Temperature shock test | IEC 68-2-14 |
| UV test | IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4 |
| Wind-driven rain test | ETS 300 019-1-4, Equivalent: MIL-STD-810 G method 506.5 |
| Ambient operating temperature | -40 to 70° C (-40 to 158° F) |
| Ambient operating humidity | 5 to 95% Noncondensing |
| Certifications | FCC, IC, CE, RoHS |
| NDAA Compliant | Yes |
| System | |
| Gain | 16 dBi |
| Channel sizes | 5/8/10/20/30/40 MHz |
| Max. VSWR | 1.5:1 |
| Polarization | Dual linear |
| Operating Frequency MHz | |
| Worldwide | 5150 - 5875 |
| USA U-NII-1 U-NII-2A U-NII-2C U-NII-3 | 5150 - 5250 5250 - 5350 5470 - 5725 5725 - 5850 |
airMAX PowerBeam 5AC 620
| Mechanical | |
|---|---|
| Dimensions | 620 x 620 x 386 mm (24.4 x 24.4 x 15.2") |
| Weight | 6.4 kg (14.1 lb) |
| Enclosure material | Outdoor UV-stabilized plastic |
| Mounting | Pole mount kit (Included) |
| Wind loading | Without radome: 1510 N at 200 km/h (340 lbf at 125 mph) With radome: 1830 N at 200 km/h (411 lbf at 125 mph) |
| Wind survivability | 200 km/h (125 mph) |
| Hardware | |
| Networking interface | (1) GbE RJ45 port |
| Power method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Power supply | 24V, 0.5A gigabit PoE adapter (Included) |
| Supported voltage range | 20-27V DC |
| Max. power consumption | 8.5W |
| ESD/EMP protection | Air/contact: ± 24 kV |
| LEDs | (1) Power, (1) LAN, (4) WLAN |
| Signal strength LEDs | Software-adjustable to correspond to custom RSSI levels |
| Salt fog test | IEC 68-2-11 (ASTM B117) Equivalent: MIL-STD-810 G method 509.5 |
| Vibration test | IEC 68-2-6 |
| Temperature shock test | IEC 68-2-14 |
| UV test | IEC 68-2-5 at 40° C (104° F) Equivalent: ETS 300 019-1-4 |
| Wind-driven rain test | ETS 300 019-1-4 Equivalent: MIL-STD-810 G method 506.5 |
| Ambient operating temperature | -40 to 70° C (-40 to 158° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE, RoHS |
| System | |
| Gain | 29 dBi |
| Max. VSWR | 1.6:1 |
| Channel sizes | PtP Mode: 10/20/30/40/50/60/80 MHz PtMP Mode: 10/20/30/40 MHz |
| Polarization | Dual linear |
| Operating Frequency (Mhz) | |
| Worldwide | 5150 - 5875 MHz |
| USA U-NII-1 U-NII-2A U-NII-2C U-NII-3 | 5150 – 5250 MHz 5250 – 5350 MHz 5470 – 5725 MHz 5725 – 5850 MHz |
| NDAA Compliant | Yes |
airMAX PrismStation 5AC
| Mechanical | |
|---|---|
| Dimensions | Device: 155 x 155 x 104 mm (5.2 x 5.2 x 4.1") Mounting hardware: 83 x 117 x 69 mm (3.3 x 4.6 x 2.7") |
| Weight | Deice: 0.8 kg (1.7 lb) Mounting hardware: 0.8 kg (1.7 lb) |
| Wind loading | 31 N at 200 km/h (7 lbf at 125 mph) |
| Wind survivability | 200 km/h (125 mph) |
| Mounting | Pole mount kit (Included) |
| Hardware | |
| Networking interface | (1) GbE RJ45 port |
| Power method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Power supply | 24V, 1A gigabit PoE adapter (Included) |
| Supported voltage range | 20—27V DC |
| Max. power consumption | 10W |
| ESD/EMP protection | Air/contact: ± 24kV |
| RF connector | (1) GPS |
| Max. VSWR | 2:1 |
| Polarization | Dual-linear |
| LED | (1) Power |
| Ambient operating temperature | -40 to 70° C (-40 to 158° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Operating Frequency (MHz) | |
| US/CA U-NII-1 U-NII-2A U-NII-2C U-NII-3 | 5150 - 5250 MHz 5250 - 5350 MHz 5470 - 5725 MHz 5725 - 5850 MHz |
| Worldwide | 5150 - 5875 MHz |
| Management Radio (MHz) | |
| US/CA | 2412 - 2462 MHz |
| Worldwide | 2412 - 2472 MHz |
| NDAA Compliant | Yes |
DS-3WAP521-SI
DS-3WAP522-SI
DS-3WAP621E-SI
DS-3WAP622G-SI
DS-3WAP623E-SI
GWN7603

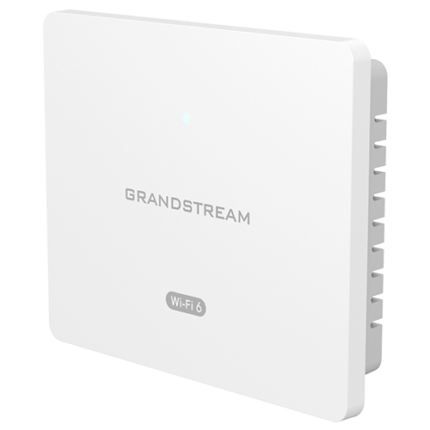

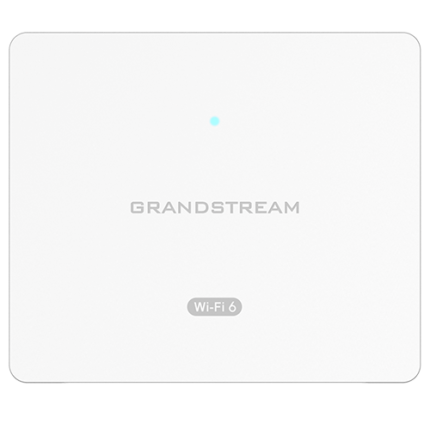

GWN7604
