CP3 2K
| Specifications | |
|---|---|
| Model | CS-CP3-R101-2D3WPB |
| Doorbell Camera Parameters | |
| Image Sensor | 1/2.8" Progressive Scan CMOS (Supports low light sensitivity) |
| Lens | 2.3 mm @ F2.2, Viewing angle: 162° (Diagonal) |
| Day / Night Switch | IR-cut filter with auto-switching |
| Video Parameters | |
| Max. Resolution | 3MP |
| DNR | 2D/3D DNR |
| Video Compression | H.264/H.265 |
| Frame Rate | Max: 15fps; Self-Adaptive During Network Transmission |
| PIR Sensor | |
| Sensing Angle | 100° |
| Sending Distance | Max. 2m (1m/1.5m/2m Sensitivity Adjustable) |
| Sensitivity | User Adjustable (High, Medium and Low Sensitivity) |
| Interface | |
| Audio Input | Built-in high sensitivity microphone |
| Audio Output | Build-in high-power speaker |
| Reset Button | Yes |
| Network Parameters | |
| Protocol | EZVIZ cloud proprietary protocol |
| Interface Protocol | EZVIZ cloud proprietary protocol |
| Functions | |
| Intelligent Alarm | Smart Human Motion Detection + PIR Detection |
| Tamper Alarm | Sound and light Anti-Tamper Alarm (Supports sending alerts to the smartphone) |
| Video Intercom | Long-distance video two-way talk |
| Wi-Fi Parameters | |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20MHz |
| Security | 64/128-bit WEP,WPA/WPA2, WPA-PSK/WPA2-PSK, WPS |
| Transmission Rate | 11b: 11Mbps,11g: 54Mbps,11n: 150Mbps |
| Doorbell | |
| Operation Conditions | -10°C to 45°C, Humidity 95% or less (non-condensing) |
| Weight | 194 g |
| Size | 149 × 57 × 31.8 mm |
| Battery Capacity | 5,000 mAh Rechargeable Lithium Battery |
| Chime | |
| Size | 101 × 64.2 × 32 mm |
| Power Supply | AC 110 ~ 240V |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
| Audio Output | 72dB within 1 meter |
| Storage | Supports microSD card (Up to 256 GB) |
| Weight | 83.6 g |
| In the box | |
| In the box | - CP3 Video Doorbell |
| - Chime | |
| - Power Cable | |
| - Drill Template | |
| - Mounting Plate | |
| - Inclined Mounting Plate × 2 | |
| - Screwdriver and Screw Kit × 2 | |
| - Foam Sticker | |
| - Plate Foam | |
| - Pin | |
| - U-Shaped Wire and Wire Connector × 3 | |
| - Installation Guide | |
| - Regulatory Information | |
| - Quick Start Guide | |
| Certifications | |
| Certifications | CE / WEEE / ROHS / REACH |
DB2-B Pro
| Specifications | |
|---|---|
| Model | CS-DB2-A0-2C5WPFBR—B |
| Camera | |
| Image Sensor | 1/2.7" Progressive Scan CMOS (Supports low light sensitivity) |
| Lens | 2.0 mm @ F2.0, viewing angle: 176° (Diagonal) |
| Day & Night | IR-cut filter with auto-switching |
| IR Range | Up to 5 m / 16 ft |
| Video & Audio | |
| Max. Resolution | 2544 × 1888 |
| DNR | 2D/3D DNR |
| Video Compression | H.265 / H.264 |
| Frame Rate | Max: 15fps; Self-Adaptive during network transmission |
| Audio Input | Built-in high-sensitivity microphone |
| Audio Output | Built-in high-power speaker |
| Network Parameters | |
| Protocol | EZVIZ Cloud Proprietary Protocol |
| Interface Protocol | EZVIZ Cloud Proprietary Protocol |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20 MHz |
| Security | 64/128-bit WEP,WPA/WPA2, WPA-PSK/WPA2-PSK |
| Transmission Rate | 11b: 11Mbps, 11g :54Mbps, 11n :150Mbps |
| Functions | |
| Detection | PIR Motion Detection, Smart Human Motion Detection |
| PIR Angle | 100° |
| PIR Distance | Up to 5 m / 16 ft |
| Sensitivity | Adjustable (High, Medium and Low Sensitivity) |
| Tamper Alarm | Sound and light anti-dismantling alarm |
| Two-way Talk | Supports |
| Power | |
| Power Supply | DC 5V (± 10%) 2A |
| Power Consumption | Max.2W |
| Battery Capacity | 5200 mAh rechargeable lithium battery |
| General | |
| Dimensions | 150 × 58 × 32 mm (5.91 × 2.28 × 1.24 inch) |
| Net Weight | 244 g (8.61 oz) |
| Weight (With Package) | 655 g (23.10 oz) |
| IP Grade | IP65 |
| Operation Conditions | -20°C to 50°C (-4°F to 122°F), humidity 95% or less (non-condensing) |
| Reset Button | Yes |
| Chime | |
| Dimensions | 101 × 64 × 32 mm (3.98 × 2.52 × 1.26 inch) |
| Power Supply | AC 110 ~ 240V |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
| Ringtone | Supports up to 20 options with adjustable volume |
| Audio Output | Built-in high-power speaker (Up to 72 dB in 1 meter) |
| Storage | Supports microSD card (Up to 256 GB) |
| Net Weight | 87 g (3.07 oz) |
| In the box | |
| In the box | - DB2-B Pro Video Doorbell |
| - Chime | |
| - Mounting Plates | |
| - Inclined Mounting Plates (2) | |
| - Screwdriver and Screw Kits (2) | |
| - Foam Sticker | |
| - Plate Foam | |
| - Drill Template | |
| - Pin | |
| - U-shaped Wire and Wire Connectors (3) | |
| - Power Cable | |
| - Quick Start Guide | |
| - Installation Guide | |
| - Regulatory Information | |
| Certifications | |
| Certifications | UL / CE / FCC / REACH / WEEE / RoHS |
DL06 Unlock your door right at your hand
| Specifications | |
|---|---|
| Model | CS-DL06-R100-WBCP-GR |
| Material and Specification | |
| Panel Material | Aluminum alloy |
| Panel Size | 331 × 40 × 25.8 mm |
| Color | Metallic grey |
| Lock Body Type | Lift-up lock body |
| Lock Cylinder | 2885 / 3585 / 4585 |
| Weatherproof | IP55 (front panel) |
| Emergency Charging | Type-C |
| Working Power | 1,450 mAh Rechargeable Lithium Battery |
| Technical Specification | |
| Unlocking Method | Fingerprint, passcode, proximity card, mechanical key, Bluetooth remote control，Bluetooth key via EZVIZ App, temporary codes, remote unlock |
| User Capacity | 50 pcs |
| Fingerprint Capacity | 50 pcs |
| Passcode Capacity | 50 pcs |
| Card Capacity | 50 pcs |
| Communication Methods | 2.4GHz Wi-Fi, Bluetooth |
| Temporary Access Codes | Supports |
| Anti-Peeping Codes | Supports, Max. 20 digits |
| Low Battery Warning | Supports |
| Privacy Mode | Supports |
| User Management | Supports |
| Real Time Notification | Supports |
| Anti-Test Locking | Supports, enter error 5 times within 5 min, locking 3 min. |
| Anti-Tamper Alarm | Supports |
| Remote Control | Supports |
| Supported Door Thickness | 30-120 mm |
| Working Temperature | -10°C~55°C |
| Operating Humidity | 10%~95% |
| In the box | |
| In the box | - DL06 Front Panel |
| - DL06 Rear Panel | |
| - Hole Templet | |
| - Lock Body | |
| - Standard Screw Bag | |
| - Lithium Battery | |
| - Mechanical Key × 2 | |
| - Square Rod | |
| - Proximity Card × 2 | |
| - Screwdriver | |
| - Regulatory Information | |
| - Quick Start Guide | |
| Certifications | |
| Certifications | CE (EMC / LVD / RED / ROHS) / REACH SVHC / WEEE |
DS-KD-DIS

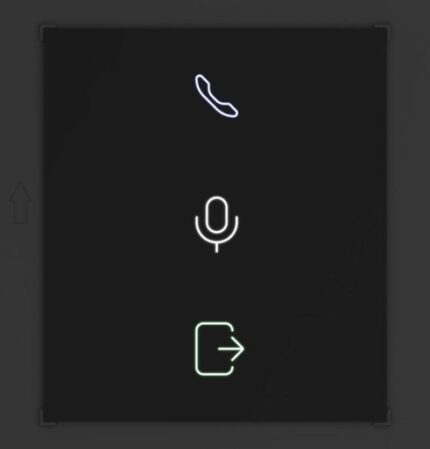

DS-KD-IN

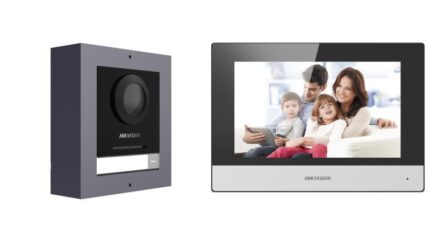

DS-KIS602(B)
Video Intercom KIT
- IP video intercom bundle for villa or house
- One call button for easier calls
- Stores messages and captured pictures in the TF card
- Convenient Hik-Connect APP Mobile Control
- Including: DS-KD8003-IME1(B)/Surface × 1, DS-KH6320-WTE1 × 1, 4-port standard PoE switch × 1, 16 GB TF card × 1
- Power adapter included in the package

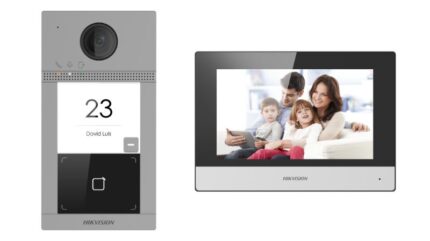

DS-KIS604-P(C)
IP video intercom kit
- IP video intercom kit for villa or house
- One call button for easier calls
- Convenient Hik-Connect APP Mobile Control
- Stores messages and captured pictures in the TF card
- Including: DS-KV8113-WME1(C) × 1, DS-KH6320-WTE1 × 1, PSU × 2, 16 GB TF card × 1
- Power adapter included in the package

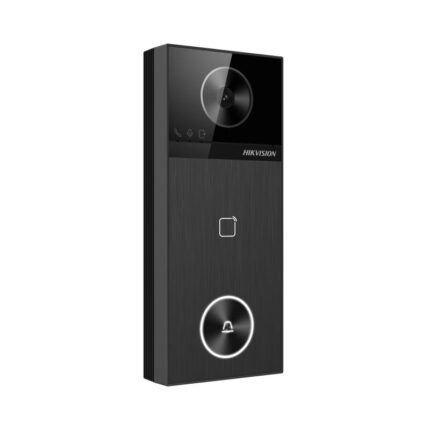

DS-KV6114-E1

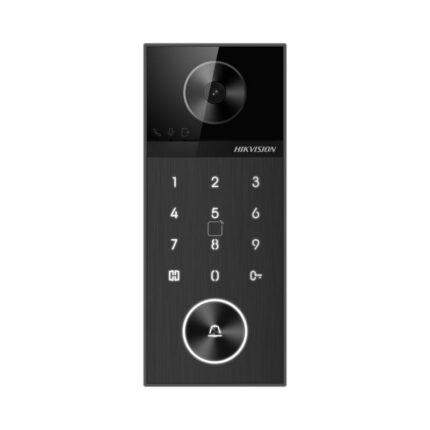

DS-KV6114-WBE1

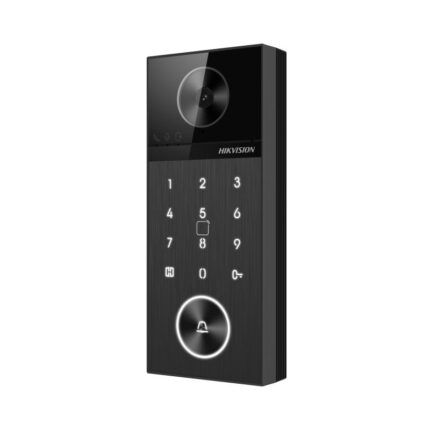

DS-KV6124-WBE1

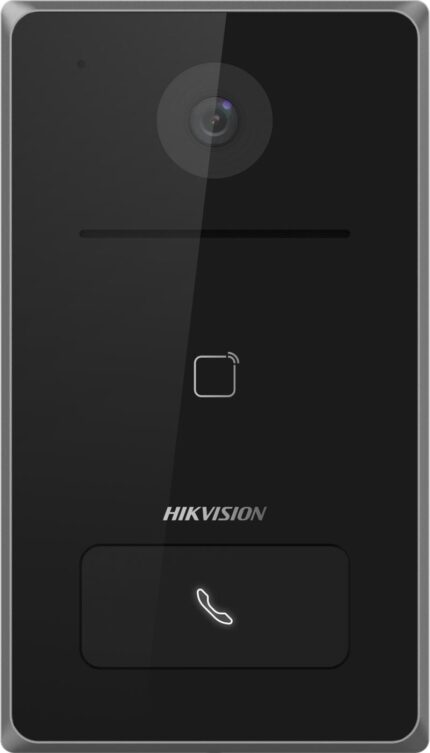

DS-KV6133-WME1/Flush
EZVIZ DL01 Pro Smart Lock
| Specifications | |
|---|---|
| Model | CS-DL01 Pro |
| Technical Specification | |
| Product Material | Aluminum |
| Dimensions | 127 × 57 × 63 mm |
| Communication | EZVIZ Connect ZigBee connection (With optional gateway A3) |
| Keyless Unlocking | Support |
| Bluetooth Key | Supports (Up to 50 groups) |
| Working Power | 4 AA Alkaline Batteries |
| Working Condition | 25℃~55℃, Humidity 10%~95% (Non-condensing) |
| APP Function | |
| Automatic Locking | Supports (With the included door sensor for debugging) |
| Lock Status Check | Supports |
| User Management | Supports |
| Message Notification | Supports |
| Door-Left-Open Alert | Supports |
| Privacy Mode | Supports (Enable via EZVIZ APP) |
| Low Battery Alert | Supports |
| Front Panel Function | |
| Fingerprint Unlock | Supports (Up to 50 groups, apply to CS-DL01BCP) |
| Password Unlock | Support (Up to 50 groups, 6-10 digits) |
| Virtual Passcode | Supports |
| Proximity Card Unlocking | Supports |
| Electric doorbell | Supports |
| Low Battery Alert | Supports |
| Anti-Tamper Alert | Supports |
| Anti-Test Alert | Supports (Enter 5 errors in 5 minutes, locked for 3 minutes) |
| With A3 Gateway (Optional) | |
| Temporary Passcode | Only supports with additional EZVIZ keypad |
| Remote Unlock | Supports |
| Real-Time Notification | Supports |
| EZVIZ Connect | Supports |
| In the box | |
| In the bo× | - Smart Lock DL01 Pro |
| - Mounting Plate ×2 | |
| - AA-sized Battery ×4 | |
| - Hexagon Wrench | |
| - Plus Driver | |
| - Screw Kit | |
| - Door Sensor | |
| - Double-sided Tape | |
| - Regulatory Information | |
| - Quick Start Guide | |
| Certifications | |
| Certifications | CE / RoHS / REACH / UL / WEEE |
