CP3 2K
| Specifications | |
|---|---|
| Model | CS-CP3-R101-2D3WPB |
| Doorbell Camera Parameters | |
| Image Sensor | 1/2.8" Progressive Scan CMOS (Supports low light sensitivity) |
| Lens | 2.3 mm @ F2.2, Viewing angle: 162° (Diagonal) |
| Day / Night Switch | IR-cut filter with auto-switching |
| Video Parameters | |
| Max. Resolution | 3MP |
| DNR | 2D/3D DNR |
| Video Compression | H.264/H.265 |
| Frame Rate | Max: 15fps; Self-Adaptive During Network Transmission |
| PIR Sensor | |
| Sensing Angle | 100° |
| Sending Distance | Max. 2m (1m/1.5m/2m Sensitivity Adjustable) |
| Sensitivity | User Adjustable (High, Medium and Low Sensitivity) |
| Interface | |
| Audio Input | Built-in high sensitivity microphone |
| Audio Output | Build-in high-power speaker |
| Reset Button | Yes |
| Network Parameters | |
| Protocol | EZVIZ cloud proprietary protocol |
| Interface Protocol | EZVIZ cloud proprietary protocol |
| Functions | |
| Intelligent Alarm | Smart Human Motion Detection + PIR Detection |
| Tamper Alarm | Sound and light Anti-Tamper Alarm (Supports sending alerts to the smartphone) |
| Video Intercom | Long-distance video two-way talk |
| Wi-Fi Parameters | |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20MHz |
| Security | 64/128-bit WEP,WPA/WPA2, WPA-PSK/WPA2-PSK, WPS |
| Transmission Rate | 11b: 11Mbps,11g: 54Mbps,11n: 150Mbps |
| Doorbell | |
| Operation Conditions | -10°C to 45°C, Humidity 95% or less (non-condensing) |
| Weight | 194 g |
| Size | 149 × 57 × 31.8 mm |
| Battery Capacity | 5,000 mAh Rechargeable Lithium Battery |
| Chime | |
| Size | 101 × 64.2 × 32 mm |
| Power Supply | AC 110 ~ 240V |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
| Audio Output | 72dB within 1 meter |
| Storage | Supports microSD card (Up to 256 GB) |
| Weight | 83.6 g |
| In the box | |
| In the box | - CP3 Video Doorbell |
| - Chime | |
| - Power Cable | |
| - Drill Template | |
| - Mounting Plate | |
| - Inclined Mounting Plate × 2 | |
| - Screwdriver and Screw Kit × 2 | |
| - Foam Sticker | |
| - Plate Foam | |
| - Pin | |
| - U-Shaped Wire and Wire Connector × 3 | |
| - Installation Guide | |
| - Regulatory Information | |
| - Quick Start Guide | |
| Certifications | |
| Certifications | CE / WEEE / ROHS / REACH |
DB2-B Pro
| Specifications | |
|---|---|
| Model | CS-DB2-A0-2C5WPFBR—B |
| Camera | |
| Image Sensor | 1/2.7" Progressive Scan CMOS (Supports low light sensitivity) |
| Lens | 2.0 mm @ F2.0, viewing angle: 176° (Diagonal) |
| Day & Night | IR-cut filter with auto-switching |
| IR Range | Up to 5 m / 16 ft |
| Video & Audio | |
| Max. Resolution | 2544 × 1888 |
| DNR | 2D/3D DNR |
| Video Compression | H.265 / H.264 |
| Frame Rate | Max: 15fps; Self-Adaptive during network transmission |
| Audio Input | Built-in high-sensitivity microphone |
| Audio Output | Built-in high-power speaker |
| Network Parameters | |
| Protocol | EZVIZ Cloud Proprietary Protocol |
| Interface Protocol | EZVIZ Cloud Proprietary Protocol |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20 MHz |
| Security | 64/128-bit WEP,WPA/WPA2, WPA-PSK/WPA2-PSK |
| Transmission Rate | 11b: 11Mbps, 11g :54Mbps, 11n :150Mbps |
| Functions | |
| Detection | PIR Motion Detection, Smart Human Motion Detection |
| PIR Angle | 100° |
| PIR Distance | Up to 5 m / 16 ft |
| Sensitivity | Adjustable (High, Medium and Low Sensitivity) |
| Tamper Alarm | Sound and light anti-dismantling alarm |
| Two-way Talk | Supports |
| Power | |
| Power Supply | DC 5V (± 10%) 2A |
| Power Consumption | Max.2W |
| Battery Capacity | 5200 mAh rechargeable lithium battery |
| General | |
| Dimensions | 150 × 58 × 32 mm (5.91 × 2.28 × 1.24 inch) |
| Net Weight | 244 g (8.61 oz) |
| Weight (With Package) | 655 g (23.10 oz) |
| IP Grade | IP65 |
| Operation Conditions | -20°C to 50°C (-4°F to 122°F), humidity 95% or less (non-condensing) |
| Reset Button | Yes |
| Chime | |
| Dimensions | 101 × 64 × 32 mm (3.98 × 2.52 × 1.26 inch) |
| Power Supply | AC 110 ~ 240V |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
| Ringtone | Supports up to 20 options with adjustable volume |
| Audio Output | Built-in high-power speaker (Up to 72 dB in 1 meter) |
| Storage | Supports microSD card (Up to 256 GB) |
| Net Weight | 87 g (3.07 oz) |
| In the box | |
| In the box | - DB2-B Pro Video Doorbell |
| - Chime | |
| - Mounting Plates | |
| - Inclined Mounting Plates (2) | |
| - Screwdriver and Screw Kits (2) | |
| - Foam Sticker | |
| - Plate Foam | |
| - Drill Template | |
| - Pin | |
| - U-shaped Wire and Wire Connectors (3) | |
| - Power Cable | |
| - Quick Start Guide | |
| - Installation Guide | |
| - Regulatory Information | |
| Certifications | |
| Certifications | UL / CE / FCC / REACH / WEEE / RoHS |
DL06 Unlock your door right at your hand
| Specifications | |
|---|---|
| Model | CS-DL06-R100-WBCP-GR |
| Material and Specification | |
| Panel Material | Aluminum alloy |
| Panel Size | 331 × 40 × 25.8 mm |
| Color | Metallic grey |
| Lock Body Type | Lift-up lock body |
| Lock Cylinder | 2885 / 3585 / 4585 |
| Weatherproof | IP55 (front panel) |
| Emergency Charging | Type-C |
| Working Power | 1,450 mAh Rechargeable Lithium Battery |
| Technical Specification | |
| Unlocking Method | Fingerprint, passcode, proximity card, mechanical key, Bluetooth remote control，Bluetooth key via EZVIZ App, temporary codes, remote unlock |
| User Capacity | 50 pcs |
| Fingerprint Capacity | 50 pcs |
| Passcode Capacity | 50 pcs |
| Card Capacity | 50 pcs |
| Communication Methods | 2.4GHz Wi-Fi, Bluetooth |
| Temporary Access Codes | Supports |
| Anti-Peeping Codes | Supports, Max. 20 digits |
| Low Battery Warning | Supports |
| Privacy Mode | Supports |
| User Management | Supports |
| Real Time Notification | Supports |
| Anti-Test Locking | Supports, enter error 5 times within 5 min, locking 3 min. |
| Anti-Tamper Alarm | Supports |
| Remote Control | Supports |
| Supported Door Thickness | 30-120 mm |
| Working Temperature | -10°C~55°C |
| Operating Humidity | 10%~95% |
| In the box | |
| In the box | - DL06 Front Panel |
| - DL06 Rear Panel | |
| - Hole Templet | |
| - Lock Body | |
| - Standard Screw Bag | |
| - Lithium Battery | |
| - Mechanical Key × 2 | |
| - Square Rod | |
| - Proximity Card × 2 | |
| - Screwdriver | |
| - Regulatory Information | |
| - Quick Start Guide | |
| Certifications | |
| Certifications | CE (EMC / LVD / RED / ROHS) / REACH SVHC / WEEE |
EZVIZ DL01 Pro Smart Lock
| Specifications | |
|---|---|
| Model | CS-DL01 Pro |
| Technical Specification | |
| Product Material | Aluminum |
| Dimensions | 127 × 57 × 63 mm |
| Communication | EZVIZ Connect ZigBee connection (With optional gateway A3) |
| Keyless Unlocking | Support |
| Bluetooth Key | Supports (Up to 50 groups) |
| Working Power | 4 AA Alkaline Batteries |
| Working Condition | 25℃~55℃, Humidity 10%~95% (Non-condensing) |
| APP Function | |
| Automatic Locking | Supports (With the included door sensor for debugging) |
| Lock Status Check | Supports |
| User Management | Supports |
| Message Notification | Supports |
| Door-Left-Open Alert | Supports |
| Privacy Mode | Supports (Enable via EZVIZ APP) |
| Low Battery Alert | Supports |
| Front Panel Function | |
| Fingerprint Unlock | Supports (Up to 50 groups, apply to CS-DL01BCP) |
| Password Unlock | Support (Up to 50 groups, 6-10 digits) |
| Virtual Passcode | Supports |
| Proximity Card Unlocking | Supports |
| Electric doorbell | Supports |
| Low Battery Alert | Supports |
| Anti-Tamper Alert | Supports |
| Anti-Test Alert | Supports (Enter 5 errors in 5 minutes, locked for 3 minutes) |
| With A3 Gateway (Optional) | |
| Temporary Passcode | Only supports with additional EZVIZ keypad |
| Remote Unlock | Supports |
| Real-Time Notification | Supports |
| EZVIZ Connect | Supports |
| In the box | |
| In the bo× | - Smart Lock DL01 Pro |
| - Mounting Plate ×2 | |
| - AA-sized Battery ×4 | |
| - Hexagon Wrench | |
| - Plus Driver | |
| - Screw Kit | |
| - Door Sensor | |
| - Double-sided Tape | |
| - Regulatory Information | |
| - Quick Start Guide | |
| Certifications | |
| Certifications | CE / RoHS / REACH / UL / WEEE |
EZVIZ Smart Lock DL05, 7-in-1 Keyless Door Lock, with Fingerprint Access – Secure Keyless Entry, Multiple Unlock Options, Instant Alerts, Weatherproof, Child Security, Privacy Control 5085
| Brand | EZVIZ |
| Lock type | Biometric |
| Item dimensions L x W x H | 6.7 x 2.7 x 36 centimeters |
| Recommended uses for product | Home, Residential Door |
| Style | modern |
| Colour | Grey 5085 |
| Included components | Lock body, lock cylinder, accessories, manual, batteries, RFID cards, keys |
| Control method | App |
| Connectivity protocol | Wi-Fi |
| Manufacturer | isvys |
EZVIZ Y2000 Smart Fingerprint Lock
| Specifications | |
|---|---|
| Model | CS-Y2000-R100-WBCP-BK/CS-Y2000-R101-WBCP-BK |
| Material and Specification | |
| Panel Material | Aluminum alloy |
| Panel Size | 360 × 67 × 27 mm |
| Color | Metallic grey |
| Lock Body Type | Lift-up lock body |
| Lock Cylinder | 5085 / 6068 |
| Weatherproof | IPX5 (Front Panel) |
| Emergency Charging | Type-C |
| Working Power | 1.5V AA alkaline batteries × 8 |
| Technical Specification | |
| Unlocking Method | Fingerprint, Passcode, Proximity card, Mechanical key, Bluetooth Key via the EZVIZ App, Temporary codes, Remote unlock |
| User Capacity | 50 pcs |
| Fingerprint Capacity | 50 pcs |
| Passcode Capacity | 50 pcs |
| Card Capacity | 50 pcs |
| Communication Methods | 2.4GHz Wi-Fi, Bluetooth |
| Temporary Access Codes | Supports |
| Anti-Peeping Codes | Supports, Max. 20 digits |
| Low Battery Warning | Supports |
| Security | Supports |
| User Management | Supports |
| Real Time Notification | Supports |
| Anti-Test Locking | Supports, enter error 5 times within 5 min, locking 3 min. |
| Anti-Tamper Alarm | Supports |
| Remote Control | Supports |
| Child Safety Lock | Supports |
| Voice Control | Soon Supports (Google Assistant / Alexa) |
| Supported Door Thickness | 30-110 mm |
| Working Temperature | -25°C~70°C |
| Operating Humidity | 10%~95% |
| In the box | |
| In the box | - Y2000 Smart Fingerprint Lock (Front Panel + Rear Panel + Hole Template) |
| - Lock Body | |
| - Standard Screw Bag | |
| - Lock Body Screw Bag × 2 | |
| - Locating Screw Bag | |
| - Reserving Screw × 2 | |
| - AA-Sized Battery × 8 | |
| - Mechanical Key × 2 | |
| - Square Rod | |
| - Proximity Card × 2 | |
| - Silicon Plug (For Rear Panel) | |
| - Regulatory Information | |
| - Quick Start Guide | |
| Certifications | |
| Certifications | CE (EMC / LVD / RED / ROHS) / REACH / SVHC / WEEE / UKCA |
EZVIZ Y3000FVP Plus Face Recognition & Palm Vein Smart Lock
| Specifications | |
|---|---|
| Model | CS-Y3000FVP Plus |
| Material and Specification | |
| Panel Material | Aluminum alloy |
| Panel Size | Front panel: 400 × 73.7 × 53.44 mm Rear panel: 400 × 72 × 30.5 mm |
| Color | Metallic grey |
| Lock Body Type | Automatic mechanical detection lock body 5085 / 6068 |
| Lock Cylinder | C-level cylinder |
| Emergency Charging | Type-C |
| Working Power | 5,000 mAh rechargeable lithium batteries |
| Technical Specification | |
| Unlocking Method | Face ID, Fingerprint, Passcode, Mechanical key, Bluetooth key via EZVIZ App, Temporary codes, Remote unlocking |
| User Capacity | 50 pcs |
| Face ID Capacity | 50 pcs |
| Palm Vein Capacity | 50 pcs |
| Fingerprint Capacity | 50 sets |
| Passcode Capacity | 50 pcs |
| Communication Methods | 2.4 GHz Wi-Fi, Bluetooth |
| Screen (non-touch) | IPS 4-inch (480 × 800) |
| IP Grade | IP52 |
| Front Panel Camera Resolution | 1080p (1080 × 1960) |
| Front Panel Camera Lens | View angle: 70° (Horizontal), 126° (Vertical), 150°(Diagonal) |
| IR Night Vision Distance | 2 m |
| Storage | EMMC 8G; Supports EZVIZ CloudPlay storage |
| Face Recognition | Standing distance < 1 m, height greater than 1.2 m and less than 2 m Recognition speed ≤ 1 s, supports day / night recognition Supports recognition across varying hairstyle and with glasses * EZVIZ laboratory data |
| Palm Vein Recognition | Recognition distance between the palm vein and sensor: 15 ~ 25 cm * EZVIZ laboratory data |
| Software Function | Anti-peeping code, Low battery warning, Privacy mode, User management, Real time notification, Anti-test locking, Anti-tamper alarm, Remote control, Video calling, Voice changer, Wandering detection |
| Voice Control | Supports Google Assistant and Amazon Alexa (Supports OTA updates) |
| Supported Door Thickness | 6068: 40 ~ 120 mm; 5085: 40 ~ 100 mm |
| Working Temperature | -20°C ~ 60°C |
| Operating Humidity | 10% ~ 95% |
| In the box | |
| In the box | - Front Panel |
| - Rear Panel | |
| - Hole Templet | |
| - Lock Body | |
| - Lock Body Screw Bag | |
| - Standard Screw Bag | |
| - Battery | |
| - Key Bag | |
| - Square Rod | |
| - Sticker | |
| - Regulatory Information | |
| - Quick Start Guide | |
| Certifications | |
| Certifications | CE (EMC / LVD / RED / ROHS) / REACH SVHC / WEEE |

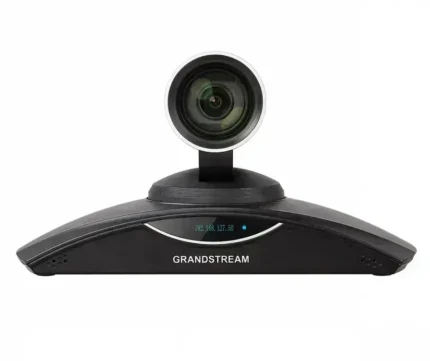

Grandstream GVC3200 2-KIT Full HD Video Conferencing System IPVideoTalk Pro
The GVC3200 is a revolutionary video conferencing system that provides an interactive and immersive video conferencing environment to increase collaboration and productivity. This SIP-based GVC3200 allows the user to connect their video conferencing solutions with any 3rd party SIP or H.323 video conferencing platform. Additionally, its built-in MCU bridges multiple platforms such as Skype, Google Hangouts and many others. . Additionally, since the GVC3200 is based on an Android 4.4 operating system it offers access to applications in the Google Play Store. Users will elevate their experience with its 1080p Full-HD video, up to 9-way video conferences, 3 monitor outputs, screen-sharing capabilities, WiFi and more.
SONOFF MINI Dry Wi-Fi Smart Switch | MINI-D
【Matter-Compatible – Cross-Platform Smart Home Integration】The SONOFF MINI-D is a Matter-certified smart switch, designed for seamless integration with Matter-enabled platforms, including Amazon Alexa, Google Home, Apple Home, Home Assistant, and more. Enjoy effortless control of smart devices from different brands, all through one unified ecosystem. Build a truly interoperable smart home with Matter technology.
【Flexible AC/DC Power Supply Support】Designed for versatility, the MINI-D supports powered by AC (100–240V) or DC (12–48V) power sources, enabling easy installation in residential, industrial, or custom control environments. Perfect for various wiring scenarios and locations.
【Dry Contact Output – Supports NO & NC Configurations】The SONOFF MINI-D features dry contact output with both Normally Open (NO) and Normally Closed (NC) options, allowing flexible control of a wide range of signal-based systems. It’s ideal for operating boilers, garage door openers, access control panels, and other devices that rely on non-voltage triggering. Perfect for integrating smart control into traditional low-voltage or relay-based systems.
【Optimized for DC Low-Power Motors (Max 8W)】Specially engineered to control low-power DC motors or solenoid valves (up to 8W), the MINI-D offers an ideal solution for smart irrigation, motorized curtains, or gate systems that run on low-voltage DC circuits.
【Integrated with Contactor Control – Manage High-Power Loads Safely】When paired with a contactor, MINI-D allows a low-power control circuit to safely switch high-power electrical systems, such as industrial equipment or HVAC units. This not only increases safety and energy efficiency but also allows precise smart control over large loads.
SONOFF MINI Extreme Wi-Fi Smart Switch (Matter-enabled) | MINIR4M
【Universal Compatibility with Matter Ecosystems】MINIR4M is a Matter-certified smart switch, enabling seamless integration with Apple Home, Amazon Alexa, Google Home, SmartThings, and other Matter-enabled ecosystems. No more juggling between apps — now you can control all your smart devices in one unified platform, regardless of brand. Perfect for building a future-proof smart home.
【Ultra-Compact Design – Fits in Tight Spaces】Designed for flexibility, the MINIR4M fits easily into standard 86-type and EU electrical mounting boxes, making it ideal for both new installations and retrofitting existing switches. Upgrade your wall switch in minutes.
【Works with Multiple External Switch Types】MINIR4M supports momentary switches, SPDT (two-way) switches, and latching switches. Enjoy the freedom to combine manual control with automation.
【Turn Everyday Devices into Smart Appliances】Easily upgrade your lamp, fan, and other small appliances into smart devices with the SONOFF MINIR4M. Enjoy remote control, automation, and voice assistant integration — all from your favorite smart home app. From conventional to connected, without changing your existing appliances.
【Certified Safety – TÜV, CE, and FCC Approved】MINIR4M is built with your safety in mind. It has passed TÜV, CE, and FCC certifications, ensuring reliable performance, electromagnetic compatibility, and electrical protection.
SONOFF MINI Extreme Wi-Fi Smart Switch MINIR4
【Ultra-Compact Design】MINIR4’s super tiny size fits easily into various mounting boxes, including the smallest European standard boxes, making installation quick and hassle-free.
【Equipped with ESP32 Chip – High-Performance Smart Core】MINIR4 features the powerful ESP32 chip, delivering faster response times, more stable connectivity, and enhanced processing power. Designed for reliable and long-lasting performance, it ensures seamless smart home automation and smooth device control.
【Flexible External Switch Compatibility】Supports multiple switch types such as momentary switches, door exit switches, SPDT switches, latching switches, and even dry contact sensors for versatile control options.
【Detach Relay Mode for Independent Control】With the unique “detach relay” mode, the external switch state and the relay state operate independently. Pressing the external switch won’t affect the relay’s on/off status, providing more flexible control.
【eWeLink-Remote Gateway Function】MINIR4 acts as a smart switch and gateway for “eWeLink-Remote”. Pair with sub-devices like R5 and S-MATE to enable local remote control via eWeLink-Remote signals, enhancing your smart home network.
SONOFF NSPanel Pro Smart Home Control Panel 86 Type
【All-in-One Control】NSPanel Pro supports unlimited SONOFF devices—from smart lights and cameras to sensors and switches. Future SONOFF devices will also be compatible, ensuring long-term scalability.
【Built-in Zigbee Hub】Easily batch-add Zigbee devices via the touchscreen. The standard Zigbee 3.0 protocol ensures stable connections and wider coverage. The added sub-devices can be voice-controlled via Alexa, Google Home, and more.
【Smart Security】Create up to 3 custom security modes with different arming configurations. Once armed, the triggered sensor will activate an alarm on the panel and send instant alerts to your phone.
【Temperature Control】Select the temperature source (e.g., TH Elite) and control devices (e.g., MINIR4M, ZBMINIL2) to build a personalized thermostat system that keeps your space comfortable.
【Live Camera Monitoring】NSPanel Pro functions as a real-time display for the supported cameras. Monitor key areas like the living room, garage, or bedroom directly from the panel at any time.
