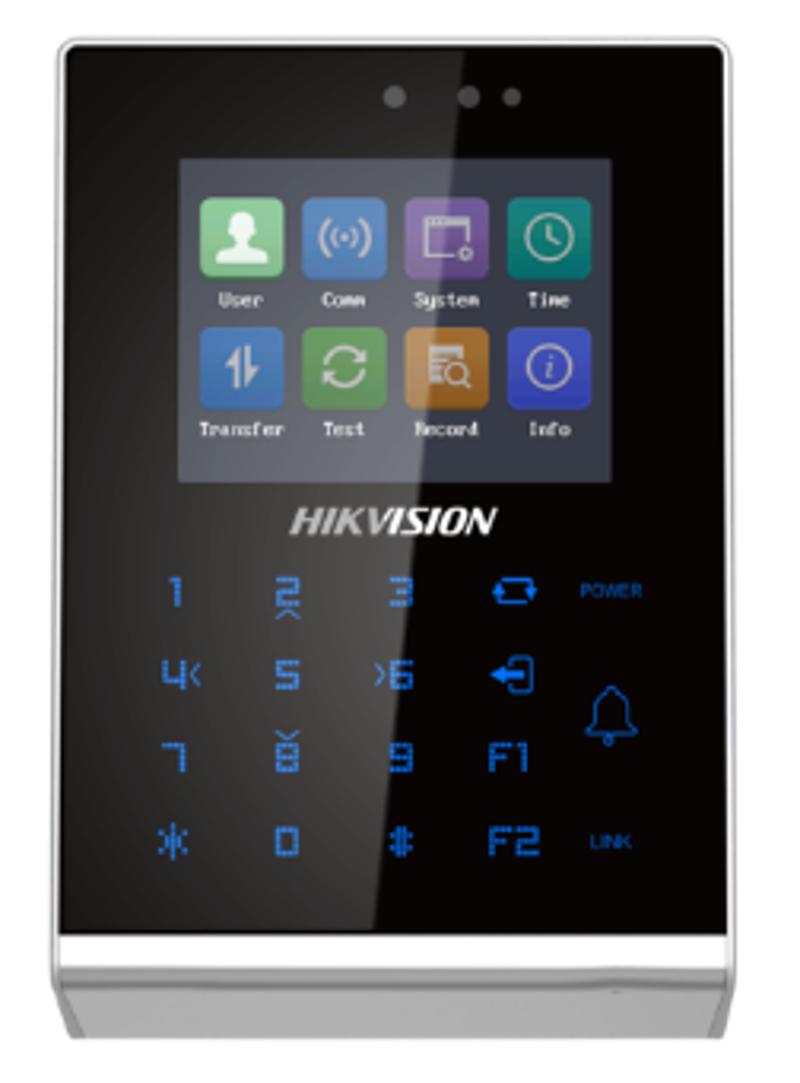

DS-K1T105AM
Pro Series Card Terminal
- IP addresses conflicted alarm
- Supports uploading real-time events
- Gets offline events: Avoids events losing
- Touch mode and blue light display technique for keypad
- Stand-alone settings for the terminal
- 2.8-inch LCD display screen to display the time, the date, etc.
- Max. 100,000 valid card capacity, and Max. 300,000 access control events capacity
- Communication via wired network (TCP/TP) and Wi-Fi
- Supports ISUP5.0 protocol for public network communication
- Supports multiple door opening modes (card, card + password, exit button, etc.)
- Supports RS-485 and Wiegand (26/34) communication for connecting the external card reader
- Applies authentications from the client to the device
- Supports Wiegand (26/34) interface and RS-485 interface for accessing the controller
- Supports Mifare card reading
- M1 card encryption
- Tampering detection, unlocking overtime alarm, invalid card presenting over times alarm, forced opening door alarm, and duress card alarm
- Creates dismiss code for dismiss alarm
- Accurate data and time display provided by built-in electronic clock and watchdog program to ensure the basic function of the terminal
- Data can be permanently saved after power-off
Reviews (0)
Shipping and Delivery
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Related products
Hikvision 2MP Outdoor 20X IR IP Speed Dome Camera 150M IR High PoE
- high-speed dome PTZ camera,
- max. resolution 2 MP / 1920x1080 @ 25 fps),
- focal length f = 4.7...94 mm (optical zoom 20x),
- image processing functions: 3D DNR, D-WDR, BLC, HLC
- intelligent 3Dpositioning,
- Defog function,
- intelligent coding: low bit rate, ROI,
- intelligent image analysis: virtual line crossing, intrusion detection, audio exception,
- 256 presets, 8 patrols,
- audio in/out: 1/1,
- alarm in/out: 2/1,
- mechanically switching IR filter,
- microSD card slot (max 128 GB),
- IR up to 150 m,
- IP66 housing rating,
- support for IE, Firefox, Safari, iPhone, Android,
- free iVMS 4200 managing software, iVMS 4500 mobile app,
- supplying voltage: 24 VAC, PoE+.

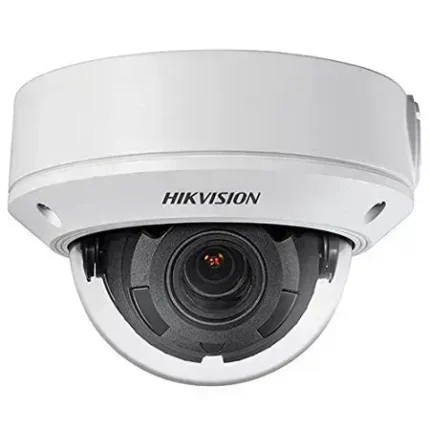

Hikvision 4 MP Indoor Varifocal IR IP Dome Camera Motorized Zoom Lens
