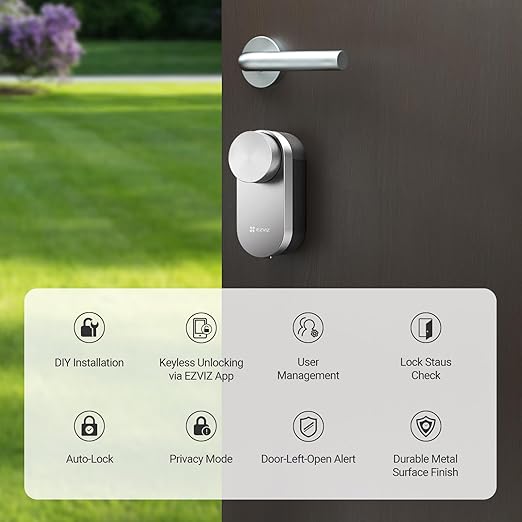

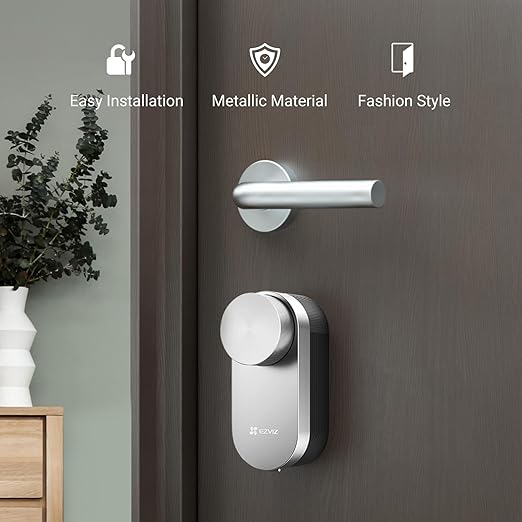

EZVIZ DL01 Pro Smart Lock
| Specifications | |
|---|---|
| Model | CS-DL01 Pro |
| Technical Specification | |
| Product Material | Aluminum |
| Dimensions | 127 × 57 × 63 mm |
| Communication | EZVIZ Connect
ZigBee connection (With optional gateway A3) |
| Keyless Unlocking | Support |
| Bluetooth Key | Supports (Up to 50 groups) |
| Working Power | 4 AA Alkaline Batteries |
| Working Condition | 25℃~55℃, Humidity 10%~95% (Non-condensing) |
| APP Function | |
| Automatic Locking | Supports (With the included door sensor for debugging) |
| Lock Status Check | Supports |
| User Management | Supports |
| Message Notification | Supports |
| Door-Left-Open Alert | Supports |
| Privacy Mode | Supports (Enable via EZVIZ APP) |
| Low Battery Alert | Supports |
| Front Panel Function | |
| Fingerprint Unlock | Supports (Up to 50 groups, apply to CS-DL01BCP) |
| Password Unlock | Support (Up to 50 groups, 6-10 digits) |
| Virtual Passcode | Supports |
| Proximity Card Unlocking | Supports |
| Electric doorbell | Supports |
| Low Battery Alert | Supports |
| Anti-Tamper Alert | Supports |
| Anti-Test Alert | Supports (Enter 5 errors in 5 minutes, locked for 3 minutes) |
| With A3 Gateway (Optional) | |
| Temporary Passcode | Only supports with additional EZVIZ keypad |
| Remote Unlock | Supports |
| Real-Time Notification | Supports |
| EZVIZ Connect | Supports |
| In the box | |
| In the bo× | – Smart Lock DL01 Pro |
| – Mounting Plate ×2 | |
| – AA-sized Battery ×4 | |
| – Hexagon Wrench | |
| – Plus Driver | |
| – Screw Kit | |
| – Door Sensor | |
| – Double-sided Tape | |
| – Regulatory Information | |
| – Quick Start Guide | |
| Certifications | |
| Certifications | CE / RoHS / REACH / UL / WEEE |
