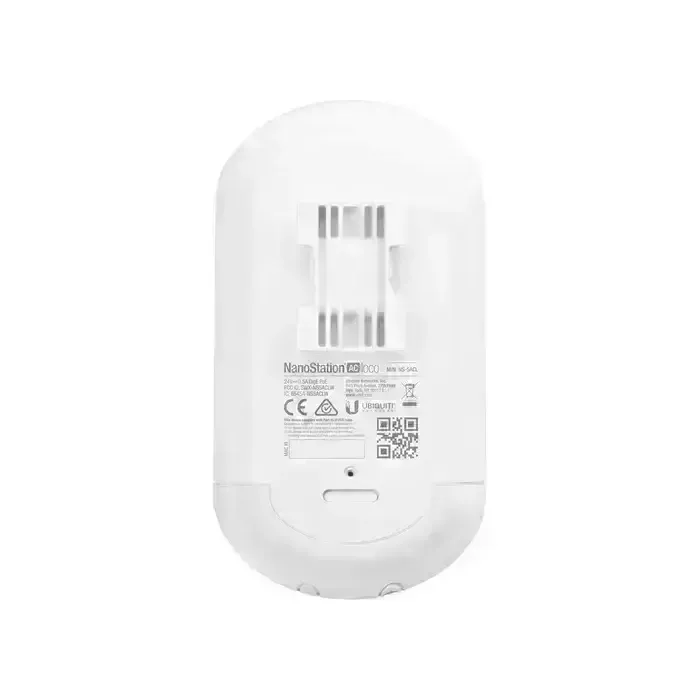

NanoStation AC loco 5 GHz airMAX ac (PoE Supply Not Included)
Product Specification
LAN Port 10/100/1000
- (1) 10/100/1000 Ethernet Port
التردد
560 MHz
Output power
- 25 dBm
LEDs
1 x Power LED indicator
MEMORY
64 MB DDR2
Dimension
- 7.05 x 3.05 x 2.33″ / 179 x 77.5 x 59.1 mm
الوزن
- 6.35 oz / 180 g
Mounting Kit
Pole-mount (kit included)
Max. Power Consumption
- 8.5 W
Reviews (0)
Shipping and Delivery
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Related products
airMAX PowerBeam 5AC 620
| Mechanical | |
|---|---|
| Dimensions | 620 x 620 x 386 mm (24.4 x 24.4 x 15.2") |
| Weight | 6.4 kg (14.1 lb) |
| Enclosure material | Outdoor UV-stabilized plastic |
| Mounting | Pole mount kit (Included) |
| Wind loading | Without radome: 1510 N at 200 km/h (340 lbf at 125 mph) With radome: 1830 N at 200 km/h (411 lbf at 125 mph) |
| Wind survivability | 200 km/h (125 mph) |
| Hardware | |
| Networking interface | (1) GbE RJ45 port |
| Power method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Power supply | 24V, 0.5A gigabit PoE adapter (Included) |
| Supported voltage range | 20-27V DC |
| Max. power consumption | 8.5W |
| ESD/EMP protection | Air/contact: ± 24 kV |
| LEDs | (1) Power, (1) LAN, (4) WLAN |
| Signal strength LEDs | Software-adjustable to correspond to custom RSSI levels |
| Salt fog test | IEC 68-2-11 (ASTM B117) Equivalent: MIL-STD-810 G method 509.5 |
| Vibration test | IEC 68-2-6 |
| Temperature shock test | IEC 68-2-14 |
| UV test | IEC 68-2-5 at 40° C (104° F) Equivalent: ETS 300 019-1-4 |
| Wind-driven rain test | ETS 300 019-1-4 Equivalent: MIL-STD-810 G method 506.5 |
| Ambient operating temperature | -40 to 70° C (-40 to 158° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE, RoHS |
| System | |
| Gain | 29 dBi |
| Max. VSWR | 1.6:1 |
| Channel sizes | PtP Mode: 10/20/30/40/50/60/80 MHz PtMP Mode: 10/20/30/40 MHz |
| Polarization | Dual linear |
| Operating Frequency (Mhz) | |
| Worldwide | 5150 - 5875 MHz |
| USA U-NII-1 U-NII-2A U-NII-2C U-NII-3 | 5150 – 5250 MHz 5250 – 5350 MHz 5470 – 5725 MHz 5725 – 5850 MHz |
| NDAA Compliant | Yes |
LTU Extreme-Range
| Mechanical | |
|---|---|
| Dimensions | 747 x 525 x 347 mm (29.4 x 20.7 x 13.7") |
| Weight | 3.2 kg (7.1 lb) |
| Enclosure material | Aluminum alloy, UV-stabilized polycarbonate |
| Mount material | UV-stabilized polycarbonate |
| Mount | Integrated pole mount (included) Pole compatibility: Ø35 to 60 mm (Ø1.4 to 2.4") |
| Wind loading | 1100 N at 200 km/h (247.29 lbf at 125 mph) |
| Weatherproofing | IPX6 |
| Hardware | |
| Networking interface | (1) GbE RJ45 port |
| Power method | Passive PoE 2-pair (4, 5+; 7, 8-) |
| Power supply | 24V, 0.5A gigabit PoE adapter (Included) |
| Supported voltage range | 22—27V DC |
| Max. power consumption | 9W |
| RF connections | Internal |
| LEDs | Power/Ethernet |
| Button | Factory reset |
| Ambient operating temperature | -40 to 55° C (-40 to 131° F) |
| Ambient operating humidity | 5 to 95% non-condensing |
| Certifications | FCC, IC, CE |
| NDAA Compliant | Yes |
| Software | |
| Modes | PtMP CPE, PtP* *1.5.1 and later 1.5.x series firmware. |
| Services | SNMP, SSH, dynamic DNS, webserver, remote log, ping watchdog |
| Utilities | airView®, speed test, alignment, discovery, ping, traceroute, cable test, constellation |
| Auto distance adjustment | Yes |
| Auto power adjustment | Yes |
| Network | Bridge/Router* mode *Router mode is available in PtMP CPE mode only. |
| Security | Yes |
| Statical reporting | Yes |
| Management interface | Bluetooth management for easy setup over UISP App WEB UI |
| Minimum software requirements | Any modern web browser iOS™ or Android™ based smartphone |
| System | |
| Maximum throughput | 900+ Mbps* *FW version 2.3.0 and later. |
| Encryption | WPA2-PSK (AES) |
| Uplink/downlink ratio | 25/75, 33/67, 50/50 |
| RF | |
| Operating frequency* | 5.15 to 5.95 GHz *Depends on regulatory region. |
| Max. conducted TX power | 25 dBm |
| Channel bandwidth | 10/20/30/40/50/60/80/100 MHz* *FW version 2.3.0 and later. |
| Antenna gain | 29 dBi |
| Isolation | 20 dB |
| Beamwidth | HPOL: 3 dB: 5.5°, 6 dB: 7.5° VPOL: 3 dB: 5.5°, 6 dB: 7.5° Elevation: 3 dB: 5.5°, 6 dB: 7.5° |
| Electrical downtilt | 0° |
LTU Rocket
| Mechanical | |
|---|---|
| Dimensions | 244 x 82 x 48 mm (9.6 x 3.2 x 1.9") |
| Weight | 468 g (1 lb) |
| Enclosure material | Diecast aluminum, polycarbonate |
| Mount material | Metal, polycarbonate |
| Mounting | Integrated pole mount (Kit included) GPS pole mount (Kit included) Rocket mount compatible |
| Weatherproofing | IP67 |
| Hardware | |
| Networking interface | (2) GbE RJ45 ports |
| Power method | Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) Passive PoE 2-pairs (4, 5+; 7, 8-) or (1, 2+; 3, 6-) |
| Power supply | 24V, 1A gigabit PoE adapter (Included) |
| Supported voltage range | 18—54V DC |
| Max. power consumption | 24W |
| RF connections | (2) RP-SMA weatherproof (CH0, CH1) (1) SMA weatherproof (GPS) |
| GPS | Yes |
| GPS antenna | External magnetic base |
| Button | Factory reset |
| Ambient operating temperature | -40° to 55° C (-40° to 131° F) |
| Certifications | CE, FCC, IC |
| NDAA Compliant | Yes |
| Software | |
| Mode | PtMP BaseStation radio |
| Services | SNMP, SSH, dynamic DNS, webserver, remote log, ping watchdog |
| Utilities | airView®, speed test, alignment, discovery, ping, traceroute, cable test, constellation |
| Auto distance adjustment | Yes |
| Auto power adjustment | Yes |
| Security | Yes |
| Statical reporting | Yes |
| Management interface | Bluetooth management for easy setup over UISP App WEB UI |
| Minimum software requirements | Any modern web browser iOS™ or Android™ based smartphone |
| System | |
| Maximum throughput | 900+ Mbps* *FW version 2.3.0 and later. |
| Packets per second | 2+ million |
| Supported clients count | 100+ |
| Maximum range | 100+ km* * Throughput and range values may vary depending on the environmental conditions. |
| Encryption | WPA2-PSK (AES) |
| Uplink/Downlink ratio | 25/75, 33/67, 50/50 |
| RF | |
| Operating frequency* US/CA U-NII-1 U-NII-2A U-NII-2C U-NII-3 Worldwide | 5150 - 5250 MHz 5250 - 5350 MHz 5470 - 5725 MHz 5725 - 5850 MHz 4800 - 6200 MHz *Depends on regulatory region. |
| Max. conducted TX power | 29 dBm |
| Channel bandwidth | 10/20/30/40/50/60/80/100* MHz *FW version 2.3.0 and later. |
| Management radio | 2400 - 2483.5 MHz |
RG-EST100-E, 2.4GHz Dual-stream 500m Wireless Bridge
Highlight Features
- RG-EST100-E can easily transmit data from 500m away in real time
- Factory-free configuration, without complex alignment
- IP55 Weatherproof, -30℃~60℃ guarantee stable operating at outdoor or elevator environment
- Support maximum 10 * 3MP cameras loading at 100m, 5 * 3MP cameras loading at 500m
- Visually Intuitive statistics monitoring on Ruijie cloud, easy maintenance at remotely
RG-EST350 V2, 5GHz Dual-stream 802.11ac 5KM Wireless Bridge
Highlight Features
- RG-EST350 V2 can easily transmit data from 5KM away in real time
-
Factory-paired bridges for long-distance installation, without complex alignment
- IP54 Weatherproof, -30℃~65℃ guarantee stable operating
- Support maximum 45 * 2MP cameras loading at 3KM, 20 * 2MP cameras loading at 5KM
- Visually Intuitive statistics monitoring on Ruijie cloud, easy maintenance at remotely
Ubiquiti Networks LiteBeam 5AC Gen2
Product Specification
Wind Survivability
- 200 km/h (125 mph)
Wind Loading
- 275 N @ 200 km/h (61.8 lbf @ 125 mph)
Operating Frequency
- Worldwide: 5150-5875 MHz USA: U-NII-1: 5150-5250 MHz, U-NII-2-A: 5250-5350 MHz, U-NII-2C: 5470-5725 MHz, U-NII-3: 5725-5850 MHz
PoE
- Passive PoE (Pairs 4, 5+; 7, 8 Return)
LAN Port 10/100/1000
- (1) 10/100/1000 Ethernet Port
Power Supply
24 V, 0.3 A Gigabit PoE adapter (included)
Dimension
- 358 x 271.95 x 272.50 mm (14.09 x 10.71 x 10.73")
الوزن
- Without Mount: 800 g (1.76 lb), With Mount 980 g (2.16 lb)
Max. Power Consumption
- 7W
Operating Temperature
- -40 to 70° C (-40 to 158° F)
