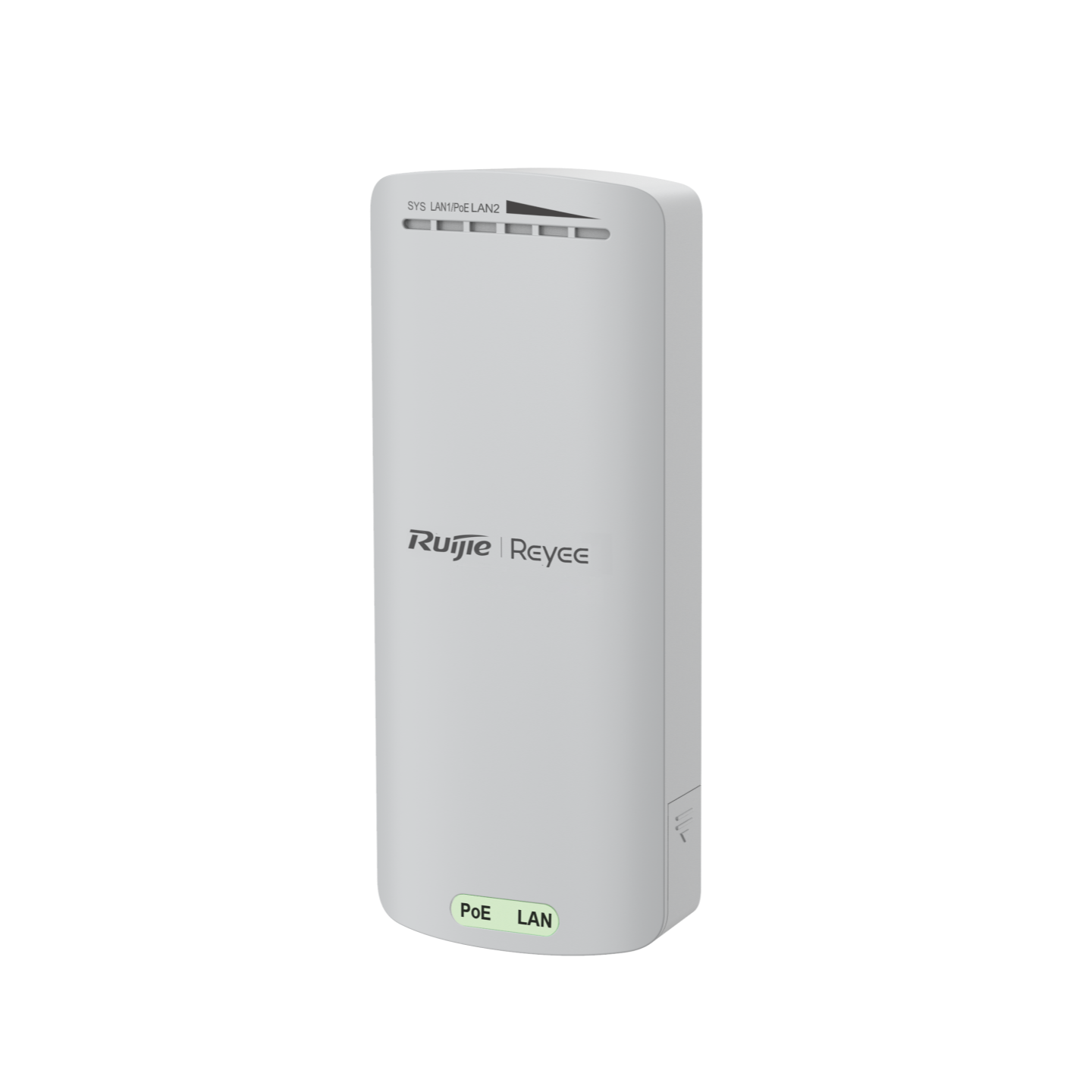

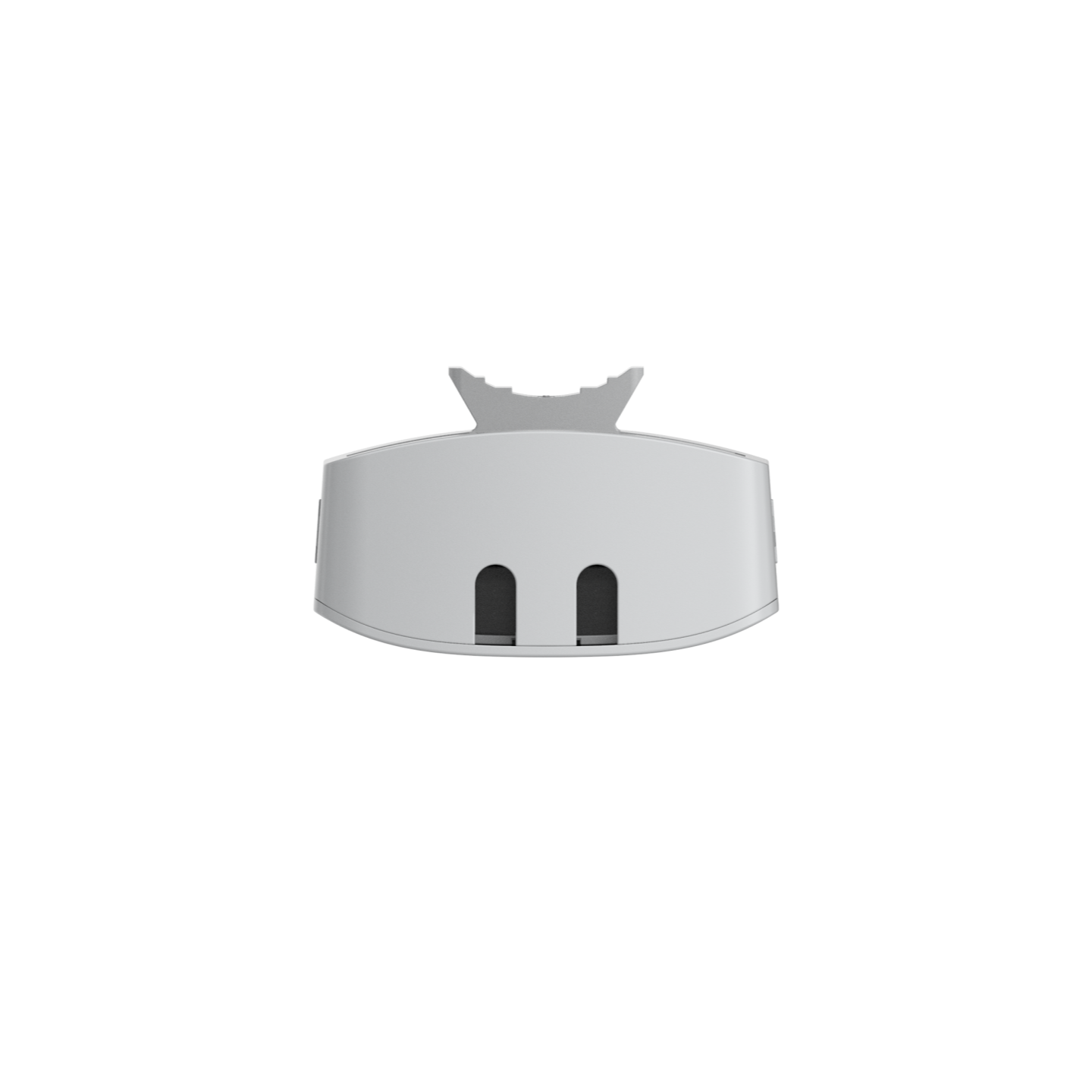

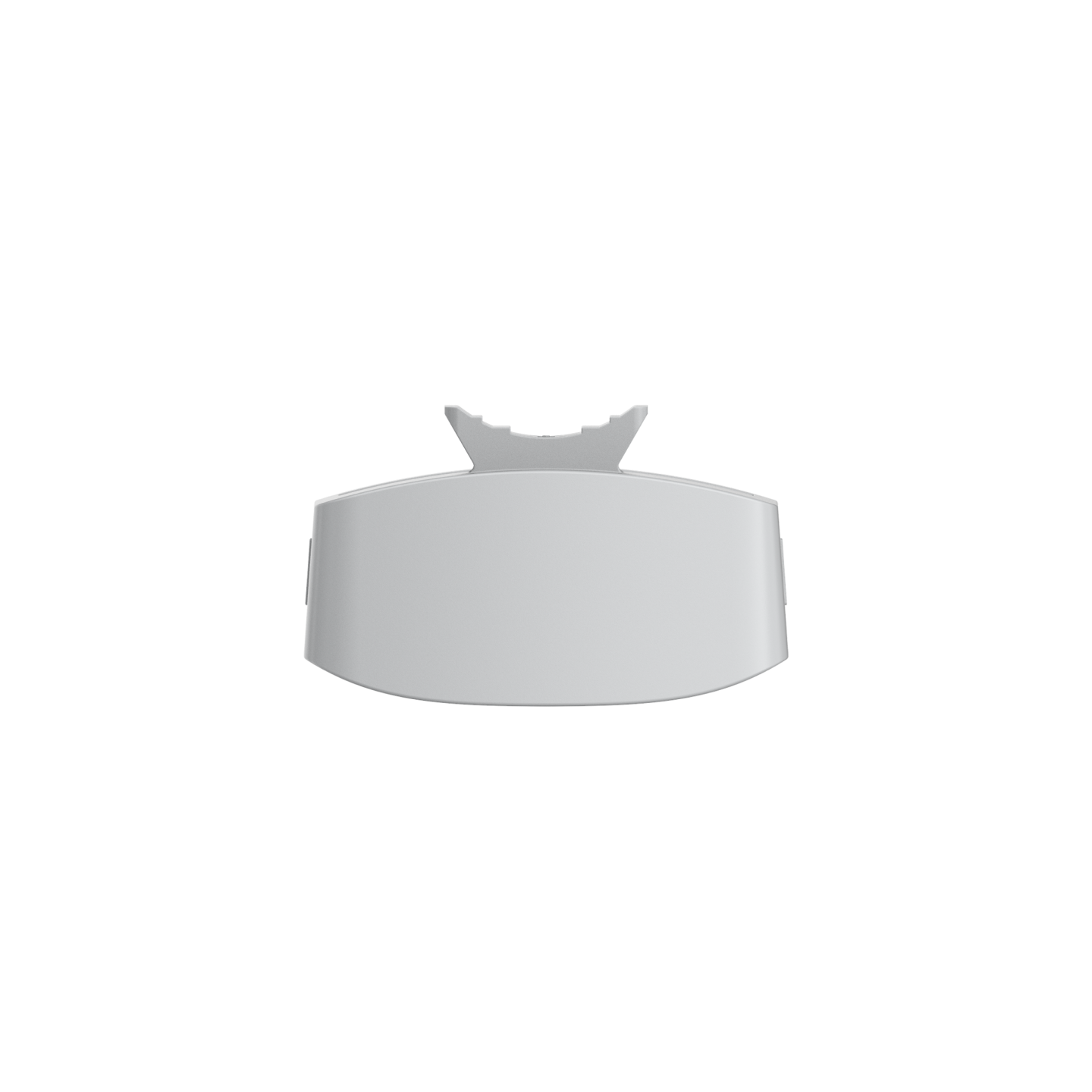

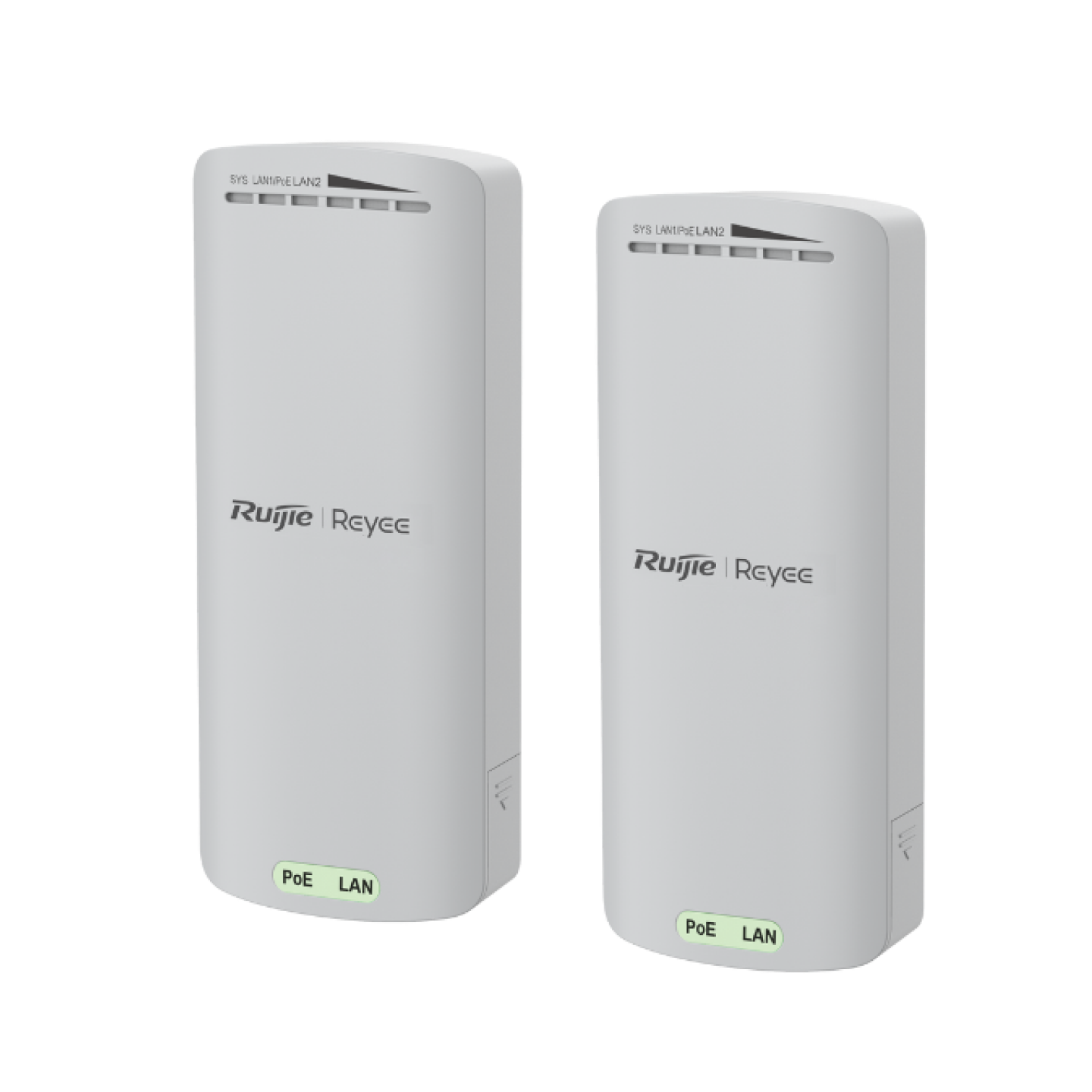

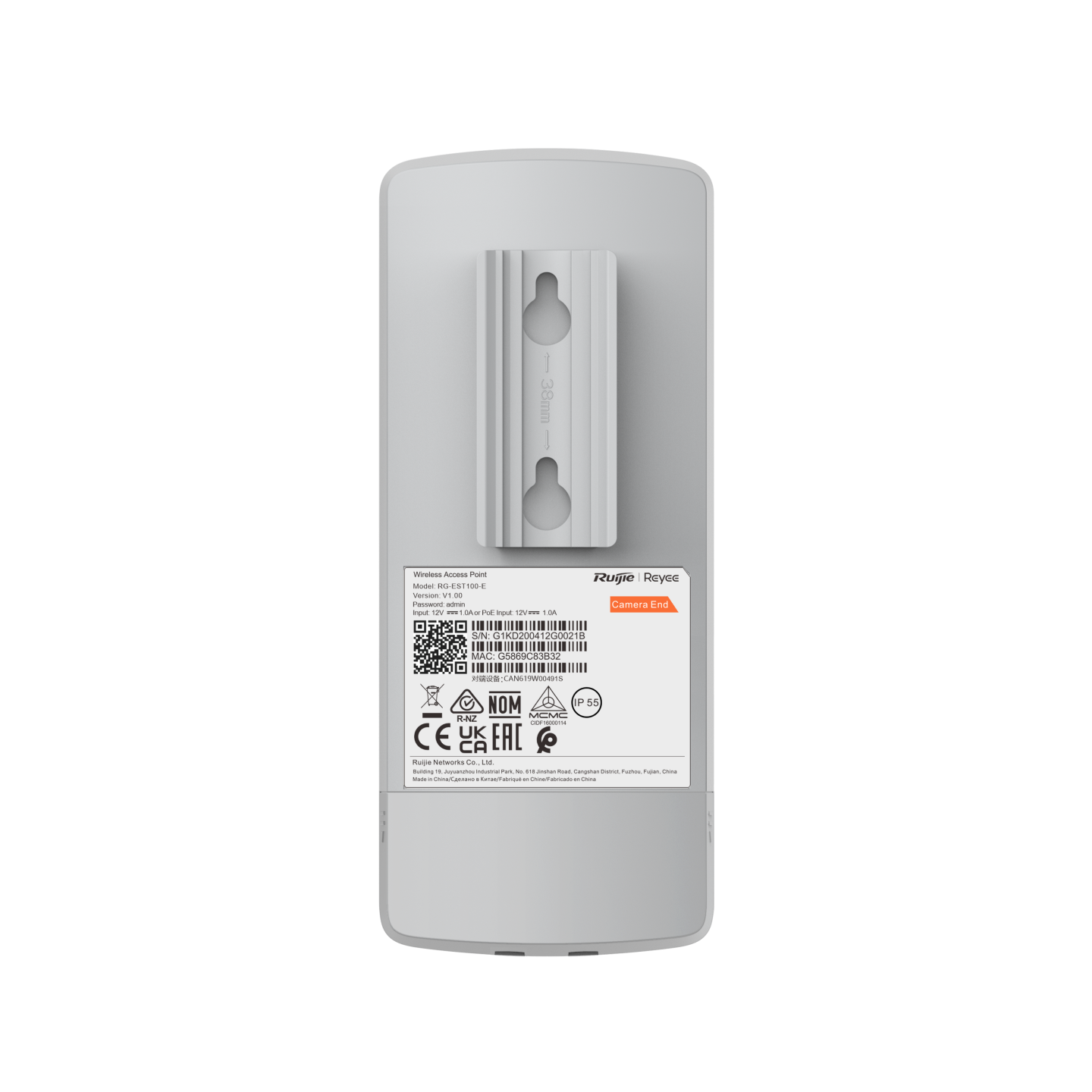

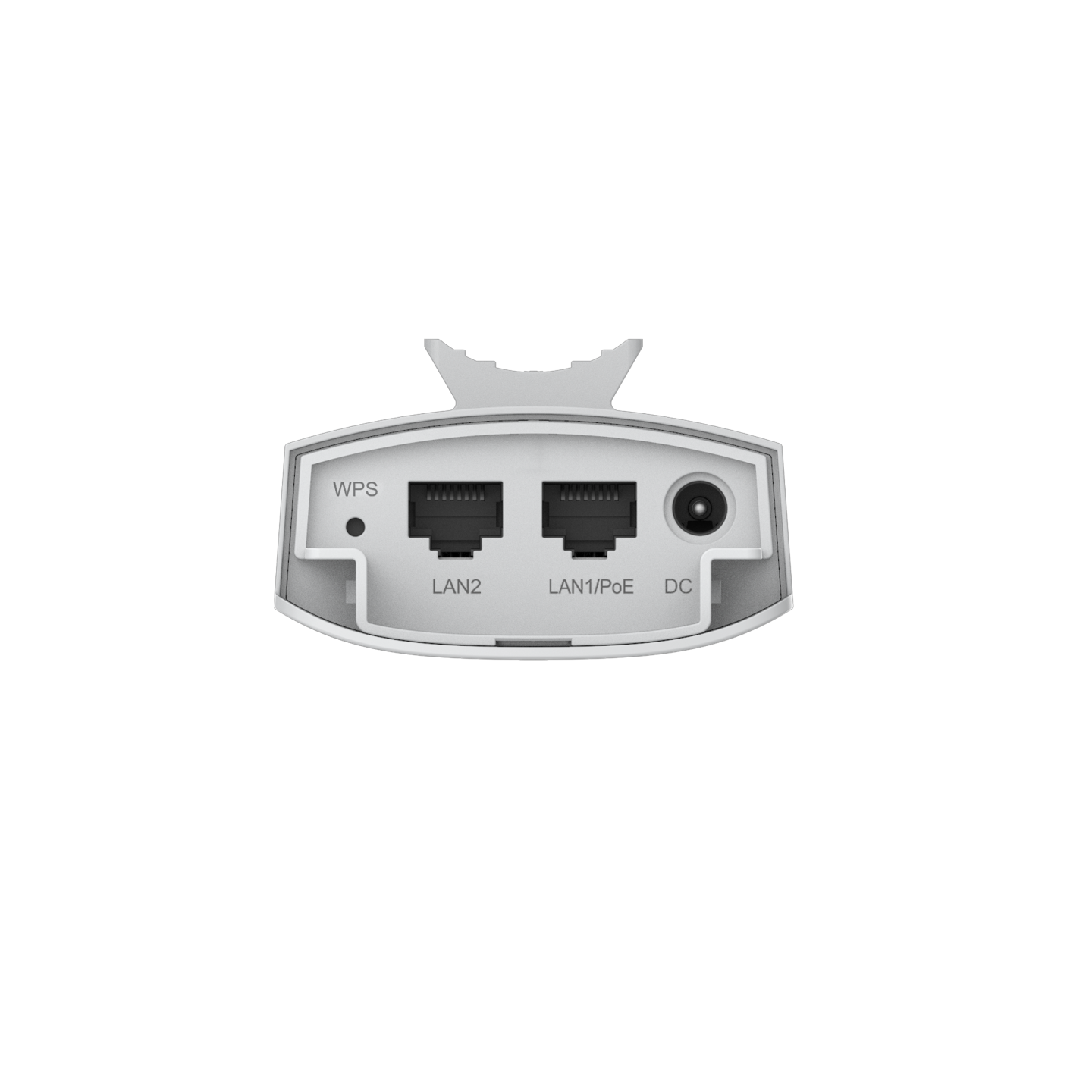

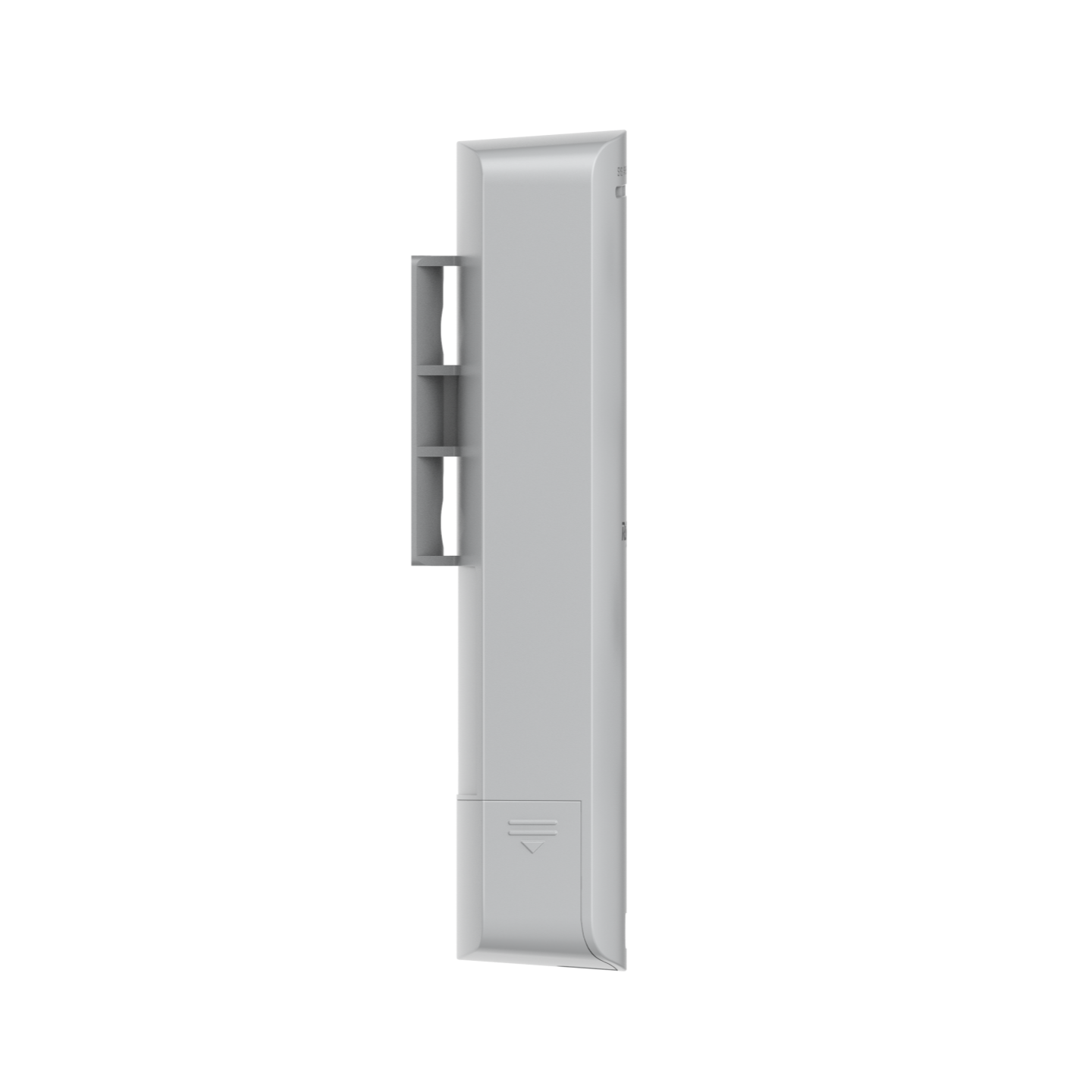

RG-EST100-E, 2.4GHz Dual-stream 500m Wireless Bridge
Highlight Features
- RG-EST100-E can easily transmit data from 500m away in real time
- Factory-free configuration, without complex alignment
- IP55 Weatherproof, -30℃~60℃ guarantee stable operating at outdoor or elevator environment
- Support maximum 10 * 3MP cameras loading at 100m, 5 * 3MP cameras loading at 500m
- Visually Intuitive statistics monitoring on Ruijie cloud, easy maintenance at remotely
Reviews (0)
Shipping and Delivery
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Related products
airMAX NanoBeam M5
| Mechanical | |
|---|---|
| Dimensions | 140 x 140 x 54 mm (5.5 x 5.5 x 2.1") |
| Weight | 320 g (0.7 lb) |
| Enclosure material | Outdoor UV-stabilized plastic |
| Mounting | Pole-mount (Kit included), wall-mount |
| Wind loading | 21.4 N @ 200 km/h (4.8 lbf @ 125 mph) |
| Wind survivability | 200 km/h (125 mph) |
| Mechanical | |
| Networking interface | (1) 10/100 MbE RJ45 port |
| Power method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Power supply | 24V, 0.5A PoE adapter (Included) |
| Supported voltage range | 20–27V DC |
| Max. power consumption | 6W |
| ESD/EMP protection | Air/contact: ± 24 kV |
| LEDs | (1) Power, (1) LAN, (4) WLAN, signal srtength |
| Salt fog test | IEC 68-2-11 (ASTM B117) Equivalent: MIL-STD-810 G Method 509.5 |
| Vibration test | IEC 68-2-6 |
| Temperature shock test | IEC 68-2-14 |
| UV test | IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4 |
| Wind-driven rain test | ETS 300 019-1-4, Equivalent: MIL-STD-810 G method 506.5 |
| Ambient operating temperature | -40 to 70° C (-40 to 158° F) |
| Ambient operating humidity | 5 to 95% Noncondensing |
| Certifications | FCC, IC, CE, RoHS |
| NDAA Compliant | Yes |
| System | |
| Gain | 16 dBi |
| Channel sizes | 5/8/10/20/30/40 MHz |
| Max. VSWR | 1.5:1 |
| Polarization | Dual linear |
| Operating Frequency MHz | |
| Worldwide | 5150 - 5875 |
| USA U-NII-1 U-NII-2A U-NII-2C U-NII-3 | 5150 - 5250 5250 - 5350 5470 - 5725 5725 - 5850 |
LTU Instant (5-pack)
| Mechanical | |
|---|---|
| Dimensions | Feed: 201.5 x 64.2 x 56.2 mm (7.9 x 2.5 x 2.2") Antenna: 358 x 271.9 x 288.5 mm (14.1 x 10.7x 11.4") |
| Weight | Feed: 215 g (7.6 oz) Antenna: 890 g (2 lb) Antenna with mount: 1.1 kg (2.4 lb) |
| Enclosure material | UV-stabilized polycarbonate |
| Wind loading | 275 N at 200 km/h (61.8 lbf at 125 mph) |
| Weatherproofing | IPX6 |
| Hardware | |
| Networking interface | (1) GbE RJ45 port |
| Power method | Passive PoE 2-pair (4, 5+; 7, 8-) |
| Power supply | 24V, 0.5A Gigabit PoE adapter (Included) |
| Supported voltage range | 22—27V DC |
| Max. power consumption | 9W |
| RF connections | Internal |
| LEDs | Power/Ethernet |
| Ambient operating temperature | -40 to 60° C (-40 to 140° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE |
| NDAA Compliant | Yes |
| Software | |
| Modes | PtMP CPE, PtP* *1.5.1 and later 1.5.x series firmware. |
| Services | SNMP, SSH, dynamic DNS, webserver, remote log, ping watchdog |
| Utilities | airView®, speed test, alignment, discovery, ping, traceroute, cable test, constellation |
| Auto distance adjustment | Yes |
| Auto power adjustment | Yes |
| Network | Bridge/Router* mode *Router mode is available in PtMP CPE mode only. |
| Security | Yes |
| Statical reporting | Yes |
| Management interface | Bluetooth management for easy setup over UISP App WEB UI |
| Minimum software requirements | Any modern web browser iOS™ or Android™ based smartphone |
| System | |
| Maximum throughput | 900+ Mbps* *FW version 2.3.0 and later. |
| Encryption | WPA2-PSK (AES) |
| Uplink/downlink ratio | 25/75, 33/67, 50/50 |
| RF | |
| Operating frequency* | 5.15 to 5.95 GHz *Depends on regulatory region. |
| Max. conducted TX power | 22 dBm (per chain) |
| Channel bandwidth | 10/20/30/40/50/60/80/100 MHz* *FW version 2.3.0 and later. |
| Antenna gain | 22 dBi |
| Isolation | 20 dB |
LTU Rocket
| Mechanical | |
|---|---|
| Dimensions | 244 x 82 x 48 mm (9.6 x 3.2 x 1.9") |
| Weight | 468 g (1 lb) |
| Enclosure material | Diecast aluminum, polycarbonate |
| Mount material | Metal, polycarbonate |
| Mounting | Integrated pole mount (Kit included) GPS pole mount (Kit included) Rocket mount compatible |
| Weatherproofing | IP67 |
| Hardware | |
| Networking interface | (2) GbE RJ45 ports |
| Power method | Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) Passive PoE 2-pairs (4, 5+; 7, 8-) or (1, 2+; 3, 6-) |
| Power supply | 24V, 1A gigabit PoE adapter (Included) |
| Supported voltage range | 18—54V DC |
| Max. power consumption | 24W |
| RF connections | (2) RP-SMA weatherproof (CH0, CH1) (1) SMA weatherproof (GPS) |
| GPS | Yes |
| GPS antenna | External magnetic base |
| Button | Factory reset |
| Ambient operating temperature | -40° to 55° C (-40° to 131° F) |
| Certifications | CE, FCC, IC |
| NDAA Compliant | Yes |
| Software | |
| Mode | PtMP BaseStation radio |
| Services | SNMP, SSH, dynamic DNS, webserver, remote log, ping watchdog |
| Utilities | airView®, speed test, alignment, discovery, ping, traceroute, cable test, constellation |
| Auto distance adjustment | Yes |
| Auto power adjustment | Yes |
| Security | Yes |
| Statical reporting | Yes |
| Management interface | Bluetooth management for easy setup over UISP App WEB UI |
| Minimum software requirements | Any modern web browser iOS™ or Android™ based smartphone |
| System | |
| Maximum throughput | 900+ Mbps* *FW version 2.3.0 and later. |
| Packets per second | 2+ million |
| Supported clients count | 100+ |
| Maximum range | 100+ km* * Throughput and range values may vary depending on the environmental conditions. |
| Encryption | WPA2-PSK (AES) |
| Uplink/Downlink ratio | 25/75, 33/67, 50/50 |
| RF | |
| Operating frequency* US/CA U-NII-1 U-NII-2A U-NII-2C U-NII-3 Worldwide | 5150 - 5250 MHz 5250 - 5350 MHz 5470 - 5725 MHz 5725 - 5850 MHz 4800 - 6200 MHz *Depends on regulatory region. |
| Max. conducted TX power | 29 dBm |
| Channel bandwidth | 10/20/30/40/50/60/80/100* MHz *FW version 2.3.0 and later. |
| Management radio | 2400 - 2483.5 MHz |
Ubiquiti Networks PowerBeam 5AC Gen2 420mm
Product Specification
Wind Survivability
- 200 km/h (125 mph)
Wind Loading
- 380 N @ 200 km/h (85.4lbf @ 125 mph)
Operating Frequency
- Worldwide: 5150-5875 MHz USA: U-NII-1: 5150-5250 MHz, U-NII-2-A: 5250-5350 MHz, U-NII-2C: 5470-5725 MHz, U-NII-3: 5725-5850 MHz
PoE
- Passive PoE (Pairs 4, 5+; 7, 8 Return)
LAN Port 10/100/1000
- (1) 10/100/1000 Ethernet Port
Enclosure
- Antenna Feed: Outdoor UV Stabilized Plastic Dish Reflector: Powder-Coated SPCC
Rate Voltage
20 to 26VDC
Processor Speed
MIPS 74Kc
Power Supply
24V, 0.5A Gigabit PoE Adapter (Included)
Dimension
- 420 x 420 x 230mm (16.54 x 16.54 x 9.06")
الوزن
- 2.22 kg (4.89 lb)
Mounting Kit
Pole-mount (kit included)
Max. Power Consumption
- 8.5W
Operating Temperature
- -40 to 70 C (-40 to 158 F)
