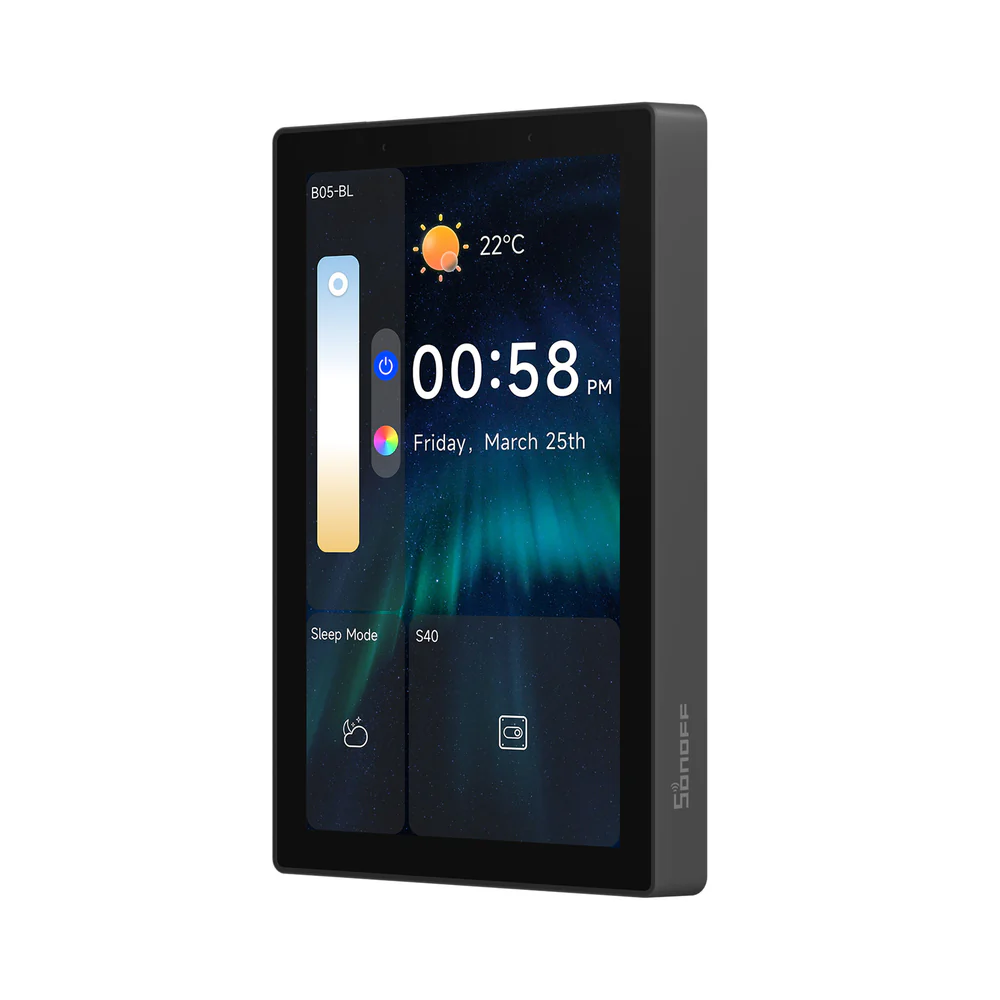

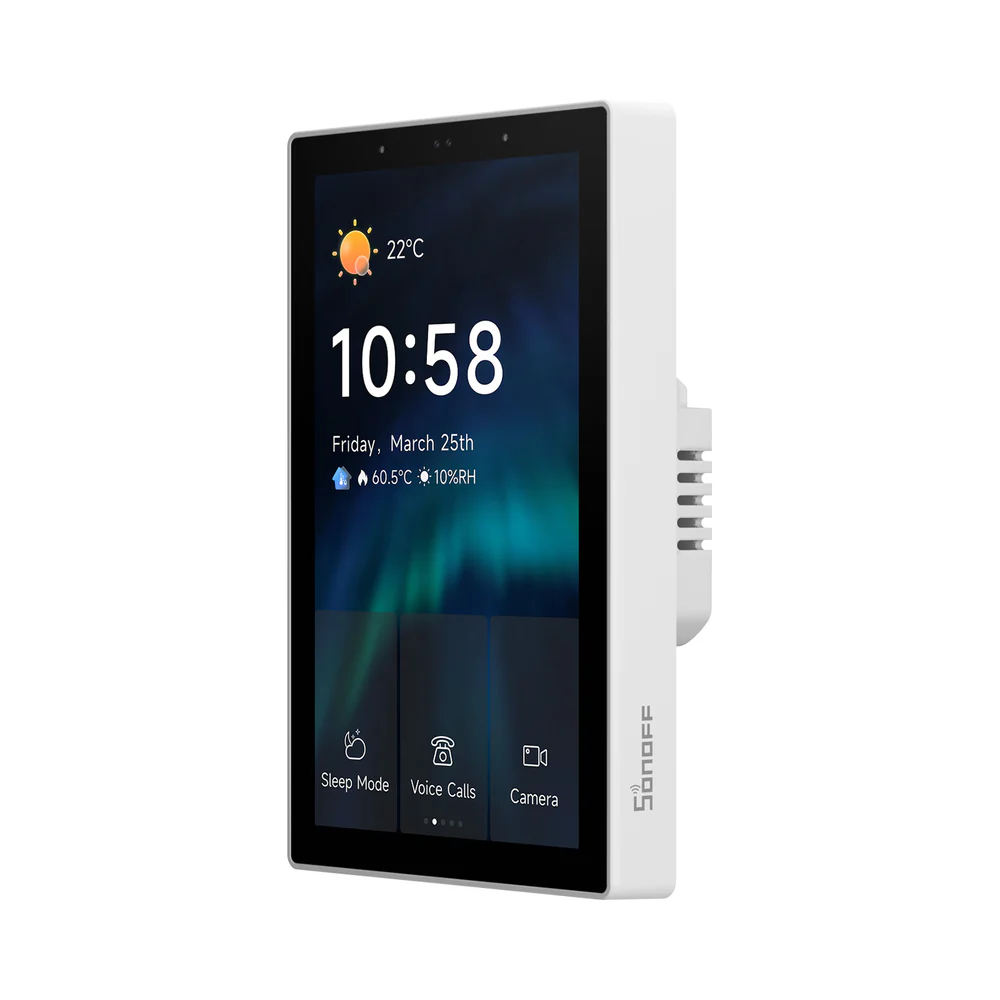

SONOFF NSPanel Pro Smart Home Control Panel-120 Type
【Larger All-in-One Panel】Control your smart home from a 4.7-inch display. Whether you’re adjusting lighting, monitoring energy use, checking camera feeds, managing the thermostat, or even browsing the web—everything is just a tap away.
【Zigbee Hub Built-In】Add Zigbee devices in batches directly from the screen. With Zigbee 3.0 protocol, enjoy stable, wide-range connectivity. Sub-devices can be voice-controlled via Alexa, Google Home, and others.
【Smart Security】Set up to 3 customizable arming modes. When a sensor is triggered, NSPanel Pro activates an alarm and immediately pushes a notification to your phone for real-time alerts.
【Energy Monitoring】Track power usage by linking devices with energy monitoring capabilities. View detailed daily consumption data for up to a week.
【Web Access Shortcut】Save your favorite websites directly on the panel. Whether you’re streaming music, watching videos, or browsing tips, launch them instantly with one tap.
Reviews (0)
Shipping and Delivery
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Related products
CP3 2K
| Specifications | |
|---|---|
| Model | CS-CP3-R101-2D3WPB |
| Doorbell Camera Parameters | |
| Image Sensor | 1/2.8" Progressive Scan CMOS (Supports low light sensitivity) |
| Lens | 2.3 mm @ F2.2, Viewing angle: 162° (Diagonal) |
| Day / Night Switch | IR-cut filter with auto-switching |
| Video Parameters | |
| Max. Resolution | 3MP |
| DNR | 2D/3D DNR |
| Video Compression | H.264/H.265 |
| Frame Rate | Max: 15fps; Self-Adaptive During Network Transmission |
| PIR Sensor | |
| Sensing Angle | 100° |
| Sending Distance | Max. 2m (1m/1.5m/2m Sensitivity Adjustable) |
| Sensitivity | User Adjustable (High, Medium and Low Sensitivity) |
| Interface | |
| Audio Input | Built-in high sensitivity microphone |
| Audio Output | Build-in high-power speaker |
| Reset Button | Yes |
| Network Parameters | |
| Protocol | EZVIZ cloud proprietary protocol |
| Interface Protocol | EZVIZ cloud proprietary protocol |
| Functions | |
| Intelligent Alarm | Smart Human Motion Detection + PIR Detection |
| Tamper Alarm | Sound and light Anti-Tamper Alarm (Supports sending alerts to the smartphone) |
| Video Intercom | Long-distance video two-way talk |
| Wi-Fi Parameters | |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20MHz |
| Security | 64/128-bit WEP,WPA/WPA2, WPA-PSK/WPA2-PSK, WPS |
| Transmission Rate | 11b: 11Mbps,11g: 54Mbps,11n: 150Mbps |
| Doorbell | |
| Operation Conditions | -10°C to 45°C, Humidity 95% or less (non-condensing) |
| Weight | 194 g |
| Size | 149 × 57 × 31.8 mm |
| Battery Capacity | 5,000 mAh Rechargeable Lithium Battery |
| Chime | |
| Size | 101 × 64.2 × 32 mm |
| Power Supply | AC 110 ~ 240V |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
| Audio Output | 72dB within 1 meter |
| Storage | Supports microSD card (Up to 256 GB) |
| Weight | 83.6 g |
| In the box | |
| In the box | - CP3 Video Doorbell |
| - Chime | |
| - Power Cable | |
| - Drill Template | |
| - Mounting Plate | |
| - Inclined Mounting Plate × 2 | |
| - Screwdriver and Screw Kit × 2 | |
| - Foam Sticker | |
| - Plate Foam | |
| - Pin | |
| - U-Shaped Wire and Wire Connector × 3 | |
| - Installation Guide | |
| - Regulatory Information | |
| - Quick Start Guide | |
| Certifications | |
| Certifications | CE / WEEE / ROHS / REACH |
DL06 Unlock your door right at your hand
| Specifications | |
|---|---|
| Model | CS-DL06-R100-WBCP-GR |
| Material and Specification | |
| Panel Material | Aluminum alloy |
| Panel Size | 331 × 40 × 25.8 mm |
| Color | Metallic grey |
| Lock Body Type | Lift-up lock body |
| Lock Cylinder | 2885 / 3585 / 4585 |
| Weatherproof | IP55 (front panel) |
| Emergency Charging | Type-C |
| Working Power | 1,450 mAh Rechargeable Lithium Battery |
| Technical Specification | |
| Unlocking Method | Fingerprint, passcode, proximity card, mechanical key, Bluetooth remote control，Bluetooth key via EZVIZ App, temporary codes, remote unlock |
| User Capacity | 50 pcs |
| Fingerprint Capacity | 50 pcs |
| Passcode Capacity | 50 pcs |
| Card Capacity | 50 pcs |
| Communication Methods | 2.4GHz Wi-Fi, Bluetooth |
| Temporary Access Codes | Supports |
| Anti-Peeping Codes | Supports, Max. 20 digits |
| Low Battery Warning | Supports |
| Privacy Mode | Supports |
| User Management | Supports |
| Real Time Notification | Supports |
| Anti-Test Locking | Supports, enter error 5 times within 5 min, locking 3 min. |
| Anti-Tamper Alarm | Supports |
| Remote Control | Supports |
| Supported Door Thickness | 30-120 mm |
| Working Temperature | -10°C~55°C |
| Operating Humidity | 10%~95% |
| In the box | |
| In the box | - DL06 Front Panel |
| - DL06 Rear Panel | |
| - Hole Templet | |
| - Lock Body | |
| - Standard Screw Bag | |
| - Lithium Battery | |
| - Mechanical Key × 2 | |
| - Square Rod | |
| - Proximity Card × 2 | |
| - Screwdriver | |
| - Regulatory Information | |
| - Quick Start Guide | |
| Certifications | |
| Certifications | CE (EMC / LVD / RED / ROHS) / REACH SVHC / WEEE |
EZVIZ DL01 Pro Smart Lock
| Specifications | |
|---|---|
| Model | CS-DL01 Pro |
| Technical Specification | |
| Product Material | Aluminum |
| Dimensions | 127 × 57 × 63 mm |
| Communication | EZVIZ Connect ZigBee connection (With optional gateway A3) |
| Keyless Unlocking | Support |
| Bluetooth Key | Supports (Up to 50 groups) |
| Working Power | 4 AA Alkaline Batteries |
| Working Condition | 25℃~55℃, Humidity 10%~95% (Non-condensing) |
| APP Function | |
| Automatic Locking | Supports (With the included door sensor for debugging) |
| Lock Status Check | Supports |
| User Management | Supports |
| Message Notification | Supports |
| Door-Left-Open Alert | Supports |
| Privacy Mode | Supports (Enable via EZVIZ APP) |
| Low Battery Alert | Supports |
| Front Panel Function | |
| Fingerprint Unlock | Supports (Up to 50 groups, apply to CS-DL01BCP) |
| Password Unlock | Support (Up to 50 groups, 6-10 digits) |
| Virtual Passcode | Supports |
| Proximity Card Unlocking | Supports |
| Electric doorbell | Supports |
| Low Battery Alert | Supports |
| Anti-Tamper Alert | Supports |
| Anti-Test Alert | Supports (Enter 5 errors in 5 minutes, locked for 3 minutes) |
| With A3 Gateway (Optional) | |
| Temporary Passcode | Only supports with additional EZVIZ keypad |
| Remote Unlock | Supports |
| Real-Time Notification | Supports |
| EZVIZ Connect | Supports |
| In the box | |
| In the bo× | - Smart Lock DL01 Pro |
| - Mounting Plate ×2 | |
| - AA-sized Battery ×4 | |
| - Hexagon Wrench | |
| - Plus Driver | |
| - Screw Kit | |
| - Door Sensor | |
| - Double-sided Tape | |
| - Regulatory Information | |
| - Quick Start Guide | |
| Certifications | |
| Certifications | CE / RoHS / REACH / UL / WEEE |
EZVIZ Smart Lock DL05, 7-in-1 Keyless Door Lock, with Fingerprint Access – Secure Keyless Entry, Multiple Unlock Options, Instant Alerts, Weatherproof, Child Security, Privacy Control 5085
| Brand | EZVIZ |
| Lock type | Biometric |
| Item dimensions L x W x H | 6.7 x 2.7 x 36 centimeters |
| Recommended uses for product | Home, Residential Door |
| Style | modern |
| Colour | Grey 5085 |
| Included components | Lock body, lock cylinder, accessories, manual, batteries, RFID cards, keys |
| Control method | App |
| Connectivity protocol | Wi-Fi |
| Manufacturer | isvys |
SONOFF MINI Dry Wi-Fi Smart Switch | MINI-D
【Matter-Compatible – Cross-Platform Smart Home Integration】The SONOFF MINI-D is a Matter-certified smart switch, designed for seamless integration with Matter-enabled platforms, including Amazon Alexa, Google Home, Apple Home, Home Assistant, and more. Enjoy effortless control of smart devices from different brands, all through one unified ecosystem. Build a truly interoperable smart home with Matter technology.
【Flexible AC/DC Power Supply Support】Designed for versatility, the MINI-D supports powered by AC (100–240V) or DC (12–48V) power sources, enabling easy installation in residential, industrial, or custom control environments. Perfect for various wiring scenarios and locations.
【Dry Contact Output – Supports NO & NC Configurations】The SONOFF MINI-D features dry contact output with both Normally Open (NO) and Normally Closed (NC) options, allowing flexible control of a wide range of signal-based systems. It’s ideal for operating boilers, garage door openers, access control panels, and other devices that rely on non-voltage triggering. Perfect for integrating smart control into traditional low-voltage or relay-based systems.
【Optimized for DC Low-Power Motors (Max 8W)】Specially engineered to control low-power DC motors or solenoid valves (up to 8W), the MINI-D offers an ideal solution for smart irrigation, motorized curtains, or gate systems that run on low-voltage DC circuits.
【Integrated with Contactor Control – Manage High-Power Loads Safely】When paired with a contactor, MINI-D allows a low-power control circuit to safely switch high-power electrical systems, such as industrial equipment or HVAC units. This not only increases safety and energy efficiency but also allows precise smart control over large loads.
SONOFF SwitchMan Zigbee Smart Wall Switch | ZBM5 80/86 Type
【Supports Both No Neutral & With Neutral Wire】Designed to fit your home’s wiring setup, the ZBM5 connects and uses effortlessly whether a neutral wire is available or not.
【Compatible with Multiple Zigbee Hubs】Easily integrates with SONOFF Zigbee hubs like SONOFF NSPanel Pro, iHost, ZB Bridge-P/U, and ZBDongle-E/P for seamless smart home control.
【Works with Home Assistant】Perfect for DIY automation lovers—integrates smoothly with third-party open-source platforms, such as Home Assistant via compatible Zigbee dongles (e.g., SONOFF ZBDongle-P/E).
【Detach Relay Mode】With this function enabled, you can still remotely control your smart devices through "Smart Scenes" even when the physical switch is turned off. *Supports connecting smart lights only in the neutral required mode.
【Full Smart Features】Enjoy remote app control, voice commands, scheduling, smart scenes, and more for a truly convenient smart home experience.
SONOFF ZBMINI Extreme Zigbee Smart Switch ZBMINIL2
【Ultra-Compact Zigbee Smart Switch – Fits Anywhere】Meet ZBMINI Extreme, the tiniest Zigbee 3.0 smart switch, designed to fit seamlessly into small EU/86/120 type mounting boxes. Ideal for retrofit installations and tight spaces.
【No Neutral Wire Needed – Works with External Switches】Compatible with various external wall switches, including rocker switches and push buttons. No neutral wire required, making it perfect for older homes and quick installations.
【Optimized for Low-Wattage Bulbs】Handles low-power light loads as small as 3W without requiring an anti-flicker module, ensuring maximum compatibility with modern energy-saving lighting systems.
【Versatile Smart Scene Applications – Smart Life, Simplified】Enjoy versatile smart scene applications with ZBMINI Extreme. Two-way control is ideal for staircase lighting and other dual-switch setups. Easily set countdown, schedule, or loop timers for personalized automation. Voice control is supported with Amazon Alexa and Google Assistant, enabling hands-free operation. You can also trigger other Zigbee devices based on the switch state, creating a truly intelligent and automated smart home experience.
【Works with Home Assistant Smart Home Systems】Easily integrate with third-party platforms like Home Assistant (ZHA & Zigbee2MQTT). Effortless Zigbee pairing through the SONOFF ZBDongle series, seamless automation setup, and full smart ecosystem compatibility make it the ideal choice for both smart home beginners and power users.
