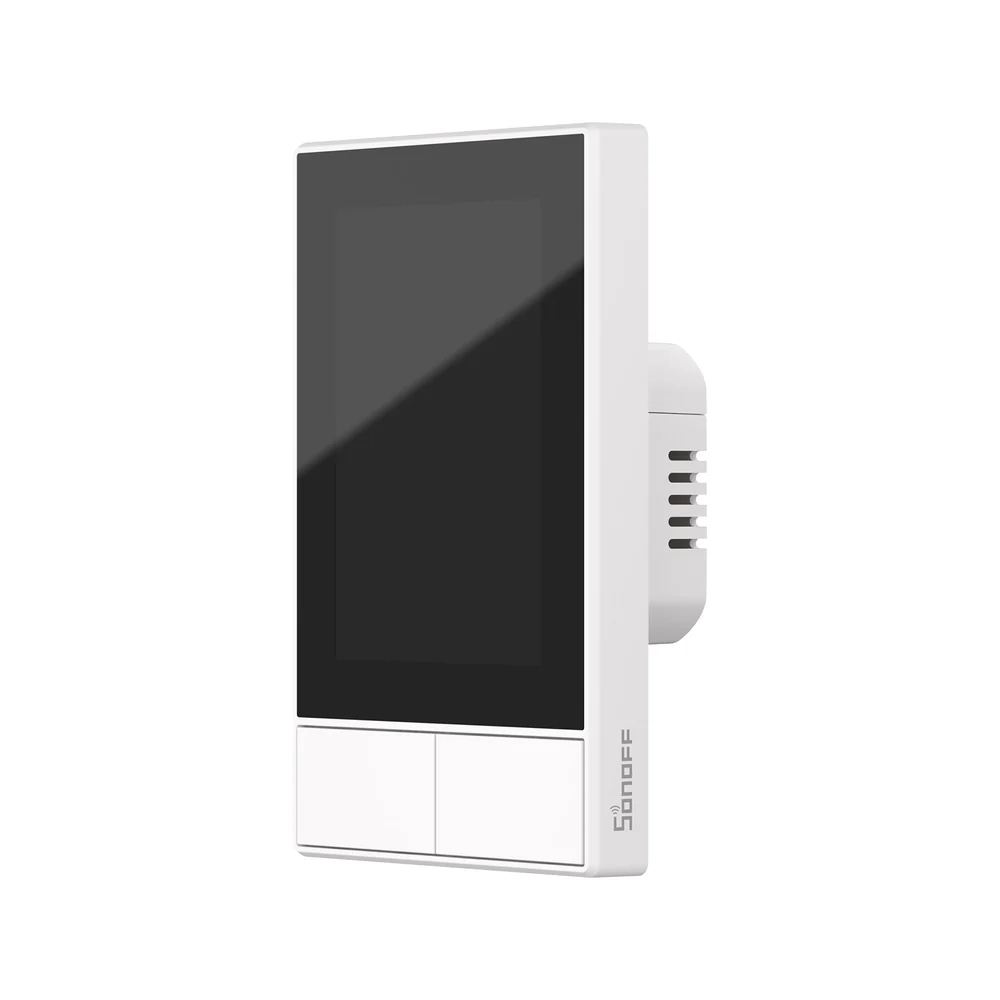

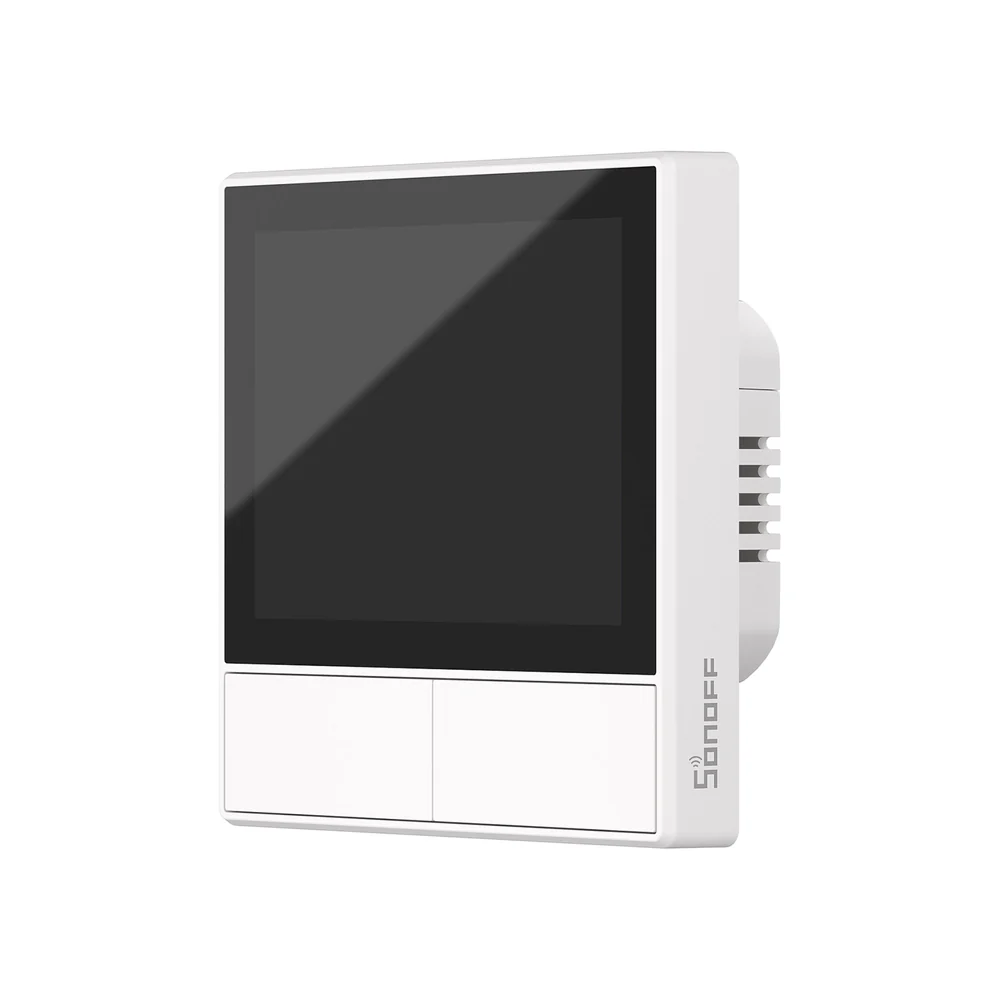

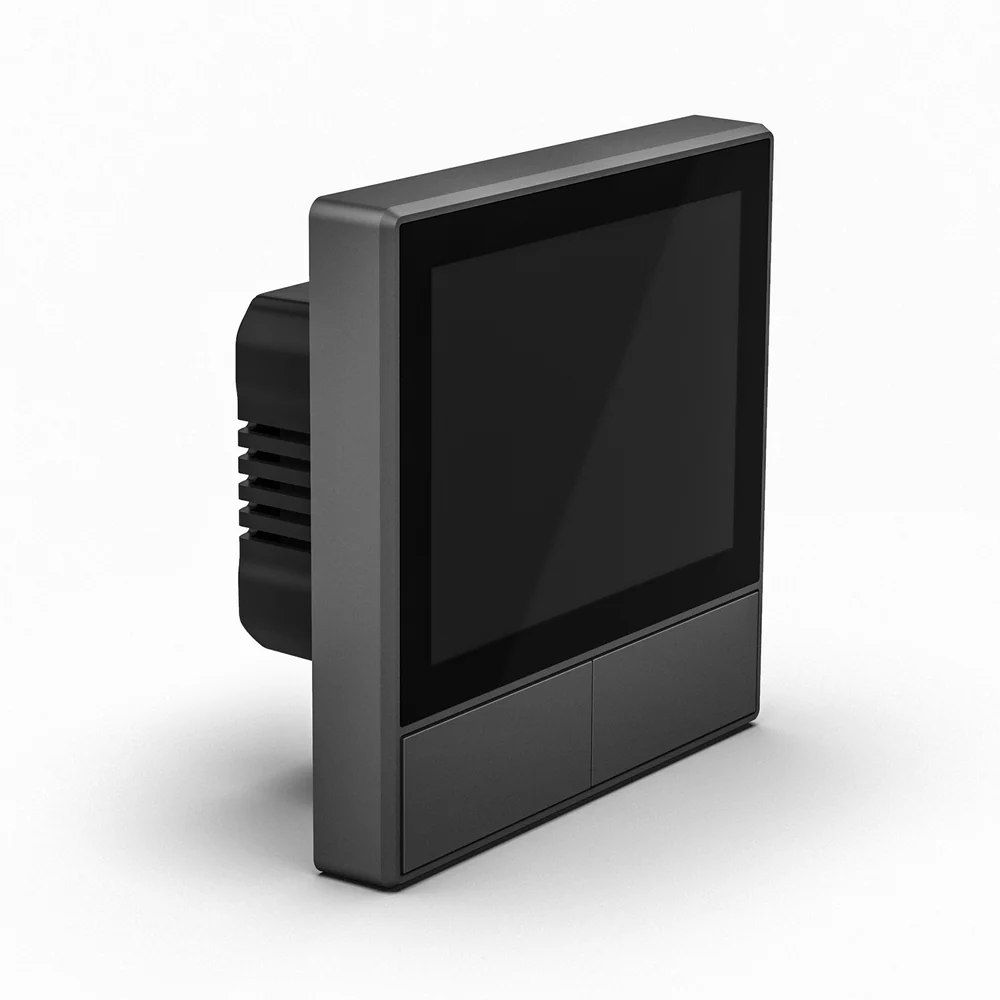

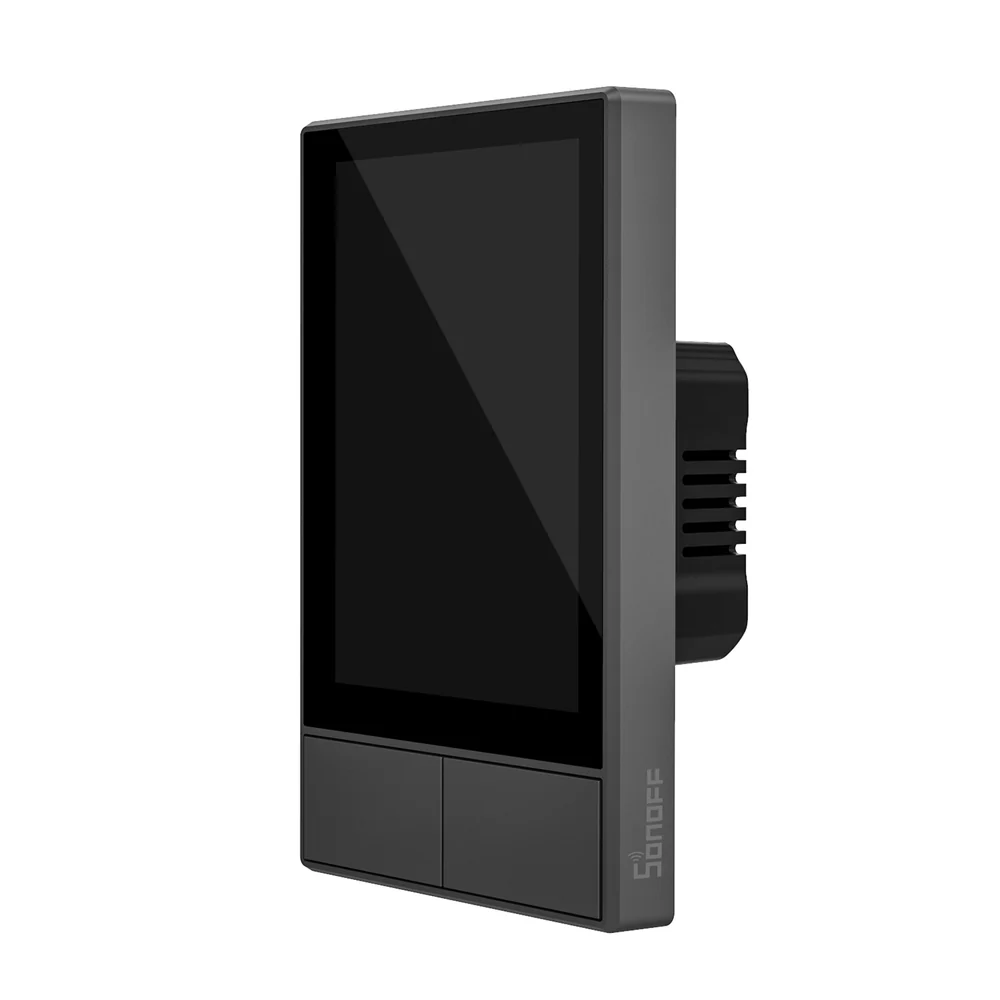

SONOFF NSPanel Smart Scene Wall Switch(86/EU Type/120 Type)

Specifications
Model	CS-DL06-R100-WBCP-GR
Material and Specification
Panel Material	Aluminum alloy
Panel Size	331 × 40 × 25.8 mm
Color	Metallic grey
Lock Body Type	Lift-up lock body
Lock Cylinder	2885 / 3585 / 4585
Weatherproof	IP55 (front panel)
Emergency Charging	Type-C
Working Power	1,450 mAh Rechargeable Lithium Battery
Technical Specification
Unlocking Method	Fingerprint, passcode, proximity card, mechanical key, Bluetooth remote control，Bluetooth key via EZVIZ App, temporary codes, remote unlock
User Capacity	50 pcs
Fingerprint Capacity	50 pcs
Passcode Capacity	50 pcs
Card Capacity	50 pcs
Communication Methods	2.4GHz Wi-Fi, Bluetooth
Temporary Access Codes	Supports
Anti-Peeping Codes	Supports, Max. 20 digits
Low Battery Warning	Supports
Privacy Mode	Supports
User Management	Supports
Real Time Notification	Supports
Anti-Test Locking	Supports, enter error 5 times within 5 min, locking 3 min.
Anti-Tamper Alarm	Supports
Remote Control	Supports
Supported Door Thickness	30-120 mm
Working Temperature	-10°C~55°C
Operating Humidity	10%~95%
In the box
In the box	- DL06 Front Panel
	- DL06 Rear Panel
	- Hole Templet
	- Lock Body
	- Standard Screw Bag
	- Lithium Battery
	- Mechanical Key × 2
	- Square Rod
	- Proximity Card × 2
	- Screwdriver
	- Regulatory Information
	- Quick Start Guide
Certifications
Certifications	CE (EMC / LVD / RED / ROHS) / REACH SVHC / WEEE
