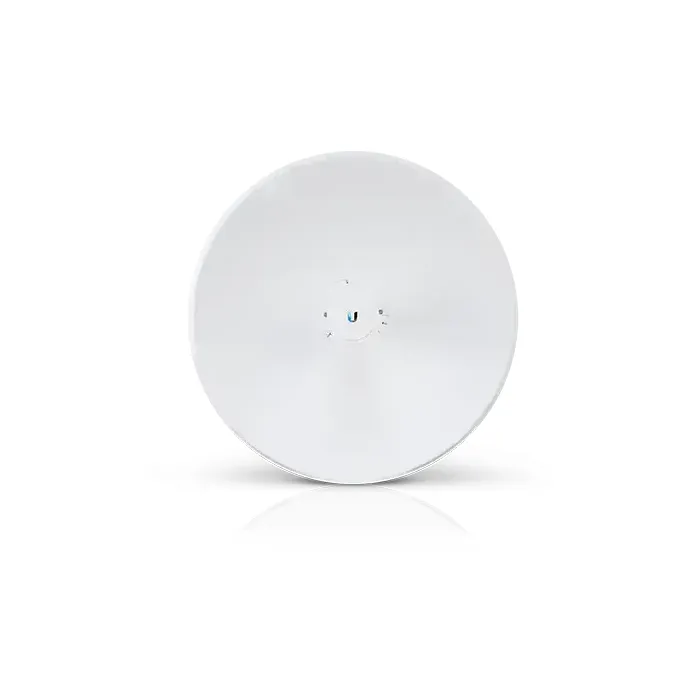

Ubiquiti Networks PowerBeam 5AC Gen2 420mm
Product Specification
Wind Survivability
- 200 km/h (125 mph)
Wind Loading
- 380 N @ 200 km/h (85.4lbf @ 125 mph)
Operating Frequency
- Worldwide: 5150-5875 MHz USA: U-NII-1: 5150-5250 MHz, U-NII-2-A: 5250-5350 MHz, U-NII-2C: 5470-5725 MHz, U-NII-3: 5725-5850 MHz
PoE
- Passive PoE (Pairs 4, 5+; 7, 8 Return)
LAN Port 10/100/1000
- (1) 10/100/1000 Ethernet Port
Enclosure
- Antenna Feed: Outdoor UV Stabilized Plastic Dish Reflector: Powder-Coated SPCC
Rate Voltage
20 to 26VDC
Processor Speed
MIPS 74Kc
Power Supply
24V, 0.5A Gigabit PoE Adapter (Included)
Dimension
- 420 x 420 x 230mm (16.54 x 16.54 x 9.06″)
الوزن
- 2.22 kg (4.89 lb)
Mounting Kit
Pole-mount (kit included)
Max. Power Consumption
- 8.5W
Operating Temperature
- -40 to 70 C (-40 to 158 F)
