C6c 2K
| Specifications | |
|---|---|
| Model | CS-C6c-R100-1H3WF |
| Camera | |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Shutter Speed | Self-adaptive shutter |
| Lens | 4mm @ F2.0, viewing angle: 100° (Horizontal), 84° (Vertical), 46° (Diagonal) |
| PT Angle | Pan: 340°, Tilt: 130° |
| Minimum Illumination | 0.51 Lux @ (F2.0, AGC ON) with IR |
| Lens Mount | M12 |
| Day & Night | IR-cut filter with auto switch |
| DNR | 3D DNR |
| WDR | Digital WDR |
| BLC | Supports |
| Night Vision | Up to 10 m |
| Video & Audio | |
| Max. Resolution | 2304 × 1296 |
| Frame Rate | Max. 25 fps; Self-Adaptive during network transmission |
| Video Compression | H.264/H.265 |
| Video Bit Rate | HD; Standard. Adaptive bit rate. |
| Audio Bit Rate | Self-Adaptive |
| Max. Bitrate | 2 Mbps |
| Network | |
| Wi-Fi Standard | IEEE 802.11 b, 802.11 g, 802.11 n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20 MHz |
| Security | 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK |
| Transmission Rate | 11b: 11 Mbps, 11g: 54 Mbps, 11n: 72 Mbps |
| Wi-Fi Pairing | AP paring |
| Protocol | EZVIZ Cloud Proprietary Protocol |
| Interface Protocol | EZVIZ Cloud Proprietary Protocol |
| Wired Network | Not Support |
| Function | |
| Smart Alarm | Human Shape Detection, Image Change Detection |
| Customized Alert Area | Supports |
| Two-Way Talk | Supports (Two Mic) |
| General Function | Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark |
| Storage | |
| Local Storage | Micro SD card slot (Max. 512G) |
| Cloud Storage | EZVIZ CloudPlay storage |
| General | |
| Operating Conditions | -10° to 45° C (14° to 113° F) Humidity 95% or less (non-condensing) |
| Power Supply | DC 5V/1A (Type-C) |
| Power Consumption | MAX. 5W |
| Product Dimensions | 100 × 100 × 96.5 mm |
| Packaging Dimensions | 115.5 × 116 × 160 mm |
| Weight | Net weight: 255 g (8.99 oz) With package: 487 g (17.18 oz) |
| In the box | |
| In the box | - Camera |
| - Power Adapter | |
| - Power Cable | |
| - Drill Template | |
| - Mounting Plate | |
| - EZVIZ Screw Kit | |
| - Regulatory Information | |
| - Quick Start Guide | |
| Certifications | |
| Certifications | CE (EMC / LVD / RED / ROHS) / UKCA / REACH SVHC / WEEE / FCC / UL |
C6c 4K
| Specifications | |
|---|---|
| Model | CS-C6c-R100-8G8WF |
| Camera | |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Shutter Speed | Self-adaptive shutter |
| Lens | 4mm @ F1.6, viewing angle: 106° (Horizontal), 90° (Vertical), 48° (Diagonal) |
| PT Angle | Pan: 340°, Tilt: 130° |
| Minimum Illumination | 0.51 Lux @ (F1.6, AGC ON) with IR |
| Lens Mount | M12 |
| Day & Night | IR-cut filter with auto switch |
| DNR | 3D DNR |
| WDR | True WDR |
| BLC | Supports |
| Night Vision | 10m & Smart Color Night Vision 6m |
| Video & Audio | |
| Max. Resolution | 3840 × 2160 |
| Frame Rate | Self-Adaptive during network transmission |
| Video Compression | H.264/H.265 |
| Video Bit Rate | HD; Standard. Adaptive bit rate. |
| Audio Bit Rate | Self-Adaptive |
| Max. Bitrate | 4 Mbps |
| Network | |
| Wi-Fi Standard | IEEE802.11a, IEEE802.11b, 802.11g, 802.11n, 802.11ac 802.11ax |
| Frequency Range | 2.4 ~ 2.4835 GHz, 5.17~5.25 GHz, 5.735~5.835 GHz |
| Channel Bandwidth | Supports 20 MHz |
| Security | WPA-PSK/WPA2-PSK/ WPA3-Personal |
| Transmission Rate | 11b: 11 Mbps, 11g: 54 Mbps, 11n: 72 Mbps |
| Wi-Fi Pairing | AP paring |
| Protocol | EZVIZ Cloud Proprietary Protocol |
| Interface Protocol | EZVIZ Cloud Proprietary Protocol |
| Wired Network | No |
| Function | |
| Smart Alarm | AI-Powered Human Shape & Pet Detection |
| Customized Alert Area | Supports |
| Two-Way Talk | Supports (Two Mic) |
| General Function | Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark |
| Storage | |
| Local Storage | Micro SD card slot (Max. 512G) |
| Cloud Storage | EZVIZ CloudPlay storage |
| General | |
| Operating Conditions | -10° to 45° C (14° to 113° F) Humidity 95% or less (non-condensing) |
| Power Supply | DC 5V/2A (Type-C) |
| Power Consumption | MAX. 8W |
| Product Dimensions | 100 × 100 × 96.5 mm |
| Packaging Dimensions | 115.5 × 116 × 160 mm |
| Weight | Product: 290g With Package: 604g |
| In the box | |
| In the box | - Camera |
| - Power Adapter | |
| - Power Cable | |
| - Drill Template | |
| - Mounting Plate | |
| - EZVIZ Screw Kit | |
| - Regulatory Information | |
| - Quick Start Guide | |
| Certifications | |
| Certifications | CE / RoHS / WEEE / REACH / UL |
C8c 4K
| Specifications | |
|---|---|
| Model | CS-C8c (4K) |
| Camera | |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Shutter Speed | Self-adaptive shutter |
| Lens | 4mm@ F1.6, viewing angle: 53° (Vertical), 87° (Horizontal), 104° (Diagonal) |
| PT Angle | Pan: 350°, Tilt: 80° |
| Minimum Illumination | 0.5 Lux @(F1.6, AGC ON), 0 Lux with IR (*data is obtained from EZVIZ laboratories) |
| Lens Mount | M12 |
| Day & Night | IR-cut filter with auto switch |
| DNR | 3D DNR |
| WDR | Digital WDR |
| Black & White Night | 30m / 98ft |
| Video & Audio | |
| Max. Resolution | 3840 × 2160 |
| Frame Rate | Self-Adaptive during network transmission |
| Video Compression | H.265 / H.264 |
| H.265 Type | Main Profile |
| Video Bit Rate | Ultra-HD; Hi-Def; Standard. Adaptive bit rate. |
| Audio Bit Rate | Self-Adaptive |
| Network | |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20 MHz |
| Security | WPA-PSK / WPA2-PSK |
| Transmission Rate | 11b: 11Mbps, 11g: 54Mbps,11n: 72Mbps |
| Wi-Fi Pairing | AP pairing |
| Protocol | EZVIZ Cloud Proprietary Protocol |
| Interface Protocol | EZVIZ Cloud Proprietary Protocol |
| Wired Network | RJ45 × 1 (10M/100M Adaptive Ethernet Port) |
| Storage | |
| Local Storage | MicroSD Card Slot (Up to 512GB) |
| Cloud Storage | EZVIZ Cloud Storage (Subscription required) |
| Function | |
| Smart Alarm | AI-Powered Human / Vehicle Shape Detection /Motion Detection |
| Auto Tracking | Supports |
| Customized Alert Area | Supports |
| Two-way Talk | Supports |
| Preset Locations | Supports |
| General Function | Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark |
| General | |
| Operating Conditions | -30°C to 50°C (-22 °F to 122 °F), humidity 95% or less (non-condensing) |
| IP Grade | IP65 |
| Power Supply | DC 12V / 1A |
| Power Consumption | MAX. 12W |
| Dimensions | 102.27 × 128.61 × 147.05 mm (4.03 × 5.06 × 5.79 inch) |
| Packaging Dimensions | 140 × 140 × 192 mm (5.51 × 5.51 × 7.56 inch) |
| Weight | Net Weight: 506 g (17.85 oz) With Package: 816 g(28.78 oz) |
| In the box | |
| In the box | - C8c 4K Camera |
| - Drill Template | |
| - Screw Kit | |
| - Waterproof Kit | |
| - Power Adapter | |
| - Regulatory Information | |
| - Quick Start Guide | |
| Certifications | |
| Certifications | CE / UL / WEEE / RoHS / REACH |

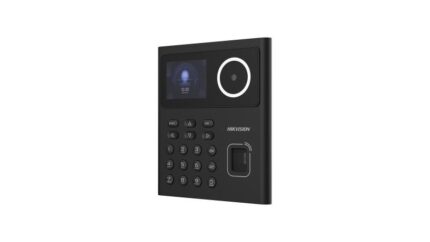

DS-K1A340FWX
Value Series Face Access Terminal
- Local time attendance; Remote configuration via web browser
- 4.3-inch touch screen and 2 MP camera
- Face anti-spoofing; Face recognition distance: 0.3m to 1.5m
- Face recognition duration ＜ 0.2 s/User; face recognition accuracy rate ≥ 99%
- Deep learning algorithm
- 1500 face capacity, 3000 fingerprint capacity, and 300,000 attendance records
- Supports ISAPI, ISUP5.0
- Export registered face pictures and events from device via USB interface
- Manage, search and set device data after logging in the device locally
DS-K1A340X
Value Series Face Access Terminal
- Local time attendance
- 4.3-inch touch screen and 2 MP camera
- Face anti-spoofing; Face recognition distance: 0.3 m to 1.5 m
- Face recognition duration ＜ 0.2 s/User; face recognition accuracy rate ≥ 99%
- Deep learning algorithm
- 1500 face capacity, and 300,000 attendance records
- Export registered face pictures and events from device via USB interface
- Manage, search and set device data after logging in the device locally

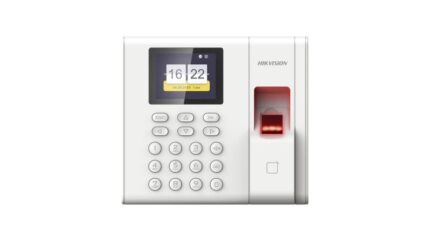

DS-K1A8503EF
K1A8503 Value Series Fingerprint Time Attendance Terminal
- 2.4-inch LCD screen to display time, date, week, and attendance information
- TCP/IP communication
- 1:N mode accurate and fast fingerprint recognition (recognition duration < 1 s)
- Max. 1000 users, Max. 1000 fingerprints, and Max. 100,000 events records
- Stand-alone operation (supports adding persons, cards, and fingerprints locally)
- Downloads attendance reports by USB flash drive
- Up to 32 normal shifts, 32 man-hour shifts, and 32 attendance holiday schedules can be configured
- Supports 6 attendance status, including check in, check out, break in, break out, overtime in, overtime out
- Generates reports automatically
- Supports multiple languages: English, Vietnamese, Brazilian Portuguese, Spanish, French, Italian, Arabic, Thai, Turkish, Indonesian, and Ukrainian
- Supports ISAPI protocol and ISUP 5.0 protocol
DS-K1A8503EF-B
K1A8503 Value Series Fingerprint Time Attendance Terminal
- 2.4-inch LCD screen to display time, date, week, and attendance information
- TCP/IP communication
- 1:N mode accurate and fast fingerprint recognition (recognition duration < 1 s)
- Max. 1000 users, Max. 1000 fingerprints, and Max. 100,000 events records
- Stand-alone operation (supports adding persons, cards, and fingerprints locally)
- Downloads attendance reports by USB flash drive
- Up to 32 normal shifts, 32 man-hour shifts, and 32 attendance holiday schedules can be configured
- Supports 6 attendance status, including check in, check out, break in, break out, overtime in, overtime out
- Generates reports automatically
- Supports multiple languages: English, Vietnamese, Brazilian Portuguese, Spanish, French, Italian, Arabic, Thai, Turkish, Indonesian, and Ukrainian
- Supports ISAPI protocol and ISUP 5.0 protocol

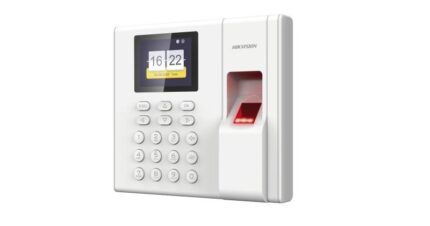

DS-K1A8503F
K1A8503 Value Series Fingerprint Time Attendance Terminal
- 2.4-inch LCD screen to display time, date, week, and attendance information
- TCP/IP communication
- 1:N mode accurate and fast fingerprint recognition (recognition duration < 1 s)
- Max. 1000 users, Max. 1000 fingerprints, and Max. 100,000 events records
- Stand-alone operation (supports adding persons, and fingerprints locally)
- Downloads attendance reports by USB flash drive
- Up to 32 normal shifts, 32 man-hour shifts, and 32 attendance holiday schedules can be configured
- Supports 6 attendance status, including check in, check out, break in, break out, overtime in, overtime out
- Generates reports automatically
- Supports multiple languages: English, Vietnamese, Brazilian Portuguese, Spanish, French, Italian, Arabic, Thai, Turkish, Indonesian, and Ukrainian
- Supports ISAPI protocol and ISUP 5.0 protocol

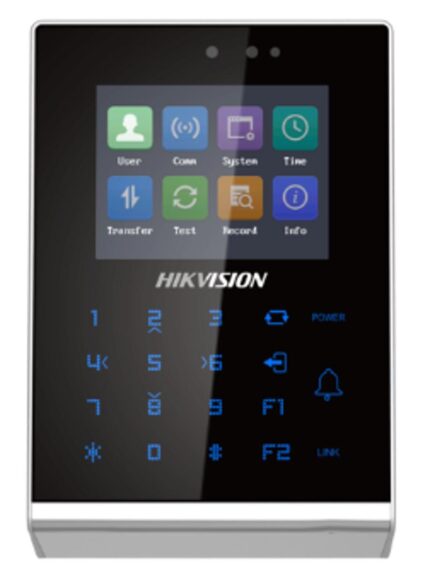

DS-K1T105AE
Pro Series Card Terminal
- IP addresses conflicted alarm
- Supports uploading real-time events
- Gets offline events: Avoids events losing
- Touch mode and blue light display technique for keypad
- Stand-alone settings for the terminal
- 2.8-inch LCD display screen to display the time, the date, etc.
- Max. 100,000 valid card capacity, and Max. 300,000 access control events capacity
- Communication via wired network (TCP/TP) and Wi-Fi
- Supports ISUP5.0 protocol for public network communication
- Supports multiple door opening modes (card, card + password, exit button, etc.)
- Supports RS-485 and Wiegand (26/34) communication for connecting the external card reader
- Applies authentications from the client to the device
- Supports Wiegand (26/34) interface and RS-485 interface for accessing the controller
- Supports EM card reading
- Tampering detection, unlocking overtime alarm, invalid card swiping over times alarm, forced opening door alarm, and duress card alarm
- Creates dismiss code for dismiss alarm
- Accurate data and time display provided by built-in electronic clock and watchdog program to ensure the basic function of the terminal
- Data can be permanently saved after power-off
DS-K1T105AM
Pro Series Card Terminal
- IP addresses conflicted alarm
- Supports uploading real-time events
- Gets offline events: Avoids events losing
- Touch mode and blue light display technique for keypad
- Stand-alone settings for the terminal
- 2.8-inch LCD display screen to display the time, the date, etc.
- Max. 100,000 valid card capacity, and Max. 300,000 access control events capacity
- Communication via wired network (TCP/TP) and Wi-Fi
- Supports ISUP5.0 protocol for public network communication
- Supports multiple door opening modes (card, card + password, exit button, etc.)
- Supports RS-485 and Wiegand (26/34) communication for connecting the external card reader
- Applies authentications from the client to the device
- Supports Wiegand (26/34) interface and RS-485 interface for accessing the controller
- Supports Mifare card reading
- M1 card encryption
- Tampering detection, unlocking overtime alarm, invalid card presenting over times alarm, forced opening door alarm, and duress card alarm
- Creates dismiss code for dismiss alarm
- Accurate data and time display provided by built-in electronic clock and watchdog program to ensure the basic function of the terminal
- Data can be permanently saved after power-off
DS-K1T320EFWX
Value Series Face Access Terminal
- 2.4-inch LCD screen, 2 MP lens
- Multiple authentication methods, including face, fingerprint, card, and PIN, etc
- Supports EM card
- Max. 500 faces, 1,000 cards, 1,000 fingerprints and 100,000 events
- Face recognition duration < 0.2 s/User
- Supports ISAPI and ISUP 5.0 protocols
- Configuration via the web client
DS-K1T320MFWX-B
Value Series Face Access Terminal
- 2.4-inch LCD screen, 2 MP lens
- Multiple authentication methods, including face, fingerprint, card, and PIN, etc.
- Supports M1 card
- Max. 500 faces, 1,000 cards, 1,000 fingerprints and 100,000 events
- Face recognition duration < 0.2 s/User
- Supports ISAPI and ISUP 5.0 protocols
- Configuration via the web client
- Supports power supply by battery in the bracket
- Supports access control and local time and attendance function
