C6c 2K
| Specifications | |
|---|---|
| Model | CS-C6c-R100-1H3WF |
| Camera | |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Shutter Speed | Self-adaptive shutter |
| Lens | 4mm @ F2.0, viewing angle: 100° (Horizontal), 84° (Vertical), 46° (Diagonal) |
| PT Angle | Pan: 340°, Tilt: 130° |
| Minimum Illumination | 0.51 Lux @ (F2.0, AGC ON) with IR |
| Lens Mount | M12 |
| Day & Night | IR-cut filter with auto switch |
| DNR | 3D DNR |
| WDR | Digital WDR |
| BLC | Supports |
| Night Vision | Up to 10 m |
| Video & Audio | |
| Max. Resolution | 2304 × 1296 |
| Frame Rate | Max. 25 fps; Self-Adaptive during network transmission |
| Video Compression | H.264/H.265 |
| Video Bit Rate | HD; Standard. Adaptive bit rate. |
| Audio Bit Rate | Self-Adaptive |
| Max. Bitrate | 2 Mbps |
| Network | |
| Wi-Fi Standard | IEEE 802.11 b, 802.11 g, 802.11 n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20 MHz |
| Security | 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK |
| Transmission Rate | 11b: 11 Mbps, 11g: 54 Mbps, 11n: 72 Mbps |
| Wi-Fi Pairing | AP paring |
| Protocol | EZVIZ Cloud Proprietary Protocol |
| Interface Protocol | EZVIZ Cloud Proprietary Protocol |
| Wired Network | Not Support |
| Function | |
| Smart Alarm | Human Shape Detection, Image Change Detection |
| Customized Alert Area | Supports |
| Two-Way Talk | Supports (Two Mic) |
| General Function | Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark |
| Storage | |
| Local Storage | Micro SD card slot (Max. 512G) |
| Cloud Storage | EZVIZ CloudPlay storage |
| General | |
| Operating Conditions | -10° to 45° C (14° to 113° F) Humidity 95% or less (non-condensing) |
| Power Supply | DC 5V/1A (Type-C) |
| Power Consumption | MAX. 5W |
| Product Dimensions | 100 × 100 × 96.5 mm |
| Packaging Dimensions | 115.5 × 116 × 160 mm |
| Weight | Net weight: 255 g (8.99 oz) With package: 487 g (17.18 oz) |
| In the box | |
| In the box | - Camera |
| - Power Adapter | |
| - Power Cable | |
| - Drill Template | |
| - Mounting Plate | |
| - EZVIZ Screw Kit | |
| - Regulatory Information | |
| - Quick Start Guide | |
| Certifications | |
| Certifications | CE (EMC / LVD / RED / ROHS) / UKCA / REACH SVHC / WEEE / FCC / UL |
C6c 4K
| Specifications | |
|---|---|
| Model | CS-C6c-R100-8G8WF |
| Camera | |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Shutter Speed | Self-adaptive shutter |
| Lens | 4mm @ F1.6, viewing angle: 106° (Horizontal), 90° (Vertical), 48° (Diagonal) |
| PT Angle | Pan: 340°, Tilt: 130° |
| Minimum Illumination | 0.51 Lux @ (F1.6, AGC ON) with IR |
| Lens Mount | M12 |
| Day & Night | IR-cut filter with auto switch |
| DNR | 3D DNR |
| WDR | True WDR |
| BLC | Supports |
| Night Vision | 10m & Smart Color Night Vision 6m |
| Video & Audio | |
| Max. Resolution | 3840 × 2160 |
| Frame Rate | Self-Adaptive during network transmission |
| Video Compression | H.264/H.265 |
| Video Bit Rate | HD; Standard. Adaptive bit rate. |
| Audio Bit Rate | Self-Adaptive |
| Max. Bitrate | 4 Mbps |
| Network | |
| Wi-Fi Standard | IEEE802.11a, IEEE802.11b, 802.11g, 802.11n, 802.11ac 802.11ax |
| Frequency Range | 2.4 ~ 2.4835 GHz, 5.17~5.25 GHz, 5.735~5.835 GHz |
| Channel Bandwidth | Supports 20 MHz |
| Security | WPA-PSK/WPA2-PSK/ WPA3-Personal |
| Transmission Rate | 11b: 11 Mbps, 11g: 54 Mbps, 11n: 72 Mbps |
| Wi-Fi Pairing | AP paring |
| Protocol | EZVIZ Cloud Proprietary Protocol |
| Interface Protocol | EZVIZ Cloud Proprietary Protocol |
| Wired Network | No |
| Function | |
| Smart Alarm | AI-Powered Human Shape & Pet Detection |
| Customized Alert Area | Supports |
| Two-Way Talk | Supports (Two Mic) |
| General Function | Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark |
| Storage | |
| Local Storage | Micro SD card slot (Max. 512G) |
| Cloud Storage | EZVIZ CloudPlay storage |
| General | |
| Operating Conditions | -10° to 45° C (14° to 113° F) Humidity 95% or less (non-condensing) |
| Power Supply | DC 5V/2A (Type-C) |
| Power Consumption | MAX. 8W |
| Product Dimensions | 100 × 100 × 96.5 mm |
| Packaging Dimensions | 115.5 × 116 × 160 mm |
| Weight | Product: 290g With Package: 604g |
| In the box | |
| In the box | - Camera |
| - Power Adapter | |
| - Power Cable | |
| - Drill Template | |
| - Mounting Plate | |
| - EZVIZ Screw Kit | |
| - Regulatory Information | |
| - Quick Start Guide | |
| Certifications | |
| Certifications | CE / RoHS / WEEE / REACH / UL |
C8c 4K
| Specifications | |
|---|---|
| Model | CS-C8c (4K) |
| Camera | |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Shutter Speed | Self-adaptive shutter |
| Lens | 4mm@ F1.6, viewing angle: 53° (Vertical), 87° (Horizontal), 104° (Diagonal) |
| PT Angle | Pan: 350°, Tilt: 80° |
| Minimum Illumination | 0.5 Lux @(F1.6, AGC ON), 0 Lux with IR (*data is obtained from EZVIZ laboratories) |
| Lens Mount | M12 |
| Day & Night | IR-cut filter with auto switch |
| DNR | 3D DNR |
| WDR | Digital WDR |
| Black & White Night | 30m / 98ft |
| Video & Audio | |
| Max. Resolution | 3840 × 2160 |
| Frame Rate | Self-Adaptive during network transmission |
| Video Compression | H.265 / H.264 |
| H.265 Type | Main Profile |
| Video Bit Rate | Ultra-HD; Hi-Def; Standard. Adaptive bit rate. |
| Audio Bit Rate | Self-Adaptive |
| Network | |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20 MHz |
| Security | WPA-PSK / WPA2-PSK |
| Transmission Rate | 11b: 11Mbps, 11g: 54Mbps,11n: 72Mbps |
| Wi-Fi Pairing | AP pairing |
| Protocol | EZVIZ Cloud Proprietary Protocol |
| Interface Protocol | EZVIZ Cloud Proprietary Protocol |
| Wired Network | RJ45 × 1 (10M/100M Adaptive Ethernet Port) |
| Storage | |
| Local Storage | MicroSD Card Slot (Up to 512GB) |
| Cloud Storage | EZVIZ Cloud Storage (Subscription required) |
| Function | |
| Smart Alarm | AI-Powered Human / Vehicle Shape Detection /Motion Detection |
| Auto Tracking | Supports |
| Customized Alert Area | Supports |
| Two-way Talk | Supports |
| Preset Locations | Supports |
| General Function | Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark |
| General | |
| Operating Conditions | -30°C to 50°C (-22 °F to 122 °F), humidity 95% or less (non-condensing) |
| IP Grade | IP65 |
| Power Supply | DC 12V / 1A |
| Power Consumption | MAX. 12W |
| Dimensions | 102.27 × 128.61 × 147.05 mm (4.03 × 5.06 × 5.79 inch) |
| Packaging Dimensions | 140 × 140 × 192 mm (5.51 × 5.51 × 7.56 inch) |
| Weight | Net Weight: 506 g (17.85 oz) With Package: 816 g(28.78 oz) |
| In the box | |
| In the box | - C8c 4K Camera |
| - Drill Template | |
| - Screw Kit | |
| - Waterproof Kit | |
| - Power Adapter | |
| - Regulatory Information | |
| - Quick Start Guide | |
| Certifications | |
| Certifications | CE / UL / WEEE / RoHS / REACH |
E6
| Specifications | |
|---|---|
| Model | CS-E6-A0-8C5WF |
| Camera | |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Shutter Speed | Self-adaptive shutter |
| Lens | 4mm @ F2.0, viewing angle: 87° (Horizontal), 48° (Vertical), 103° (Diagonal) |
| PT Angle | Pan: 350°, Tilt: 75° |
| Minimum Illumination | 0.51 Lux @ (F2.0, AGC ON), 0 Lux with IR |
| Lens Mount | M12 |
| Day & Night | IR-cut filter with auto-switching |
| DNR | 3D DNR |
| WDR | WDR 80dB |
| BLC | Supports |
| Night Vision | Up to 10 m / 32.8 ft |
| Video & Audio | |
| Max. Resolution | 2880 × 1620 |
| Frame Rate | Self-Adaptive during network transmission |
| Video Compression | H.265 / H.264 |
| Video Bit Rate | Ultra-HD; HD; Standard. Adaptive bit rate. |
| Audio Bit Rate | Self-Adaptive |
| Max. Bitrate | 5 Mbps |
| Network | |
| Wi-Fi Standard | IEEE802.11a, 802.11b, 802.11g, 802.11n, 802.11ac |
| Frequency Range | 2.4G: 2400~2483.5 MHz 5G: 5170~5250 MHz，5735~5835 MHz |
| Channel Bandwidth | Supports 40 MHz |
| Security | WPA-PSK / WPA2-PSK |
| Transmission Rate | 11b 11Mbps, 11g 54Mbps, 11nHT20 MCS7, 11nHT40 MCS7; 11a 54Mbps, 11nHT20 MCS7, 11nHT40 MCS7 |
| Wi-Fi Pairing | AP pairing |
| Protocol | EZVIZ Cloud Proprietary Protocol |
| Interface Protocol | EZVIZ Cloud Proprietary Protocol |
| Wired Network | RJ45 × 1 (10M / 100M Adaptive Ethernet Port) |
| Storage | |
| Local Storage | Supports microSD card (Up to 512 GB) |
| Cloud Storage | Supports EZVIZ CloudPlay storage (Subscription required) |
| Function | |
| Smart Alarm | AI-Powered Human Shape Detection / Pet Detection / Gesture Recognition / Voice Activity Detection / Bark and Meow Detection |
| Two-Way Talk | Supports |
| General Function | Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark |
| General | |
| Operating Conditions | -10°C to 45°C ( 14°F to 113 °F ), humidity 95% or less (non-condensing) |
| Power Supply | DC 5V/2A |
| Power Consumption | Max. 8W |
| Dimensions | 95.8 × 95.8 × 90.6 mm (3.77 × 3.77 × 3.57 inch) |
| Packaging Dimensions | 116 × 116 × 164 mm (4.57 × 4.57 × 6.46 inch) |
| Weight | Net weight: 252 g (8.89 oz) With package: 513 g (1.13 oz) |
| In the box | |
| In the box | - E6 Camera |
| - Power Adapter | |
| - Power Cable | |
| - Drill Template | |
| - Mounting Plate | |
| - Regulatory Information | |
| - Quick Start Guide | |
| - HomeKit Setup Instruction | |
| Certifications | |
| UL / CE / RoHS / WEEE / REACH / FCC / UKCA | |
H3 2K
| Specifications | |
|---|---|
| Model | CS-H3-R100-1J3WKFL |
| General | |

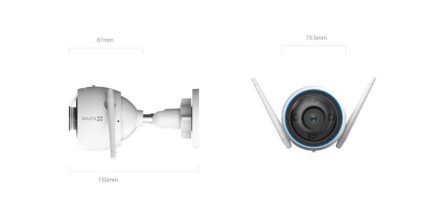

| Dimensions | 75.5 × 75.5 × 155 mm (2.97 × 2.97 × 6.10 inch) |
| Package Dimensions | 227 × 100 × 92 mm (8.94 × 3.94 × 3.62 inch) |
| Weight | Net weight: 438 g (15.45 oz) With package: 676 g (23.84 oz) |
| IP Grade | IP67 |
| Operating Conditions | -30 °C ~ 60 ºC (-22 °F ~ 140 °F ) Humidity 95% or less (non-condensing) |
| Camera | |
| Image Sensor | 1/2.7”Progressive Scan CMOS |
| Shutter Speed | Self-adaptive shutter |
| Lens | 2.8mm @ F2.0, viewing angle: 122° (Diagonal), 106° (Horizontal), 56° (Vertical) 4mm @ F2.0, viewing angle:102° (Diagonal), 86° (Horizontal), 44° (Vertical) |
| Minimum Illumination | 0.01 lux @ (F2.0, AGC ON), 0 Lux with IR |
| Lens Mount | M12 |
| Day / Night Switch | IR-Cut filter with auto-switching |
| DNR | 3D DNR |
| WDR | Digital WDR |
| BLC | Supports |
| IR Night Vision Distance | Up to 98 ft / 30 m |
| Video & Audio | |
| Max. Resolution | 2304 × 1296 pixels |
| Frame Rate | Max: 30fps; Self-Adaptive during network transmission |
| Video Compression | H.265 / H.264 |
| Video Bit Rate | Quad HD; Full HD; HD; Standard. Adaptive bit rate. |
| Audio Bit Rate | Self-Adaptive |
| Max. Bitrate | 1.5 Mbps |
| Network | |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20 MHz |
| Security | 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK |
| Transmission Rate | 11b: 11 Mbps, 11g: 54 Mbps, 11n: 150 Mbps |
| Wi-Fi Pairing | AP Pairing |
| Protocol | EZVIZ Cloud Proprietary Protocol |
| Interface Protocol | EZVIZ Cloud Proprietary Protocol |
| Wired Network | RJ45 × 1 (10M / 100M Adaptive Ethernet Port) |
| Function | |
| Detection | AI-Powered Human / Vehicle Shape Detection, Motion Detection |
| Customized Alert Area | Supports |
| Integration | Works with Alexa, Google Assistant, IFTTT |
| General Function | Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark |
| Storage | |
| Local Storage | Supports microSD card (Up to 512 GB) |
| Cloud Storage | Supports EZVIZ CloudPlay storage (Subscription required) |
| Power | |
| Wiring | Hard-Wired |
| Power Supply | DC 12V / 1A |
| Power Consumption | Max. 7W |
| In the box | |
| In the box | - EZVIZ H3 2K Camera |
| - Drill Template | |
| - Screw Kit | |
| - Waterproof Kit | |
| - Power Adapter | |
| - Regulatory Information | |
| - Quick Start Quide | |
| Certifications | |
| Certifications | CE / FCC / UKCA / UL / WEEE / RoHS / REACH |
H3 3K
| Specifications | |
|---|---|
| Model | CS-H3-R100-1J5WKFL |
| General | |
| Dimensions | 75.5 × 75.5 × 155 mm (2.97 × 2.97 × 6.10 inch) |
| Package Dimensions | 227 × 100 × 92 mm (8.94 × 3.94 × 3.62 inch) |
| Weight | Net weight: 433 g (15.27 oz) With package: 652 g (23.00 oz) |
| IP Grade | IP67 |
| Operating Conditions | -30 °C ~ 60 ºC (-22 °F ~ 140 °F ) Humidity 95% or less (non-condensing) |
| Camera | |
| Image Sensor | 1/2.7”Progressive Scan CMOS |
| Shutter Speed | Self-adaptive shutter |
| Lens | 2.8mm @ F2.0, viewing angle: 114° (Diagonal), 96° (Horizontal), 51° (Vertical) 4mm @ F2.0, viewing angle: 95° (Diagonal), 80° (Horizontal), 42° (Vertical) |
| Minimum Illumination | 0.01 lux @ (F2.0, AGC ON), 0 Lux with IR |
| Lens Mount | M12 |
| Day / Night Switch | IR-Cut filter with auto-switching |
| DNR | 3D DNR |
| WDR | Digital WDR |
| BLC | Supports |
| IR Night Vision Distance | Up to 98 ft / 30 m |
| Video & Audio | |
| Max. Resolution | 2880 × 1620 pixels |
| Frame Rate | Max: 30fps; Self-Adaptive during network transmission |
| Video Compression | H.265 / H.264 |
| Video Bit Rate | Quad HD+; Full HD; HD; Standard. Adaptive bit rate. |
| Audio Bit Rate | Self-Adaptive |
| Max. Bitrate | 2.5 Mbps |
| Network | |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20 MHz |
| Security | 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK |
| Transmission Rate | 11b: 11 Mbps, 11g: 54 Mbps, 11n: 150 Mbps |
| Wi-Fi Pairing | AP Pairing |
| Protocol | EZVIZ Cloud Proprietary Protocol |
| Interface Protocol | EZVIZ Cloud Proprietary Protocol |
| Wired Network | RJ45 × 1 (10M / 100M Adaptive Ethernet Port) |
| Function | |
| Detection | AI-Powered Human / Vehicle Shape Detection, Waving-Hand Detection, Motion Detection |
| Customized Alert Area | Supports |
| Integration | Works with Alexa, Google Assistant, IFTTT |
| General Function | Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark |
| Storage | |
| Local Storage | Supports microSD card (Up to 512 GB) |
| Cloud Storage | Supports EZVIZ CloudPlay storage (Subscription required) |
| Power | |
| Wiring | Hard-Wired |
| Power Supply | DC 12V / 1A |
| Power Consumption | Max. 8W |
| In the box | |
| In the box | - EZVIZ H3 3K Camera |
| - Drill Template | |
| - Screw Kit | |
| - Waterproof Kit | |
| - Power Adapter | |
| - Regulatory Information | |
| - Quick Start Quide | |
| Certifications | |
| Certifications | CE / FCC / UKCA / UL / WEEE / RoHS / REACH |
H3c 3K
| Specifications | |
|---|---|
| Model | CS-H3c-R100-1J5WKFL |
| Camera | |
| Image Sensor | 1/2.7”Progressive Scan CMOS |
| Minimum Illumination | 0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR |
| IR Night Vision Distance | Up to 98 ft / 30 m |
| Shutter Speed | Self-adaptive shutter |
| Lens | 4mm @ F1.6, viewing angle: 87° (Horizontal), 53° (Vertical), 104° (Diagonal) |
| 2.8mm @ F1.6, viewing angle: 103° (Horizontal), 58° (Vertical), 125° (Diagonal) | |
| Lens Mount | M12 |
| DNR | 3D DNR |
| WDR | Digital WDR |
| Day / Night Switch | IR-Cut filter with auto-switching |
| Video & Audio | |
| Max. Resolution | 2880*1620 |
| Frame Rate | Max: 30fps; Self-Adaptive during network transmission |
| Video Compression | H.265 / H.264 |
| Video Bit Rate | Quad HD; Hi-Def; Full HD; Standard. |
| Audio Bit Rate | Self-Adaptive |
| Max. Bitrate | 2.5 Mbps |
| Network | |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20 MHz |
| Security | 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK |
| Transmission Rate | 11b: 11Mbps, 11g: 54Mbps, 11n: 144Mbps |
| Wi-Fi Pairing | AP Pairing |
| Protocol | EZVIZ Cloud Proprietary Protocol |
| Interface Protocol | EZVIZ Cloud Proprietary Protocol |
| Wired Network | RJ45 × 1 (10M / 100M Adaptive Ethernet Port) |
| Function | |
| Detection | Motion Detection, AI-Powered Human Shape Detection, Waving-Hand Detection |
| Customized Alert Area | Supports |
| Integration | Works with Alexa, Google Assistant |
| General Function | Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark |
| Storage | |
| Local Storage | Supports microSD card (Up to 512 GB) |
| Cloud Storage | Supports EZVIZ CloudPlay storage (Subscription required) |
| General | |
| Operating Conditions | -22°F to 122 °F (-30ºC ~ 50ºC ); Humidity 95% or less ( non-condensing) |
| IP Grade | IP67 |
| Power Supply | DC 12V / 1A |
| Power Consumption | MAX. 9W |

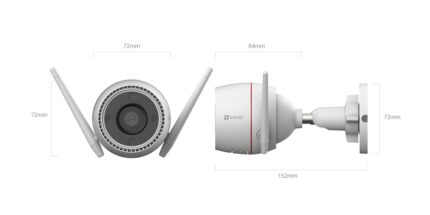

| Dimensions | 72 × 84 × 152 mm (2.83 × 3.31 × 5.98 inch) |
| Packaging Dimensions | 227 × 100 × 92 mm (8.94 × 3.94 × 3.62 inch) |
| Weight(With Package) | 539 g (19.01 oz) |
| Net Weight | 330 g (11.64 oz) |
| In the box | |
| In the box | H3c 3K Camera |
| Drill Template | |
| Screw Kit | |
| Waterproof Kit | |
| Power Adapter | |
| Regulatory Information | |
| Quick Start Guide | |
| Certifications | |
| Certifications | CE / UL / WEEE / RoHS / REACH |
H3c NVR + HDD Kit
| Specifications | |
|---|---|
| Model | 2K: CS-H3c-R100-1K3WKFL 2K+: CS-H3c-R100-1J4WKFL |
| Camera | |
| Image Sensor | 1/2.7”Progressive Scan CMOS |
| Minimum Illumination | 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR |
| IR Night Vision Distance | Up to 98 ft / 30 m |
| Shutter Speed | Self-adaptive shutter |
| Lens | 4mm @ F2.0, view angle: 82° (Horizontal), 98° (Diagonal) |
| Lens Mount | M12 |
| DNR | 3D DNR |
| WDR | Digital WDR |
| Day / Night Switch | IR-Cut filter with auto-switching |
| Video & Audio | |
| Max. Resolution | 2K (2304 × 1296) 2K+ (2560 × 1440) |
| Frame Rate | Self-adaptive during network transmission |
| Video Compression | H.265 / H.264 |
| Video Bit Rate | Ultra-HD; HD; Standard. Adaptive bit rate. |
| Audio Bit Rate | Self-Adaptive |
| Max. Bitrate | 2 Mbps |
| Network | |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20 MHz |
| Security | 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK |
| Transmission Rate | 11b: 11Mbps, 11g: 54Mbps, 11n: 144Mbps |
| Wi-Fi Pairing | AP Pairing |
| Protocol | EZVIZ Cloud Proprietary Protocol |
| Interface Protocol | EZVIZ Cloud Proprietary Protocol |
| Wired Network | RJ45 × 1 (10M / 100M Adaptive Ethernet Port) |
| Function | |
| Detection | Motion detection AI-powered human shape detection |
| Customized Alert Area | Supports |
| Integration | Works with Alexa, Google Assistant |
| General Function | Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark |
| Storage | |
| Local Storage | Supports microSD card (Up to 512 GB) |
| Cloud Storage | Supports EZVIZ CloudPlay storage (Subscription required) |
| General | |
| Operating Conditions | -30 °C to 50°C ( -22 °F to 122 °F ), humidity 95% or less (non-condensing) |
| IP Grade | IP67 |
| Power Supply | DC 12V / 1A |
| Power Consumption | MAX. 12W |
| Dimensions | 72 × 72 × 157 mm (2.83 × 2.83 × 5.98 inch) |
| Packaging Dimensions | 227 × 100 × 92 mm (8.94 × 3.94 × 3.62 inch) |
| Weight(With Package) | 539 g (19.01 oz) |
| Net Weight | 330 g (11.64 oz) |
| Specifications | |
| Model | CS-X5S-R100-8W |
| IPC Access Capability | |
| Wireless/Wired IPC Access Capability | 3K × 8 |
| Network Parameter | |
| Antenna Number | 2 |
| Max Wireless Range | 100m |
| Radio Frequency | 2.4G |
| Ethernet Port | One 10/100M adaptable Ethernet interface |
| Required Access Bandwidth | 100Mbps |
| Video Output | |
| VGA | 1 channel (identical to HDMI output) resolution up to 1920 × 1080/60Hz |
| HDMI | 1 channel resolution up to 2592 × 1944/30HZ |
| Audio/Video Codec | |
| Recording Resolution | 3K / 2K+ / 2K / 1080p / UXGA / 720p / VGA / 4CIF / 2CIF / CIF / QCIF |
| Video Encoding | H.265, H.264 |
| Decode Playback | Supports 8 × 3K |
| Video Recording Management | |
| Video Recording Mode | Manual video recording; Motion detection recording; Scheduled video recording; Event triggered recording |
| Backup Mode | Hard disk backup, Internet application backup |
| Playback Mode | Instant playback ; Normal playback ; Event playback ; Tag playback; Log event playback |
| Open Protocol | |
| Open Protocol Support | EZVIZ; HIKVISION; ONVIF (2.5) |
| HDD | |
| Interface Type | One Built-in SATA |
| Capability | 1 TB HDD pre-installed, support 1 TB to 8 TB 3.5-inch HDD |
| External Interface | |
| Audio Input/ Output | Not support |
| Hardware Reset | Supports |
| USB2.0 Interface | 1 |
| Dimensions | |
| Product Dimensions | 235 × 270 × 44.5 mm (9.25 × 10.6 × 1.75 inch) |
| Packaging Dimensions | 387 × 362 × 75 mm (15.2 × 14.3 × 3 inch) |
| Power Supply | |
| DC | 12V/1.5A |
| Consumption | |
| Standby status | ≤8W |
| Weight | |
| Net Weight | 932 g |
| In the box | |
| In the box | - H3c 2K/2K+ Camera × 4 |
| - X5S NVR | |
| - HDMI Cable | |
| - Power Adapter × 5 | |
| - Mouse | |
| - Drilling Template × 4 | |
| - Waterproof Kit × 4 | |
| - Screw Kit × 4 | |
| - Regulatory Information | |
| - Quick Start Guide | |
| Certifications | |
| Certifications | CE (EMC / LVD / RED / RoHS / ERP) / REACH / SVHC / WEEE / FCC (SDOC / ID) / UL / UKCA |
H6c
| Specifications | |
|---|---|
| Model | CS-H6c-R101-1G2WF |
| Camera | |
| Image Sensor | F2.4 @ 1/3" Progressive Scan CMOS |
| Shutter Speed | Self-adaptive shutter |
| IR Night Vision Distance | Up to 10 m (33 ft) |
| Lens | 4 mm, viewing angle: 85° (Diagonal), 75° (Horizontal), 45° (Vertical) |
| Lens Mount | M12 |
| DNR | 3D DNR |
| WDR | Digital WDR |
| Day & Night Switch | IR-cut filter with auto-switching |
| Video & Audio | |
| Max. Resolution | 1080p, 1920 × 1080 |
| Frame Rate | Max. 15 fps; Self-Adaptive during network transmission |
| Video Compression | H.264 |
| Video Bit Rate | Quad HD, Full HD, HD, Standard. Adaptive bit rate. |
| Storage | |
| Local Storage | Supports microSD card (Up to 256 GB) |
| Cloud Storage | Supports EZVIZ CloudPlay storage (subscription required) |
| Network | |
| Wi-Fi Standard | IEEE 802.11 b, 802.11 g, 802.11 n |
| Frequency Range | 2.4 ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20 MHz |
| Security | 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK |
| Transmission Rate | 11b 11 Mbps, 11g 54 Mbps, 11n: 72 Mbps |
| Wi-Fi Pairing | AP paring |
| Protocol | EZVIZ Cloud Proprietary Protocol |
| Interface Protocol | EZVIZ Cloud Proprietary Protocol |
| Wired Network | RJ45 × 1 (10M / 100M Adaptive Ethernet Port) |
| General | |
| Dimensions | 88 × 88.2 × 119 mm (3.46 × 3.47 × 4.69 in) |
| Packaging | 103 × 103 × 186 mm (4.06 × 4.06 × 7.30 in) |
| Net Weight | 218 g (7.69 oz) |
| Operating Conditions | -10° to 45° C (14° to 113° F) Humidity 95% or less (non-condensing) |
| Power | |
| Power Supply | DC 5V / 1A |
| Power Consumption | Max. 5 W |
| In the box | |
| In the box | - H6c Camera |
| - Base | |
| - Screw Kit | |
| - Power Cable | |
| - Drill Template | |
| - Power Adapter | |
| - Quick Start Guide | |
| - Regulatory Information | |
| Certifications | |
| CE / UL / FCC / WEEE / REACH / RoHS / UKCA | |
H6c 2K⁺
| Specifications | |
|---|---|
| Model | CS-H6c-R100-8B4WF |
| Camera | |
| Image Sensor | F2.4 @ 1/3" Progressive Scan CMOS |
| Shutter Speed | Self-adaptive shutter |
| IR Night Vision Distance | Up to 10 m (33 ft) |
| Lens | 4 mm, viewing angle: 85° (Diagonal), 75° (Horizontal), 45° (Vertical) |
| Lens Mount | M12 |
| DNR | 3D DNR |
| WDR | Digital WDR |
| Day & Night Switch | IR-cut filter with auto-switching |
| Video & Audio | |
| Max. Resolution | 4MP, 2560 × 1440 |
| Frame Rate | Max: 20 fps; Self-Adaptive during network transmission |
| Video Compression | H.265 / H.264 |
| Video Bit Rate | Quad HD, Full HD, HD, Standard. Adaptive bit rate. |
| Storage | |
| Local Storage | Supports microSD card (Up to 256 GB) |
| Cloud Storage | Supports EZVIZ CloudPlay storage (subscription required) |
| Network | |
| Wi-Fi Standard | IEEE 802.11 b, 802.11 g, 802.11 n |
| Frequency Range | 2.4 ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20 MHz |
| Security | 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK |
| Transmission Rate | 11b 11 Mbps, 11g 54 Mbps, 11n: 72 Mbps |
| Wi-Fi Pairing | AP paring |
| Protocol | EZVIZ Cloud Proprietary Protocol |
| Interface Protocol | EZVIZ Cloud Proprietary Protocol |
| Wired Network | RJ45 × 1 (10M / 100M Adaptive Ethernet Port) |
| General | |
| Dimensions | 88 × 88.2 × 119 mm (3.46 × 3.47 × 4.69 in) |
| Packaging | 103 × 103 × 186 mm (4.06 × 4.06 × 7.30 in) |
| Net Weight | 218 g (7.69 oz) |
| Operating Conditions | -10° to 45° C (14° to 113° F) Humidity 95% or less (non-condensing) |
| Power | |
| Power Supply | DC 5V / 1A |
| Power Consumption | Max. 5 W |
| In the box | |
| In the box | - H6c 2K⁺ Camera |
| - Base | |
| - Screw Kit | |
| - Power Cable | |
| - Drill Template | |
| - Power Adapter | |
| - Quick Start Guide | |
| - Regulatory Information | |
| Certifications | |
| CE / UL / FCC / WEEE / REACH / RoHS / UKCA | |
H9c Dual 2K
| Specifications | |
|---|---|
| Model | CS-H9c-R100-8H33WKFL |
| Camera | |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Shutter Speed | Self-adaptive shutter |
| Lens | Upper Camera: 2.8mm@ F1.6, viewing angle: Diagonal 130°, Horizontal 108°, Vertical 56° Bottom Camera: 6mm@F1.6, viewing angle: Diagonal 62°, Horizontal 55°, Vertical 28° |
| PT Angle | Pan: 350°, Tilt: 80° |
| Minimum Illumination | 0.5 Lux @(F1.6, AGC ON), 0 Lux with IR (*data is obtained from EZVIZ laboratories) |
| Lens Mount | M12 |
| Day & Night | IR-cut filter with auto-switching |
| DNR | 3D DNR |
| WDR | Digital WDR |
| Black & White Night | 30m / 98ft |
| Video & Audio | |
| Max Resolution | 2304 × 1296 |
| Frame Rate | Max:15fps; Self-Adaptive during network transmission |
| Video Compression | H.265 / H.264 |
| H.265 Type | Main Profile |
| Video Bit Rate | Quad HD, Full HD, Hi Def, Standard. Adaptive bit rate. |
| Audio Bit Rate | Self-Adaptive |
| Network | |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20MHz |
| Transmission Rate | 11b 11 Mbps, 11g 54 Mbps, 11n: 150 Mbps |
| Wi-Fi Pairing | AP paring |
| Protocol | EZVIZ cloud proprietary protocol |
| Interface Protocol | EZVIZ cloud proprietary protocol |
| Wired Network | RJ45 × 1 (10M / 100M Adaptive Ethernet Port) |
| Security | WPA-PSK/WPA2-PSK |
| Functions | |
| Smart Alarm | AI-Powered Human Shape Detection / AI-Powered Vehicle Shape Detection / Motion Detection |
| Auto Tracking | Supports |
| Customized Alert Area | Supports |
| Two-way Talk | Supports |
| Preset Locations | Supports |
| General Function | Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark |
| Storage | |
| Local Storage | Supports microSD Card (Up to 512 GB) |
| Cloud Storage | Supports EZVIZ CloudPlay storage |
| General | |
| Operating Conditions | -30°C to 50°C ( -22 °F to 122 °F ) Humidity 95% or less (non-condensing) |
| IP Grade | Weatherproof Design |
| Power Supply | DC 12V/1.5A |
| Power Consumption | MAX. 12W |
| Dimensions | 145 × 116 × 142mm (5.71 × 4.57 × 5.59 inch) |
| Packaging Dimensions | 150 × 150 × 194mm (5.90 × 5.90 × 7.64 inch) |
| Weight | Net Weight: 668 g With Package: 960 g |
| In the box | |
| In the box | - H9c Camera |
| - Drill Template | |
| - Screw Kit | |
| - Waterproof Kit | |
| - Power Adapter | |
| - Regulatory Information | |
| - Quick Start Guide | |
| Certifications | |
| Certifications | CE / WEEE / RoHS / REACH |
H9c Dual 3K
| Specifications | |
|---|---|
| Model | CS-H9c-R100-8G55WKFL |
| Camera | |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Shutter Speed | Self-adaptive shutter |
| Lens | Fix Lens: 2.8mm@ F1.6, viewing angle: Diagonal 132°, Horizontal 110°, vertical 58° Pan&Tilt Lens: 6mm@F1.6, viewing angle: Diagonal 64°, Horizontal 56°, vertical 29° |
| PT Angle | Pan: 350°, Tilt: 80° |
| Minimum Illumination | 0.5 Lux @(F1.6, AGC ON), 0 Lux with IR (*data is obtained from EZVIZ laboratories) |
| Lens Mount | M12 |
| Day & Night | IR-cut filter with auto-switching |
| DNR | 3D DNR |
| WDR | Digital WDR |
| Black & White Night | 30m / 98ft |
| Video & Audio | |
| Max Resolution | 2880 × 1620 |
| Frame Rate | Max:15fps; Self-Adaptive during network transmission |
| Video Compression | H.265 / H.264 |
| H.265 Type | Main Profile |
| Video Bit Rate | Ultra-HD; Hi-Def; Standard. Adaptive bit rate. |
| Audio Bit Rate | Self-Adaptive |
| Network | |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20MHz |
| Transmission Rate | 11b 11 Mbps, 11g 54 Mbps, 11n: 150 Mbps |
| Wi-Fi Pairing | AP paring |
| Protocol | EZVIZ cloud proprietary protocol |
| Interface Protocol | EZVIZ cloud proprietary protocol |
| Wired Network | RJ45 × 1 (10M / 100M Adaptive Ethernet Port) |
| Security | WPA-PSK/WPA2-PSK |
| Functions | |
| Smart Alarm | AI-Powered Human Shape Detection / AI-Powered Vehicle Shape Detection / Motion Detection |
| Auto Tracking | Supports |
| Customized Alert Area | Supports |
| Two-way Talk | Supports |
| Preset Locations | Supports |
| General Function | Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark |
| Storage | |
| Local Storage | Supports microSD Card (Up to 512 GB) |
| Cloud Storage | EZVIZ CloudPlay storage |
| General | |
| Operating Conditions | -30°C to 50°C ( -22 °F to 122 °F ) Humidity 95% or less (non-condensing) |
| IP Grade | Weatherproof Design |
| Power Supply | DC 12V/1.5A |
| Power Consumption | MAX. 12W |
| Dimensions | 145 × 116 × 142mm (5.71 × 4.57 × 5.59 inch) |
| Packaging Dimensions | 150 × 150 × 194mm (5.90 × 5.90 × 7.64 inch) |
| Weight | Net Weight: 668 g With Package: 960 g |
| In the box | |
| In the box | - H9c Camera (x1) |
| - Drill Template (x1) | |
| - Screw Kit (x1) | |
| - Waterproof Kit (x1) | |
| - Power Adapter (x1) | |
| - Regulatory Information (x2) | |
| - Quick Start Guide (x1) | |
| Certifications | |
| Certifications | CE / UKCA/WEEE / RoHS / REACH |
